The TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch is perfect for home offices, small businesses, and remote workers who need simple, reliable network expansion with energy-efficient operation. This unmanaged desktop switch delivers hassle-free gigabit connectivity with advanced power-saving technology:
-
Plug and play simplicity requiring zero configuration for instant network expansion
-
5 Gigabit Ethernet ports providing high-speed connectivity for multiple devices
-
Green Ethernet technology reducing power consumption by up to 80% for eco-friendly operation
-
Compact desktop design fitting perfectly in home offices and small workspaces
-
Fanless operation ensuring silent performance ideal for quiet work environments
Key Features
-

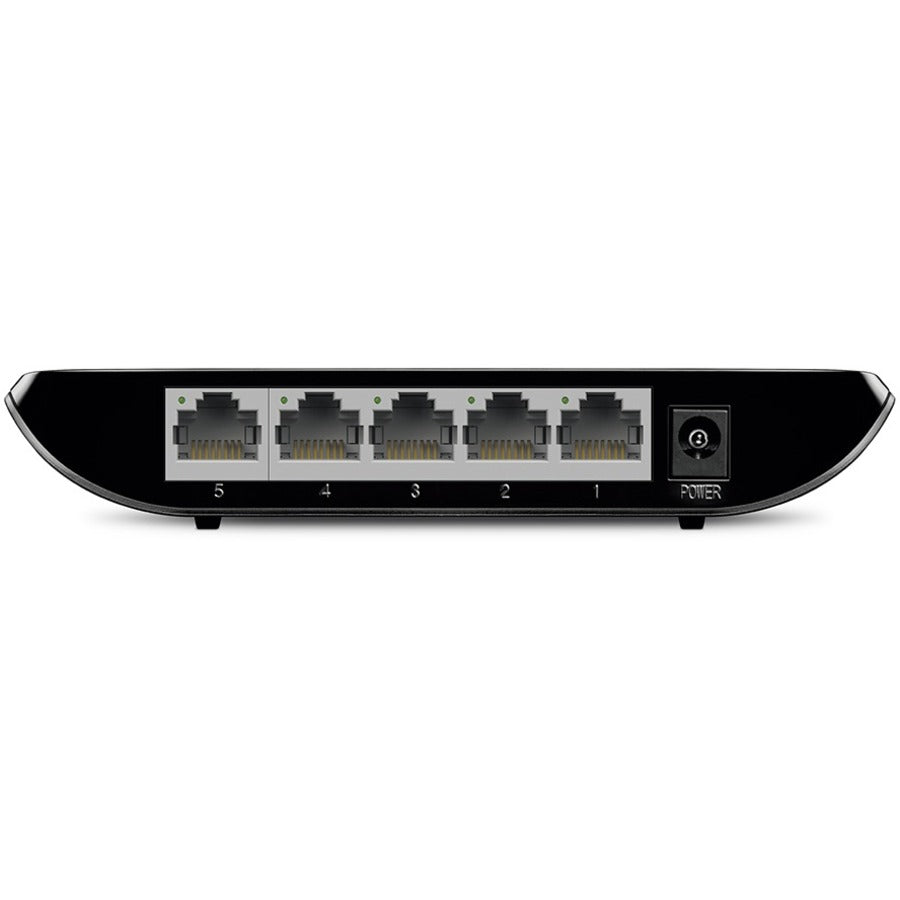

5 Auto-MDI/MDIX Gigabit ports supporting 10/100/1000 Mbps speeds
-
Green Ethernet technology with intelligent power management and energy saving
- True plug and play operation with automatic device detection and configuration
-
Compact desktop form factor with durable plastic housing
-
LED indicators showing power, link, and activity status for easy monitoring
-
Store-and-forward switching ensuring reliable data transmission
Technical Specifications
| Manufacturer |
TP-Link Technologies Co., Ltd |
| Model Number |
TL-SG1005D |
| Type |
5-Port Gigabit Desktop Switch |
| Port Configuration |
5 x 10/100/1000 Mbps Auto-Negotiation RJ45 ports |
| Switching Capacity |
10 Gbps |
| MAC Address Table |
2K MAC addresses |
| Switch Type |
Unmanaged with plug and play operation |
| Power Consumption |
Maximum 3.8W with Green Ethernet technology |
| Dimensions |
99 × 98 × 25 mm (3.9 × 3.9 × 1.0 in) |
| Power Supply |
External power adapter (5V/1A) |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Compatible Systems |
Home offices, small businesses, workgroups |
Target Use Cases
-
Home office expansion connecting multiple devices to a single network port
-
Small business networking providing additional ports for computers, printers, and devices
-
Gaming setups offering low-latency connections for gaming consoles and PCs
-
Media streaming supporting high-bandwidth requirements for smart TVs and streaming devices
-
Temporary network expansion for conferences, events, and mobile workstations
Green Ethernet Technology Benefits
-
Intelligent power management automatically adjusting power based on cable length and link status
-
Up to 80% power savings compared to conventional switches
-
Eco-friendly operation reducing environmental impact and electricity costs
-
Cooler operation extending device lifespan through reduced heat generation
Frequently Asked Questions
Q: What makes this switch truly plug and play?
A: The TP-Link TL-SG1005D requires absolutely no configuration - simply connect devices with ethernet cables and the switch automatically detects speeds, duplex modes, and optimizes connections. No software installation or setup wizards needed.
Q: How does Green Ethernet technology reduce power consumption?
A: Green Ethernet technology intelligently detects cable length and adjusts power output accordingly. It also puts unused ports into sleep mode and optimizes power delivery based on actual network traffic, achieving up to 80% energy savings.
Q: Can this switch handle gigabit speeds on all ports simultaneously?
A: Yes. This gigabit desktop switch provides full 1000 Mbps speeds on all 5 ports simultaneously with a total switching capacity of 10 Gbps, ensuring no bottlenecks when multiple devices are transferring data at high speeds.
Q: Is this suitable for gaming applications?
A: Absolutely. The unmanaged switch provides wire-speed performance with store-and-forward switching architecture, eliminating packet collisions and ensuring low-latency connections perfect for online gaming and real-time applications.
Q: What devices can I connect to this switch?
A: You can connect any device with an Ethernet port including computers, laptops, gaming consoles, smart TVs, printers, NAS devices, and wireless access points. The auto-MDI/MDIX feature eliminates the need for crossover cables.
Q: Does this switch require any ongoing maintenance?
A: No maintenance required. This plug and play switch operates maintenance-free with fanless design and automatic features. The LED indicators provide visual status monitoring, and the robust design ensures reliable long-term operation.
TP-Link TL-SG1005D 5-port gigabit desktop switch with Green Ethernet technology, plug and play operation, and energy-efficient design for home offices.
