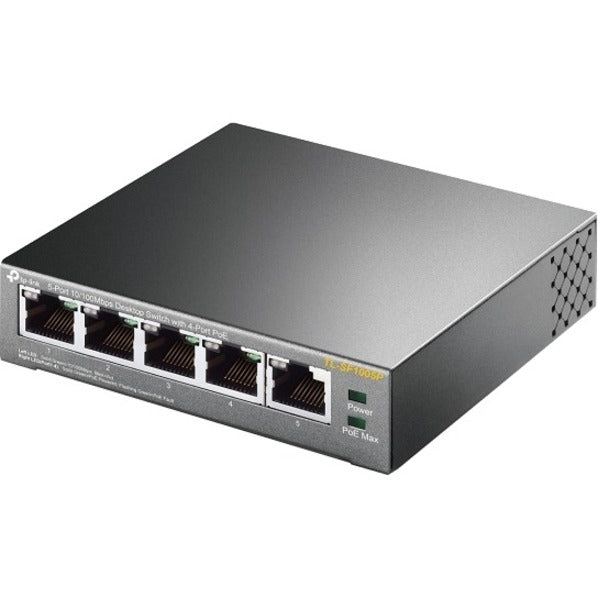

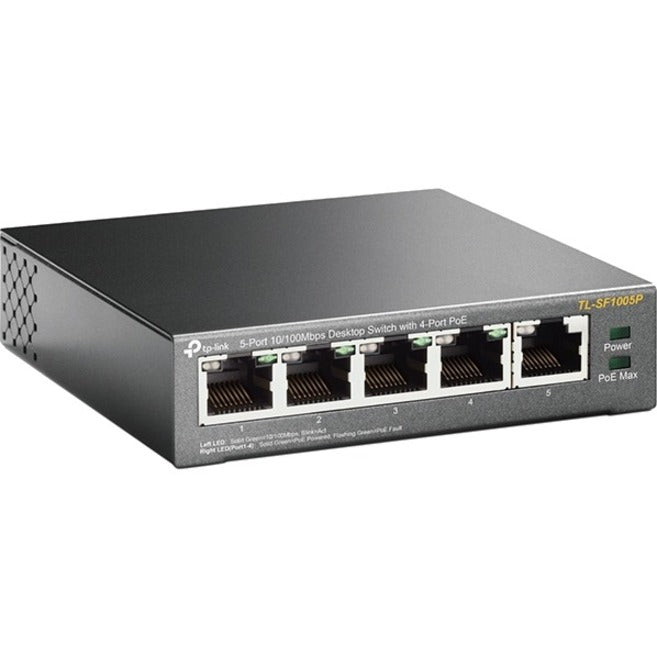

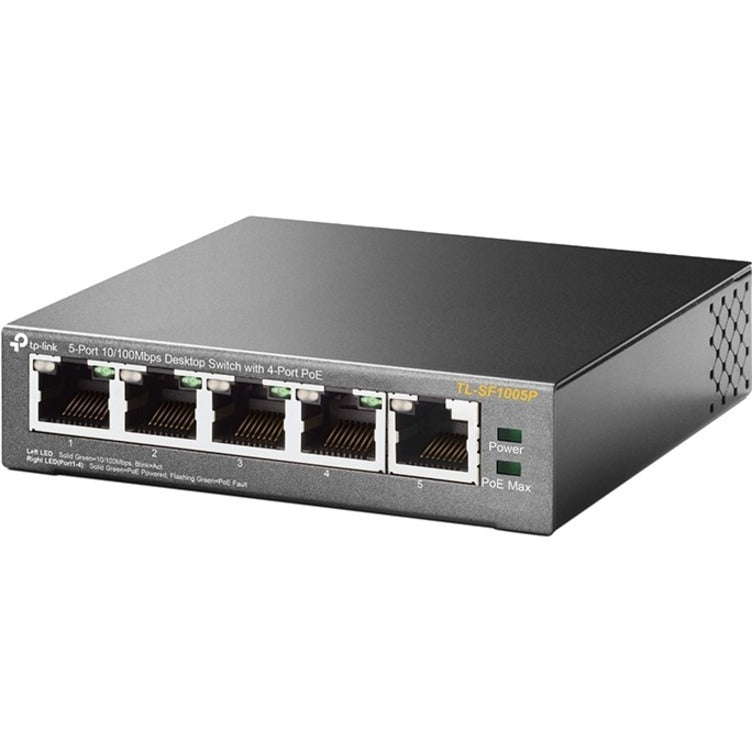

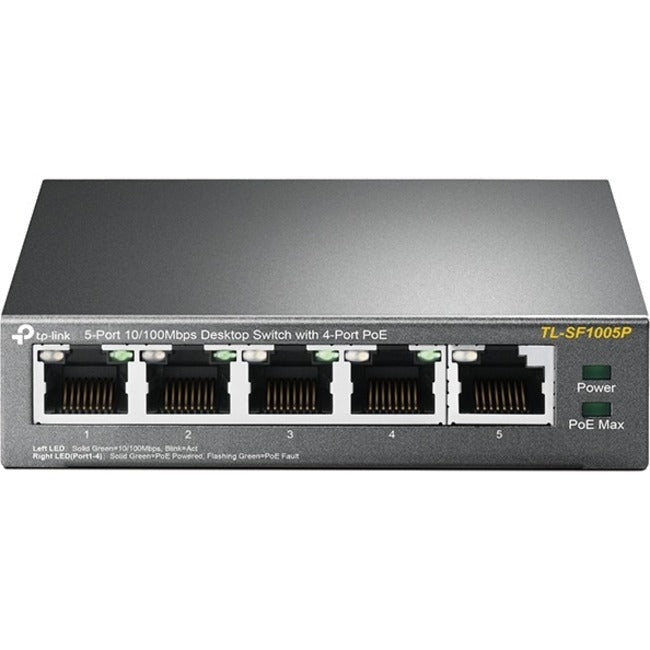

TP-Link TL-SF1005P - 5-Port Fast Ethernet PoE Switch - Limited Lifetime Protection
What This Product Does
TL-SF1005P is a 5 10/100Mbps ports unmanaged switch that requires no configuration and provides 4 PoE (Power over Ethernet) ports. It can automatically detect and supply power with all IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network to where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.
Power over Ethernet
4 of the 5 Auto-Negotiation RJ45 ports (Port 1 to Port 4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs).
Overload Arrangement
TL-SF1005P has the priority function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 58W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.
Port Priority Function
Priority (port-1=port-2=port-3>port-4): This function will help to ensure the normal operation of the system, it means Port 4 will be cut off when all total PoE PDs power consumption exceed 58W. For an example, Port 1, 2 and 4 is using 15.4W (maximum power for per port is 15.4W); the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 12W, and then the system will cut off the power of Port 4 because of the overloaded power, this means Port 1, 2 will use 15.4W, and Port3 will use 12W, no power will be supplied to Port 4.
Easy To Use
TL-SF1005P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-Link's TL-SF1005P 5-Port 10/100Mbps Desktop Switch with 4-Port PoE is an ideal choice for expanding your home or office network.
More from the Manufacturer
- Flexible 5-Port PoE Configuration: 4x PoE+ (802.3at/af) 10/100/1000 Mbps RJ45 ports providing up to 30W per port and total PoE power budget of 65W, together w/ 1x Non-PoE Port for stable connections.
- Plug and Play: Easy setup with no software installation or configuration needed.
- Extend Mode: Up to 250m data and power PoE transmission range under Extend Mode, ideal for surveillance system (Speed will be downgraded to 10 Mbps).
- Priority Mode: Support Priority mode for ports 1-2, guarantee high quality of video or voice data transmission.
- Sturdy Metal Case: Durable metal casing and desktop/wall-mounting design are well-suited for different environments.
- Reliable and Quiet: IEEE 802.3X flow control provides reliable data transfer and a fanless design ensures quiet operation.
- Limited Lifetime Warranty: Backed by our industry-leading limited lifetime warranty and free 24/7 technical support, you can work with confidence.
Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Material: Metal
Brand Name: TP-Link
Form Factor: Desktop
Manufacturer: TP-LINK Technologies Co., Ltd
Product Model: TL-SF1005P
Product Name: 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
Manufacturer Part Number: TL-SF1005P
Manufacturer Website Address: http://www.tp-link.com/us
Package Contents:

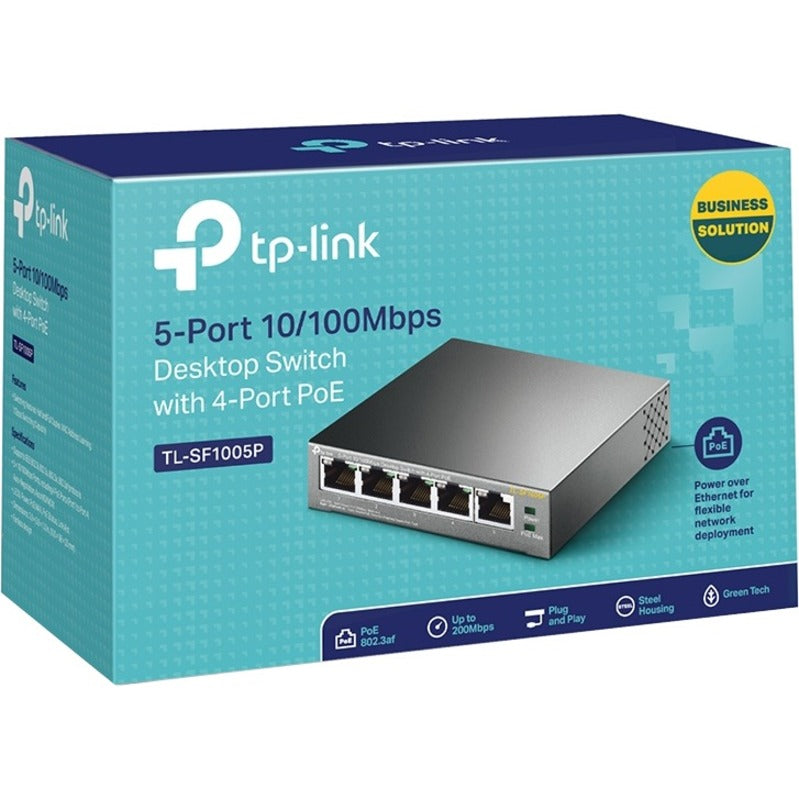

- 5-Port 10/100Mbps Desktop Switch with 4-Port PoE+
- Power Adapter
- User Guide
Limited Warranty: 5 Year
