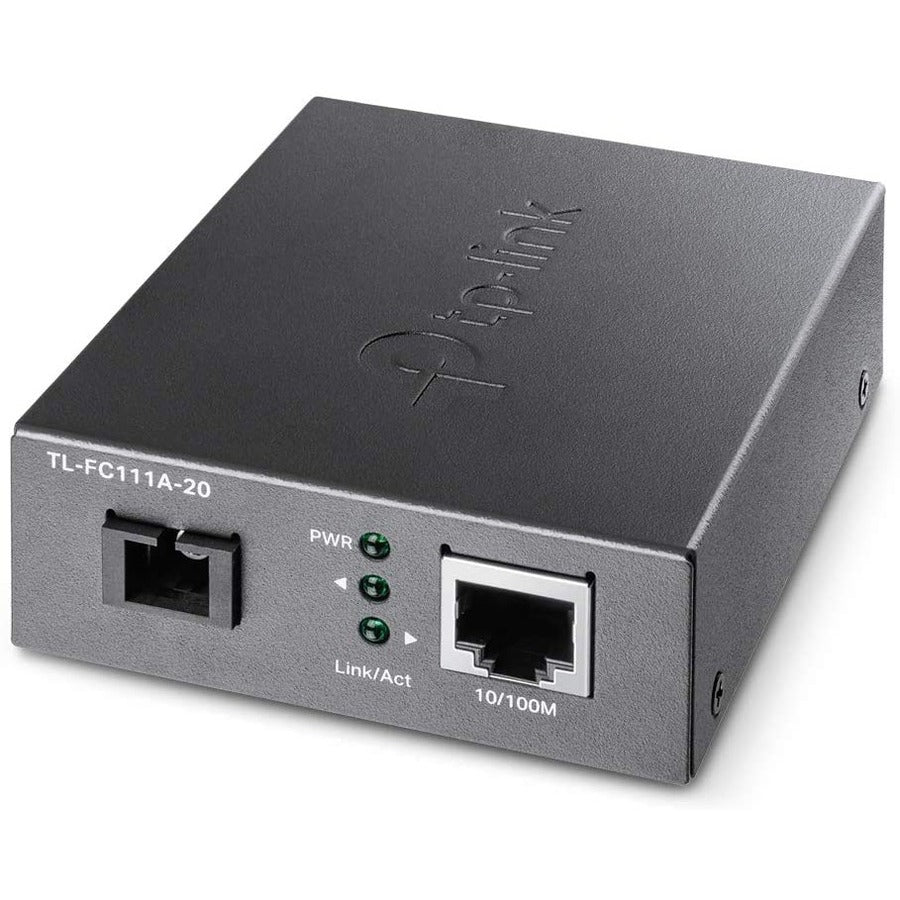

This WDM media converter is perfect for network administrators, telecom engineers, and system integrators who need cost-effective long-distance network connectivity. Our TP-Link TL-FC111A-20 delivers:
-
20km range transmission enabling extended fiber optic connectivity
-
RJ45 port to SC fiber port conversion seamlessly bridging copper and fiber networks
-
10/100 Mbps operation providing reliable Fast Ethernet performance
-
Single fiber transmission reducing fiber infrastructure costs
Key Features
-
Wavelength Division Multiplexing enabling bidirectional transmission over single fiber
-
20km transmission distance for long-range network connections
-
Auto-negotiation support for 10/100 Mbps ethernet speeds
-
SC fiber connector providing secure single-mode fiber connections
-
Compact desktop design ideal for office and remote installations
Technical Specifications
| Manufacturer |
TP-Link |
| Model Number |
TL-FC111A-20 |
| Product Type |
10/100 Mbps WDM Media Converter |
| Ethernet Interface |
RJ45 port (10/100Base-TX) |
| Fiber Interface |
SC fiber port (single-mode) |
| Transmission Range |
20km maximum distance |
| Technology |
Wavelength Division Multiplexing (WDM) |
| Data Rate |
10/100 Mbps auto-negotiation |
| Fiber Type |
Single-mode fiber (SMF) |
| Power Supply |
External power adapter included |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Applications |
Campus networks, metropolitan networks, point-to-point links |
Frequently Asked Questions
Q: How does this WDM media converter differ from standard fiber ethernet switches?
A: The TL-FC111A-20 WDM media converter uses wavelength division multiplexing to transmit bidirectional data over a single fiber, while fiber ethernet switches typically require separate transmit and receive fibers, making this solution more cost-effective for point-to-point connections.
Q: What's the advantage of the 20km range capability?
A: The 20km range enables long-distance connections without signal repeaters, perfect for connecting remote buildings, campus networks, or metropolitan area networks where standard copper network cable solutions would be impractical due to distance limitations.
Q: Is this compatible with existing network infrastructure?
A: Yes. The RJ45 port connects directly to standard ethernet equipment, while the SC fiber port works with existing single-mode fiber infrastructure. This makes it an ideal solution for integrating with network switch fiber optic systems.
Q: What type of fiber cable is required for the SC fiber port?
A: The SC fiber port requires single-mode fiber cables with SC connectors. The WDM technology allows bidirectional transmission over a single fiber strand, reducing the fiber infrastructure requirements compared to traditional dual-fiber solutions.
TP-Link TL-FC111A-20 WDM media converter: 10/100 Mbps RJ45 to SC fiber conversion with 20km range for cost-effective long-distance networking.
