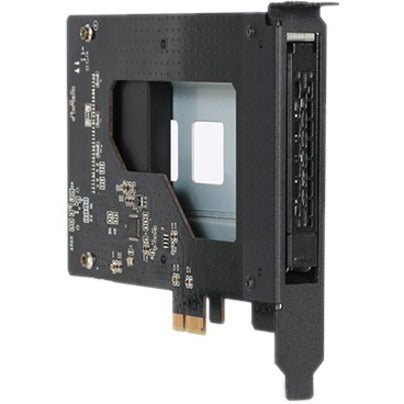

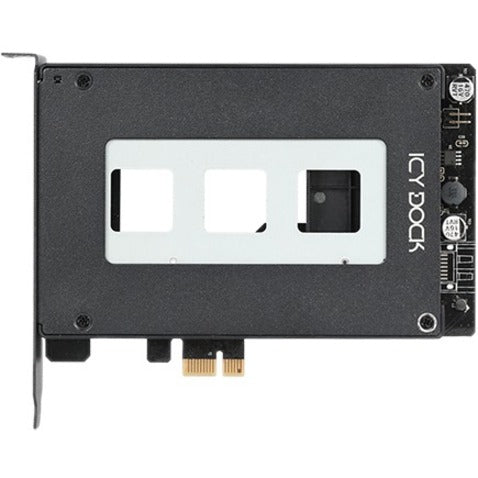

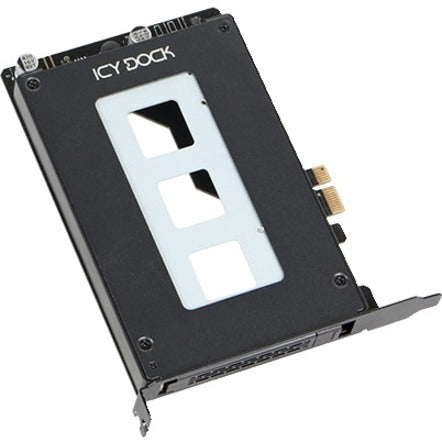

Icy Dock ToughArmor MB839SP-B Drive Slot Adapter - PCI Express 2.0 x1 Host Interface Internal - Black

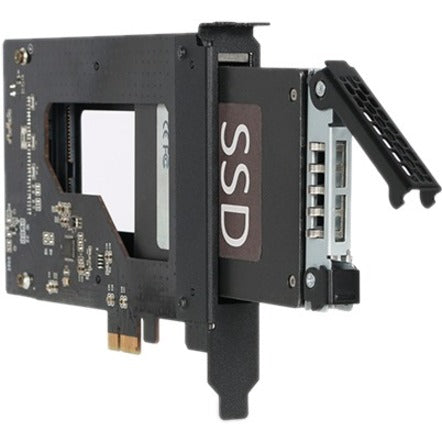

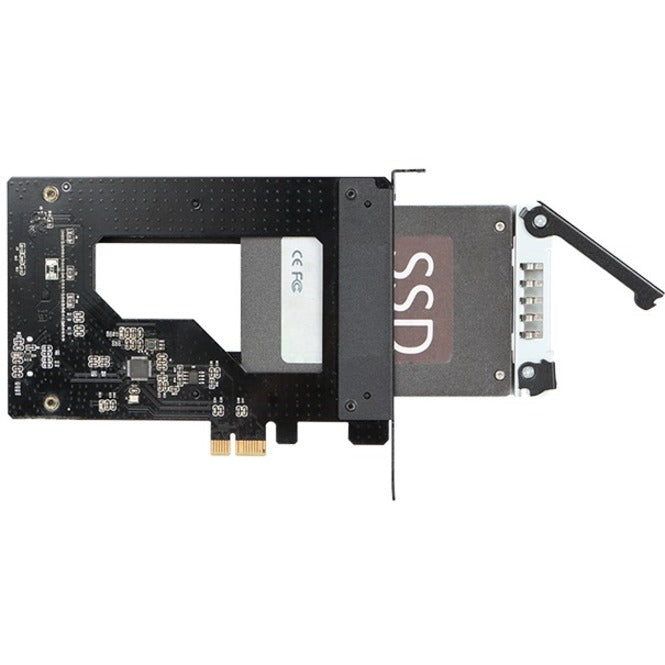

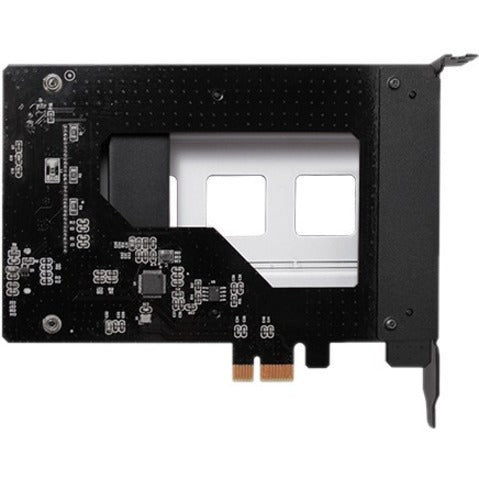

Introducing the ToughArmor MB839SP-B rugged removable drive bay for 2.5" SATA hard drives and SSDs (9.5mm height). Utilizing the standard PCIe 2.0 interface and taking only a single PCIe expansion slot, the MB839SP-B gives you an additional hot-swappable drive bay for hard disk drives (HDDs) and solid state drives (SSDs) even when your computer does not have an open SATA port or empty drive bay. Because the single PCIe port handles both power and data, there's no additional clutter from SATA data and power cables. Fully supports hot-swapping drives with its removable drive tray.
Convenient Hot Swap Support
MB839SP-B adds full hot-swap support over the PCIe 2.0/3.0 interface, allowing you to add or remove drives in seconds without having to shut down the computer or open the case. Hot-swap supports prevents downtime when upgrading storage or replacing a failed drive, and allows a technician to work more efficiently. Hot-Swap ready connector rated for 10,000 insertion / removal cycles allows drives to be installed, removed, and replaced without shutting down the system.
Efficient Storage Solution

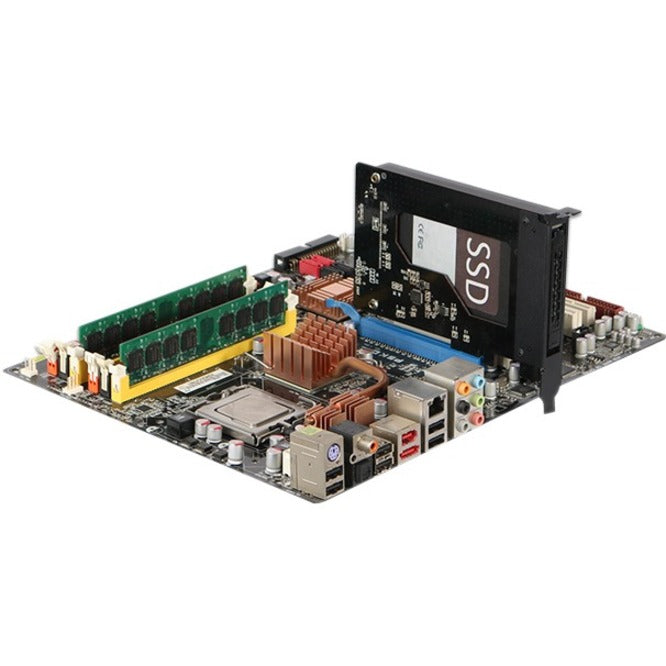

Add an additional HDD or SSD to your desktop computer by utilizing your unused PCIe expansion slots. Using the PCIe interface lets you exceed your computers usual drive limitations by giving you an extra removable SSD/HDD drive bay.
ToughArmor MB839SP-B is designed for the PCIe 2.0 and 3.0 single-channel (x1) interface, and for maximum compatibility, it's also compatible with PCIe x4, x8, and x16 full-length PCIe slots.
The Protection You Need
Ruggedized full-metal chassis, tray, and mounting bracket help to ensure a long product life, and further aid in heat dissipation. An anti-vibration mechanism built into the chassis reduces noise and protects against environmental damage.

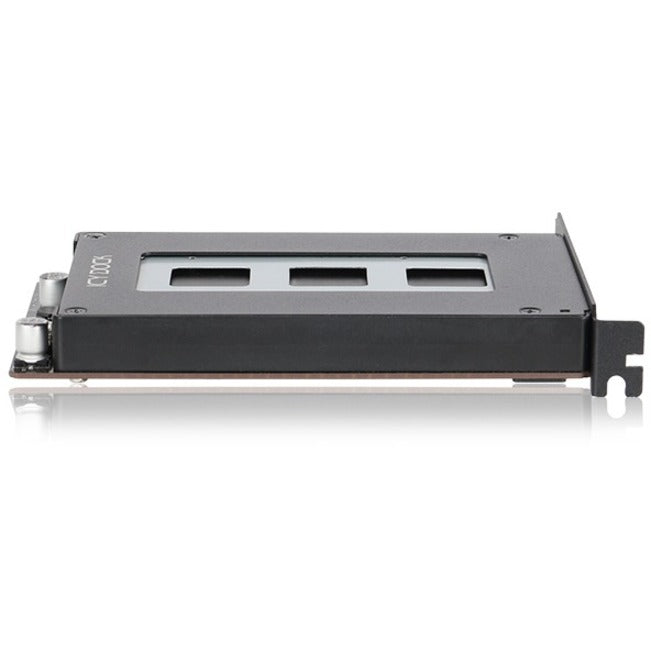

Large ventilation holes on both sides of the enclosure work with your systems cooling system to keep your drives cool under load. The single-slot width is narrow enough to enable cooling even when multiple bays are installed side-by-side.

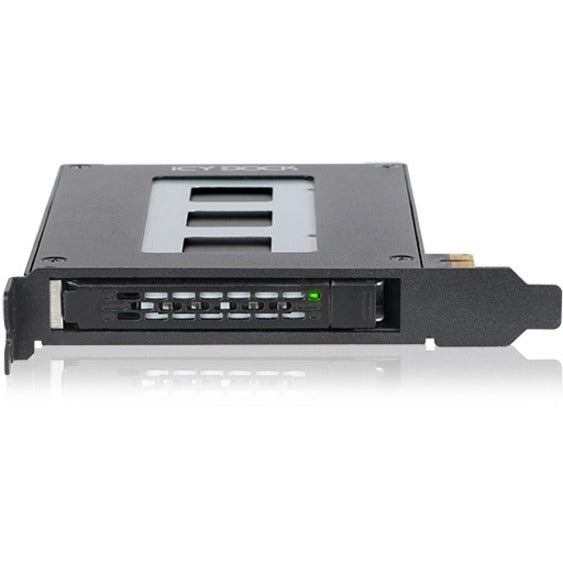

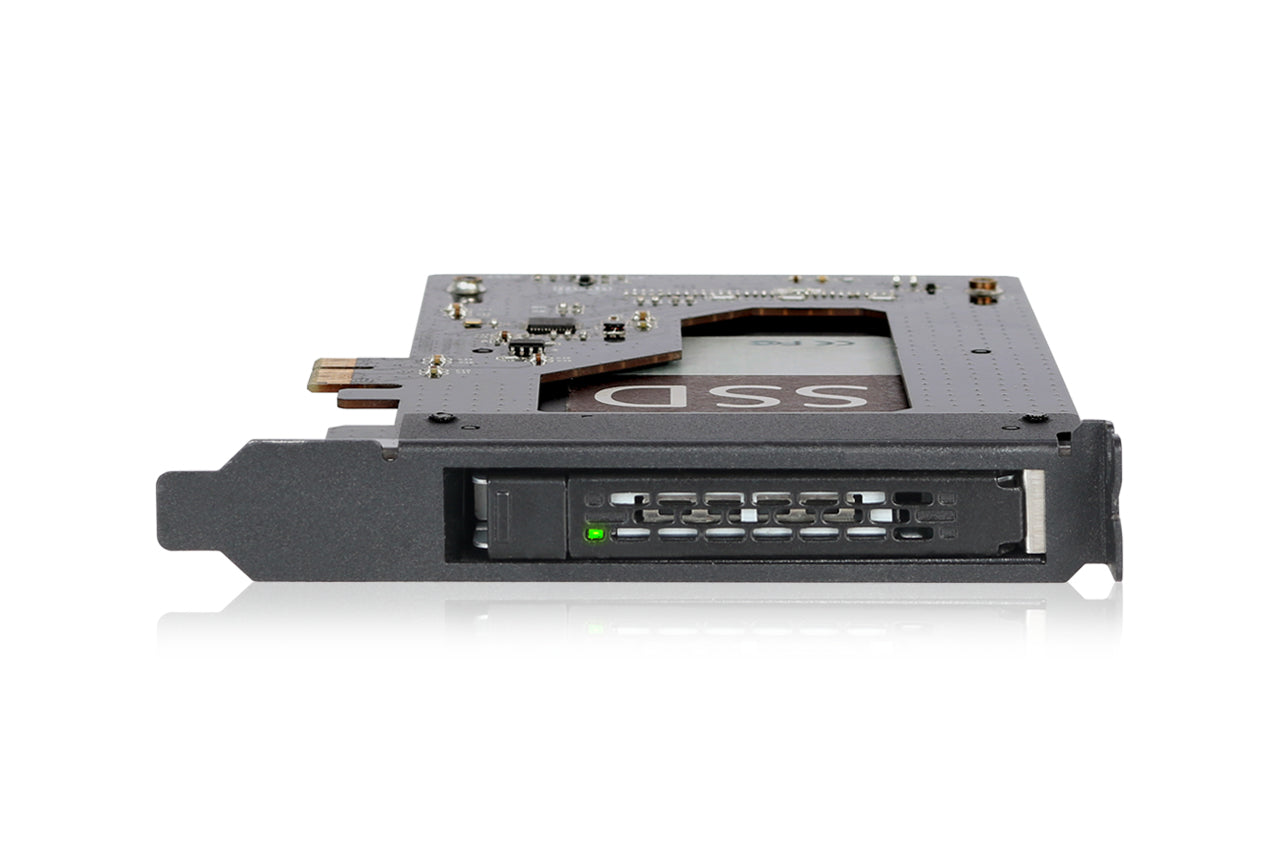

MB839SP-B is equipped with a built-in LED on the tray which can show drive power/access LED light.
For easier drive status monitoring, connect your computers/server drive power/access LED light to the 2-pin HDD status header (cable not included), to easily see when your drive is in use from the front of the computer.
Packed with Features
Utilizing the PCIe 2.0 interface allows for a huge speed improvement over older PCs and Mac Pro 2008-2012 models which only natively support SATA II speeds, allowing you to take advantage on the huge speed improvements of modern SSDs.
Utilizing the PCIe 2.0 interface provides power and data transfer at the same location which ultimately reduce cable clutter in a PC case.
- Compatible with Mac Pro 2008-2012 models with no driver required
- Fits 1x SATA hard drive or SSD from 7mm to 9.5mm in height
- Uses PCIe 2.0 x1 interface, also supports installation into PCIe 2.0 and PCIe 3.0 x1, x4, x8, and x16 slots

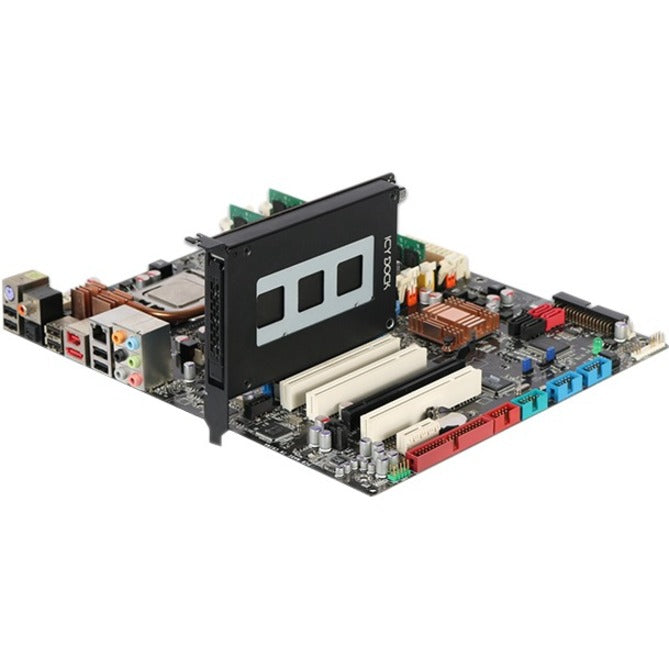

- Installs into single-width PCIe expansion slot
- PCIe interface provides both power and data transfer which ultimately reduce cable clutter
- Narrow design allows for multiple bays to be installed side-by-side in a modular design
- Includes full-height PCIe faceplate to protect against buildup of dust
- Strong hot-swap connector rated for a minimum of 10,000 insertion/removal cycles
- Eagle-hook lock system keeps the drive secure in the enclosure

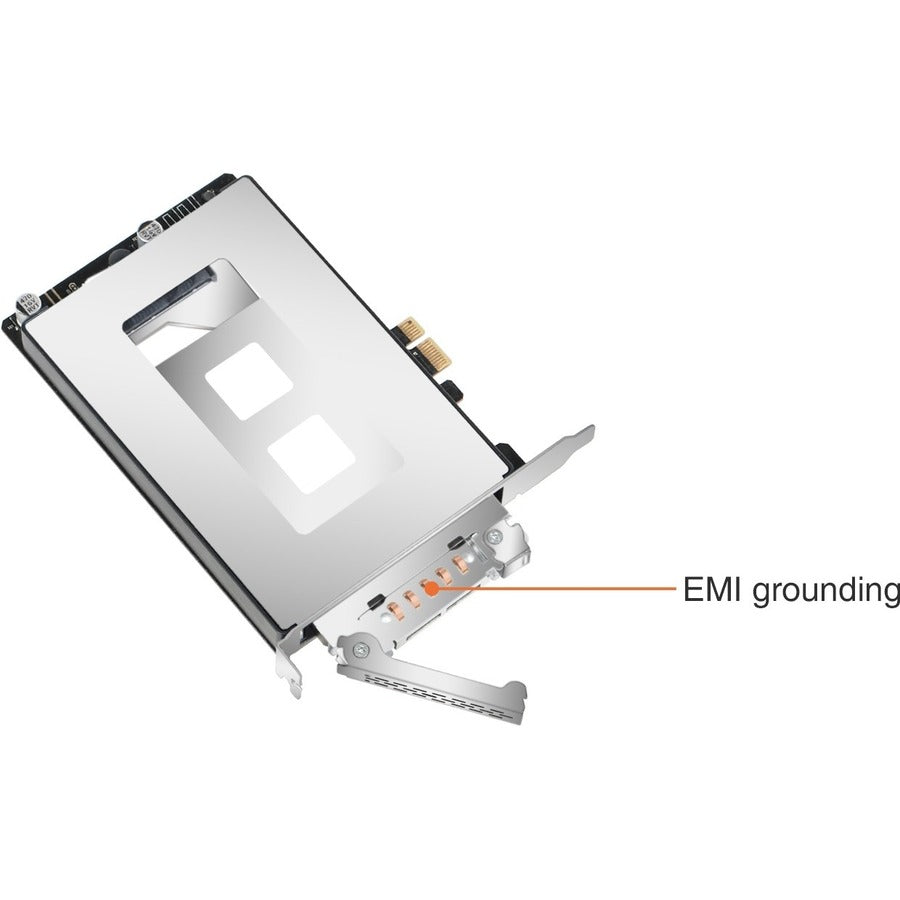

- EMI Grounding - protects hard drives from electrical damage
Product Type: Drive Slot Adapter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Color: Black
Product Material: Acrylonitrile Butadiene Styrene (ABS)
Brand Name: Icy Dock
Form Factor: Internal
Manufacturer: Icy Dock
Product Model: MB839SP-B
Product Name: 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slots
Product Line: ToughArmor
Manufacturer Part Number: MB839SP-B
Manufacturer Website Address: http://www.icydock.com
Package Contents:
- 2.5" SATA SSD/HDD to PCIe 2.0 x1 Hot-Swap Mobile Rack for PCIe Expansion Slots
- User Manual
- Screws
Limited Warranty: 3 Year
