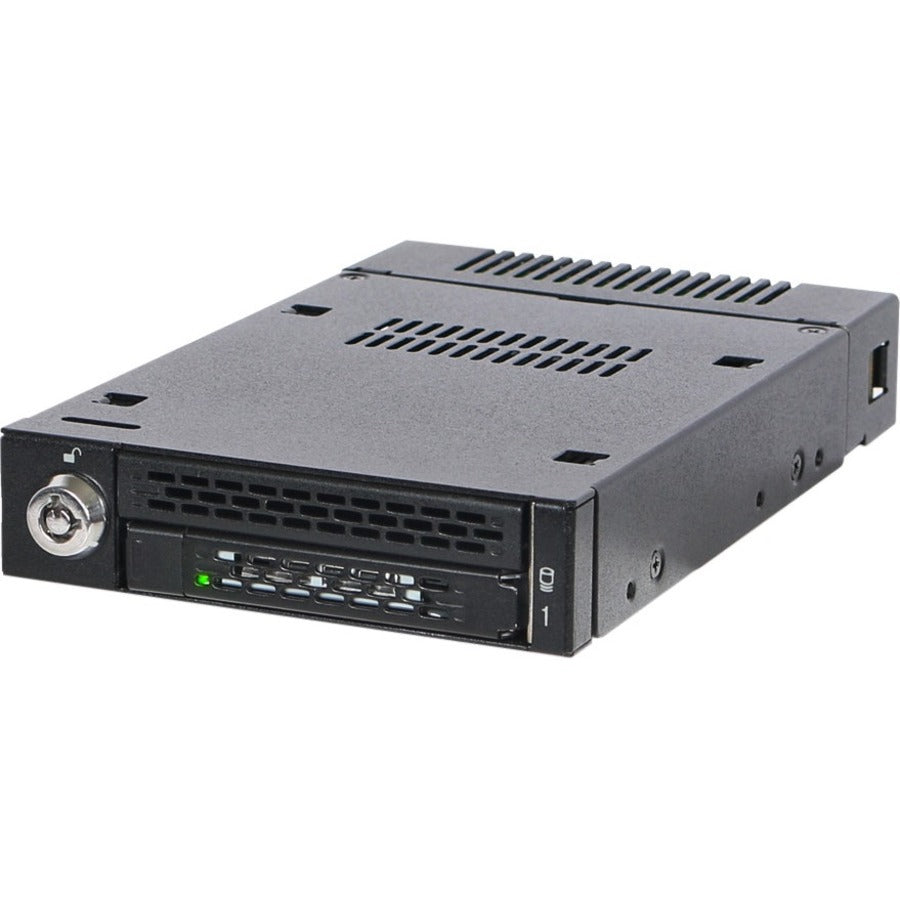

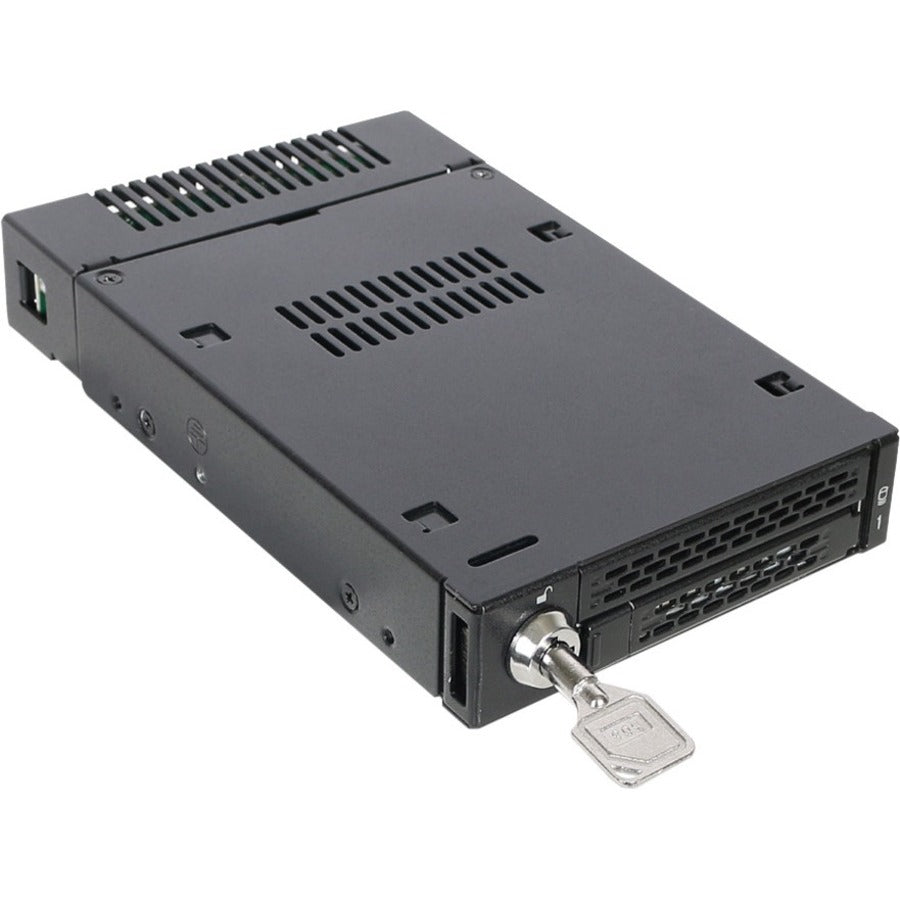

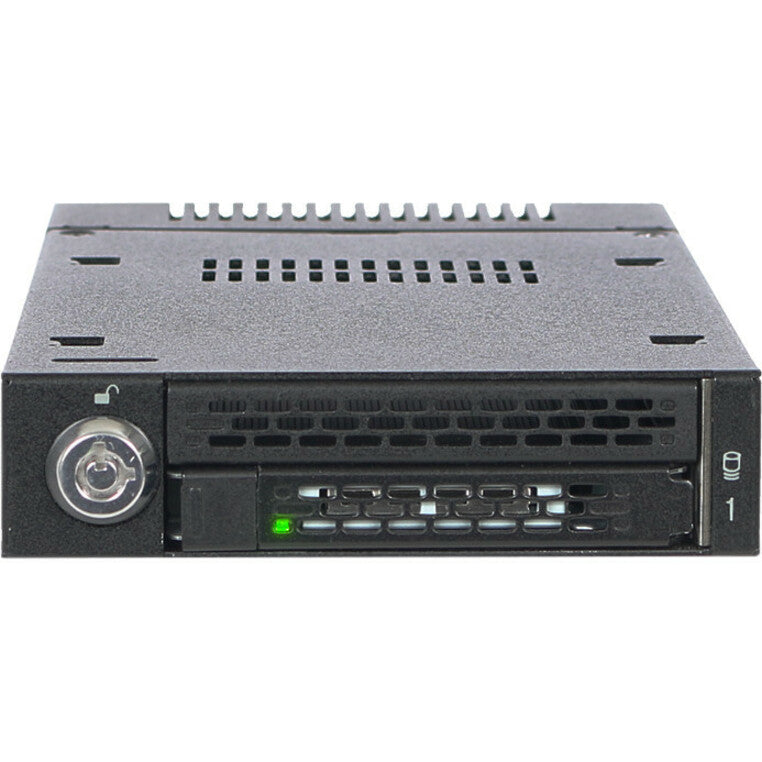

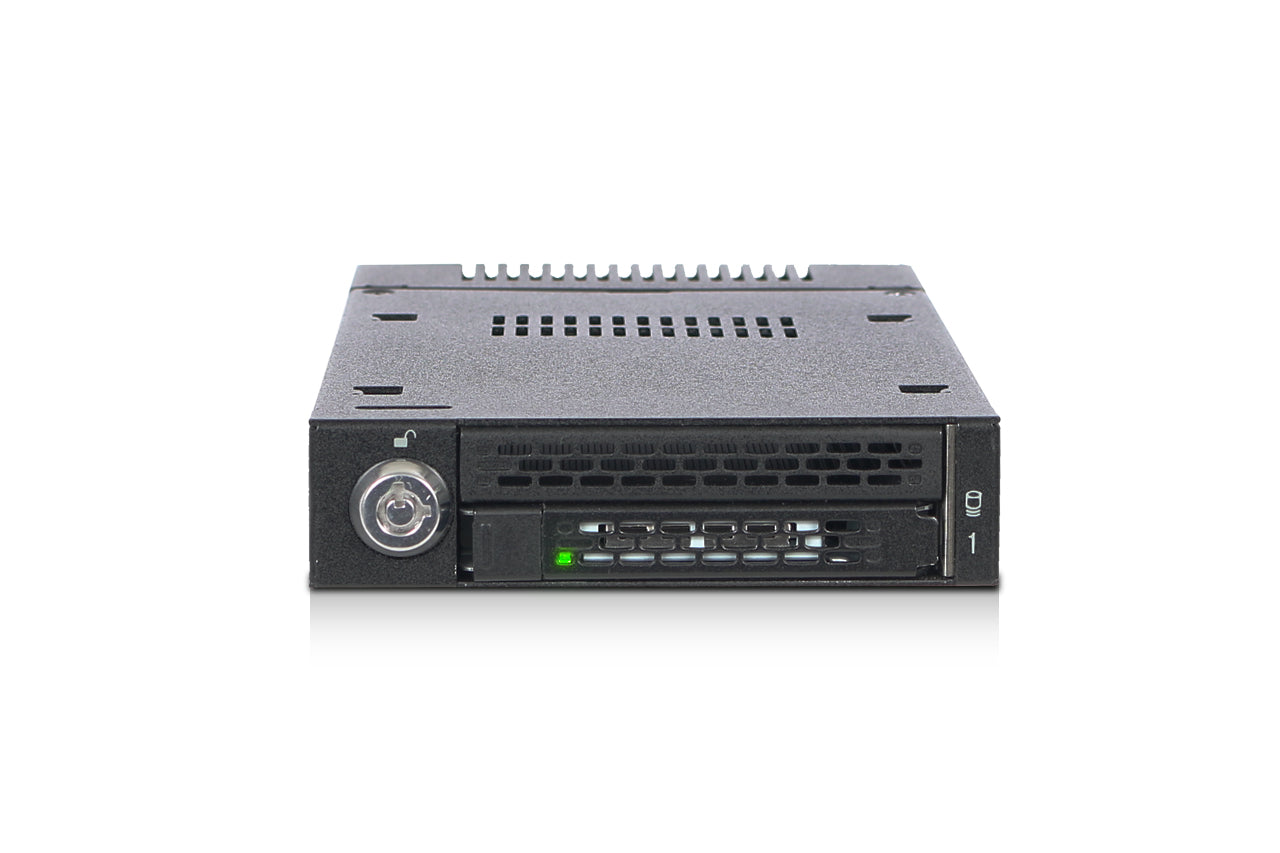

Icy Dock MB833M2K-B Drive Enclosure for 3.5 M.2

Icy Dock MB833M2K-B Drive Enclosure for 3.5" M.2, PCI Express NVMe - Mini-SAS HD Host Interface Internal - Black

Now Using SFF-8643

Introducing ToughArmor MB833M2K-B, the world's first ruggedized M.2 PCIe NVMe SSD tool-less removable rack. Your M.2 NVMe SSD no longer requires to be installed on a motherboard or a riser card with a tiny screw, but it can now be installed and accessed from the front of your computer without any tools! The ToughArmor MB833M2K-B comes with a patent-pending tool-less M.2 drive installation design which will alleviate the pain that many users experience when installing M.2 drives and offer easy drive maintenance and system upgrading. The ToughArmor MB833M2K-B supports blazing-fast PCIe x4 transfer speed up to 32Gb/s via MiniSAS HD (SFF-8643) and accepts all standard M.2 drives lengths from 30mm to 110mm (2230, 2242, 2260, 2280, 22110). In addition, while working together with numbers of ventilation holes around the enclosure, each drive tray is equipped with a high efficiency aluminum heat sink to ensure all the M.2 NVMe SSDs remains within their optimal temperature even when it is under full load.

Ultimately, your drives will be well protected within this full metal drive enclosure and a barrel key lock to prevent any unauthorized physical access.

M.2 Drive is No Longer Hidden

A typical M.2 drive is installed on a motherboard or a riser card and secured by a tiny screw, and it can be a very troublesome and time-consuming process to install or remove the drive physically. However, with ICY DOCK's ToughArmor MB833M2K-B, M.2 drives are brought into the front of a computer case and makes M.2 NVMe SSD installation and removal a more
straightforward and efficient process.

State-of-art Tool-less M.2 Drive Installation

M.2 PCIe NVMe SSD drives are most often inserted at a 45-degree angle then screwed down onto the motherboard. When using ToughArmor MB833M2K-B, the user can simply place the M.2 SSD in the drive tray, adjust the drive locker to the correct length per M.2 drive type, and push down the drive to lock in place. The whole process will only take users less than five seconds to complete, avoiding the hassle of tiny, easy-to-lose screws while bringing a more efficient and innovative way in installing M.2 drives.

Being a truly tool-less drive installation, installing and removing of the extra-large high-efficiency aluminum heatsink does not require any tools as well. Simply push your thumbs down against the two buttons located at the underside of the tray and the heat sink will simply pop out for you to remove. To install it back, you simply cover the tray with the heatsink and with a little downward force, it will snap right back onto the tray.

EMI Grounding Technology

Grounding your M.2 is very important through many swaps, to ensure your data and drive are always safe. Without grounding, when swapping drives, there is a high possibility that there may be static shocks, possibly damaging the data on the drive. With our innovative M.2 drive installation design, the adjustable M.2 locker act as a ground and once the M.2 locker clips into the SSD screw hole, the drive will be grounded by the tray and the housing of the enclosure. The grounded connector design protects your drive from static electrical surge, ensuring your data is always safe during drive swapping.

Full Drive Length Support

This innovative adjustable M.2 locker slider accommodates all standard M.2 PCIe NVMe SSD drive length including 2230 (30mm), 2242 (42mm), 2260 (60mm), 2280 (80mm), and 22110 (110mm), making this drive tray universal to all drive length and future-proofing the extra-long M.2 drive 22110(110mm).

• Fits 1x M.2 NVMe SSD of all lengths, 30mm (2230), 42mm (2242), 60mm (2260), 80mm (2280), and 110mm (22110)


• Adjustable drive locker holds all length drives securely


• Tool-less drive installation design for easy drive maintenance and system upgrading


• Installs into any standard external 3.5" device bay or floppy bay

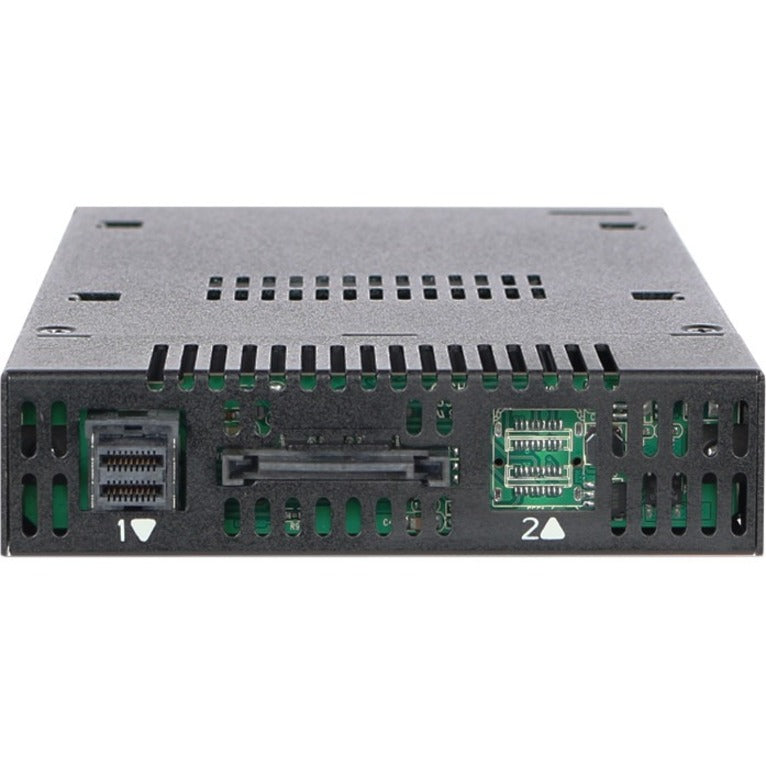

• Uses a miniSAS HD port (SFF-8643) to connect, requires NVMe host


• Supports the full NVMe bandwidth specification of 32 Gbps


• Ruggedized full-metal enclosure meeting flammability requirements


• Integrated extra-large high-efficiency heat sink and ample ventilation for excellent passive cooling


• 2-segment key lock for additional physical security


• Eagle-hook tray latch securely holds the tray inside the enclosure

Product Type: Drive Enclosure
Environmentally Friendly: Yes
Environmental Certification: REACH
Compatible Drive Bay Width: 3.5"
Product Color: Black
Product Material: Plastic
Brand Name: Icy Dock
Form Factor: Internal
Manufacturer: Icy Dock
Product Model: MB833M2K-B
Product Name: M.2 PCIe NVMe SSD Mobile Rack for External 3.5" Drive Bay
Manufacturer Part Number: MB833M2K-B
Manufacturer Website Address: http://www.icydock.com
Package Contents:

• M.2 PCIe NVMe SSD Mobile Rack for External 3.5" Drive Bay
• User Manual
• Screws
• Thermal Pads
• Keys
