Icy Dock ToughArmor MB699VP-B V2 Drive Enclosure for 5.25" PCI Express NVMe, U.2 - SFF-8612 OCuLink Host Interface Internal - Black
The ToughArmor MB699VP-B V2 is a Ruggedized Quad Bay Removable U.2 NVMe SSD Enclosure supporting PCIe 4.0 and fetching up to 64Gb/s data transfer rates through OCuLink (SFF-8612) interface. It is made out of heavy-duty full-metal construction and equipped with removable U.2 drive trays that simplify the time-consuming drive installation/removal process for easy drive maintenance. As PCIe 4.0 NVMe U.2 SSDs are prone to high temperatures under heavy load, the built-in dual 40x20mm cooling fans keep the drives at optimal temperatures and let you adjust the fan speed through the 3-speed fan control located in the rear of the enclosure.
Superior PCIe 4.0 Performance
To unlock the full potential of the PCIe 4.0 U.2 NVMe SSD, each drive bay uses a dedicated OCuLink (SFF-8612) connector to achieve the bandwidth rate of 64Gb/s, which is two times faster than PCIe 3.0 and 10 times faster than SATA standards. The extremely fast IOPS (Input/output operations per second) makes it an ideal solution for data-intensive applications such as autonomous driving, mobile automation, real-time forecast, film editing, and military computing.
Removable Drive Tray Design

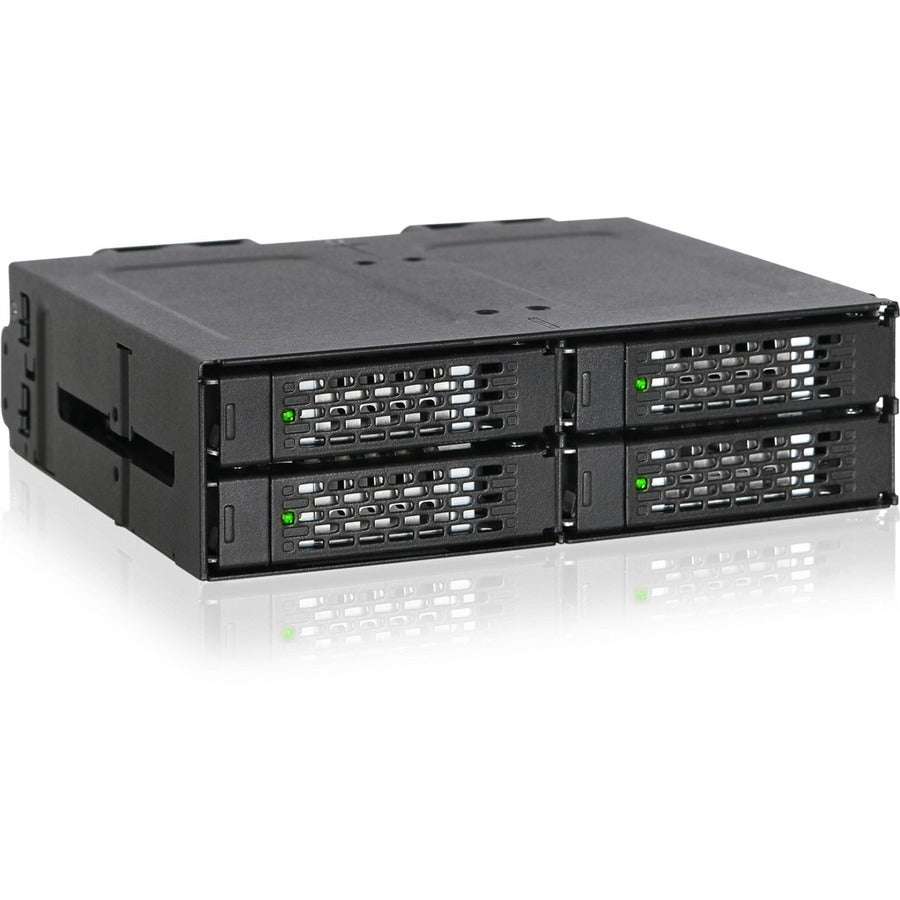

Typically, NVMe U.2 SSDs are installed inside the computer case, which can be tough to reach when it requires maintenance. With the ToughArmor MB699VP-B V2, your drives are brought to the frontal 5.25" optical drive bay, where the U.2 SSDs can be easily accessed, making drive maintenance more efficient and straightforward process. The removable drive trays support any standard U.2 SSD from 5mm to 15mm drive height.
Maximizing Cooling Performance

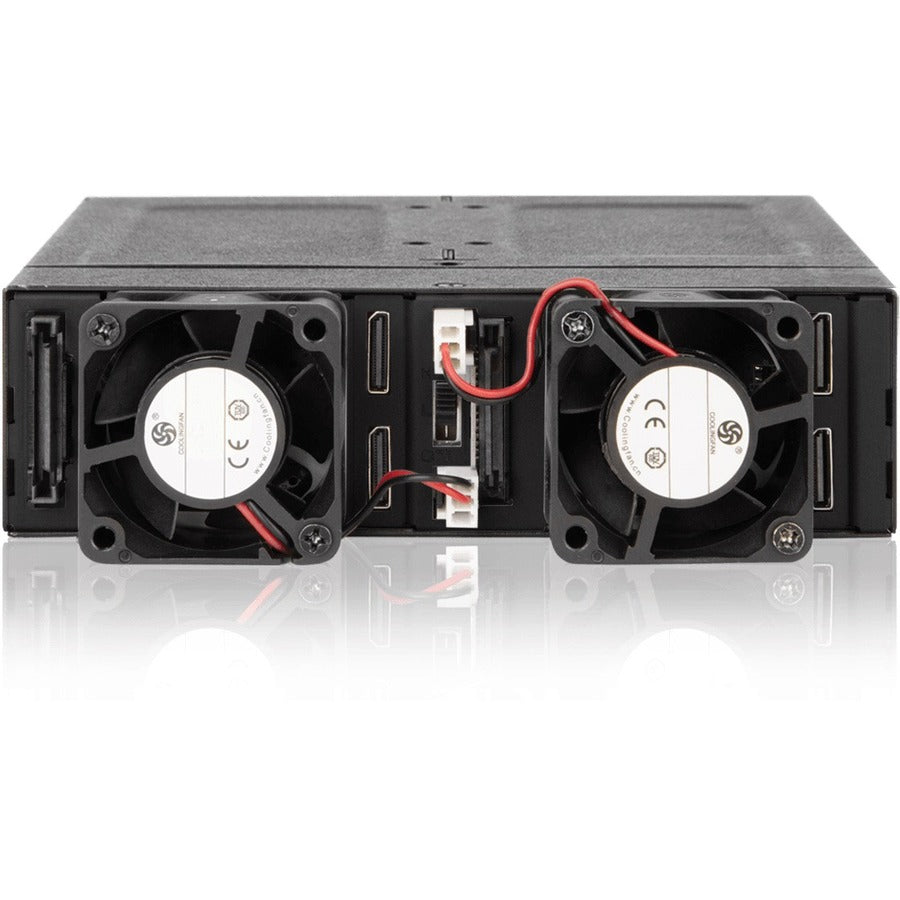

Built-in with the dual 40x20mm cooling fans, the heat generates by U.2 SSD is further dispersed through the intelligently place ventilation holes throughout the entire enclosure. The dual cooling fans come with three fan speed settings: High, Low, and off. The user can choose the appropriate fan speed option to keep the drives at optimal operating temperatures.
EMI Grounding Technology
Grounding your drives are essential as swapping drives without the proper grounding may lead to hardware damage due to static shocks. With our innovative EMI Grounding Technology, once the drive is screwed onto the drive tray, the drive will be in a constant grounded state throughout the tray, housing, and computer system to ensure your drives are protected from static electrical surges safe during swapping.
ToughArmor Protection
Ensuring the enclosure can be relied upon for many years, the ToughArmor MB699VP-B V2 is capable of holding up in the harshest environment. It comes equipped with rugged, heavy-duty full-metal protection throughout the entire device and tray, making it perfect for industrial devices that may require a flammability rating. The outstanding build quality is suitable for various enterprise systems such as military and law enforcement industries, in-vehicle computers, and manufacturing conditions such as embedded control and factory automation systems.
Packed with Features
An LED status light built into the tray lets you know your drive is powered up and in use. The LED will shut off when no drives are installed to save power.
- Supports 4x PCIe NVMe U.2 SSD, up to 15mm drive height
- Installs into any standard external 5.25" optical drive bay
- Uses 4x OCuLink (SFF-8612) to connect, pin-out defined by SFF-9402 Rev 1.1
- Supports PCIe 4.0 specification with transfer rates up to 64Gb/s per drive bay
- Ruggedized full-metal enclosure meeting flammability requirements
- Removable tray system for easy maintenance
- Dual high-performance 40x20mm cooling fan with three fan speed setting (High, Low, Off)
- The Eagle-hook tray latch securely holds the drive tray inside the enclosure
- EMI Grounding - protects SSDs from electrical damage
- Industry-leading 3-year warranty against all defects
Product Type: Drive Enclosure
Environmentally Friendly: Yes
Environmental Certification: RoHS
Compatible Drive Bay Width: 5.25"
Cooling Fan: Yes
Product Color: Black
Product Material: Metal
Brand Name: Icy Dock
Form Factor: Internal
Manufacturer: Icy Dock
Product Model: MB699VP-B V2
Product Name: ToughArmor MB699VP-B V2
Product Line: ToughArmor
Manufacturer Part Number: MB699VP-B V2
Manufacturer Website Address: http://www.icydock.com
Package Contents:
- ToughArmor MB699VP-B V2
- User Manual
- Drive ID Plugs
- Screws
Limited Warranty: 3 Year
Weight (Approximate): 1.94 lb
