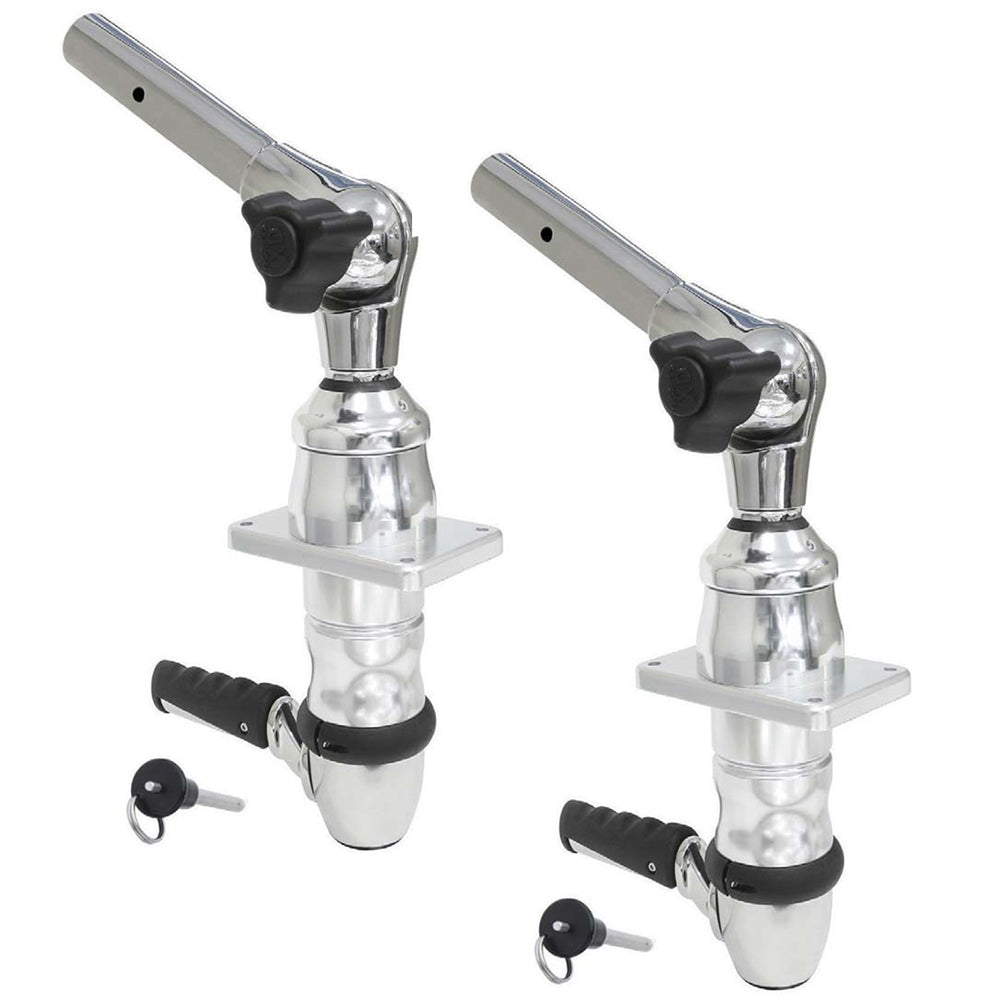

XD Top Mount
For use on sport fishing boats up to 40 feet.
Features:
- Unique invertible Tigress handle design for use on both soft and hard tops over 2” thick
- Accepts all Tigress XD 1-1/2” butt diameter outriggers and XD 1-1/8” butts using adapter
- Fits Tigress and other industry standard 4” x 6” mounting plates (four 5/16” diameter fasteners)
- Extreme-duty 316 Stainless Steel and anodized aluminum and sealed construction with UV protection
- 24 adjustable/locking system positions (15° increments) featuring Tigress XD 316 Stainless Steel design
- 19 upper-arm angle/locking positions (10° increments) using Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
- Tigress XD 316 Stainless Steel detent design with ambidextrous horizontal stops
- Large 3-lobe UV ergonomic knob with integral detent feature when changing outrigger elevation
- Ergonomic 316 Stainless Steel mirror-polished lever design with inverting ability for extra hand clearance on the thickest tops.
- User friendly underside lever actuation, with 8 optional indexable set-up positions
- Standard ¼” diameter locking stainless steel push-in-pin for outriggers
- Fits through all standard 3” diameter mounting plates and hard top holes
- Sold as pair
- 3-Year Limited Warranty
Manufacturer Part Number: 88850
