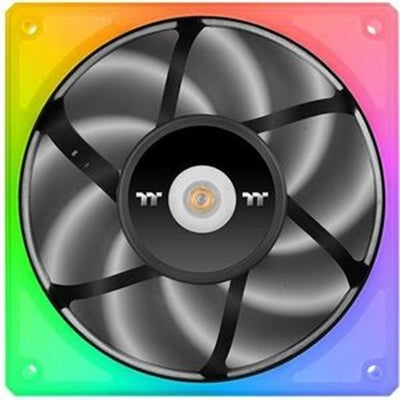

Thermaltake SWAFAN 120 EX INFINITY ARGB Sync 120mm Case Fan
The Thermaltake SWAFAN 120 EX INFINITY ARGB is a premium 120mm case fan designed for builders seeking silent, efficient cooling with customizable RGB lighting. This single-pack ARGB fan features interchangeable fan blades that let you switch between standard and reverse configurations, adapting airflow direction to your case layout without purchasing additional fans. With a hydraulic bearing system, PWM speed control, and MagForce 2.0 cabling, it delivers reliable performance at 58.13 CFM airflow while maintaining whisper-quiet operation between 500–2,000 rpm. Perfect for radiator mounting, case ventilation, or silent PC builds.
Key Features
- Interchangeable standard and reverse fan blades for flexible airflow configuration
- Hydraulic bearing design reduces noise and extends fan lifespan
- ARGB LED lighting with 3-pin connector for synchronized RGB control
- PWM speed control via 4-pin connector (500–2,000 rpm range)
- High static pressure (2.86 mmH2O) suitable for radiator and case mounting
- MagForce 2.0 cabling for secure, tool-free installation
- Includes mounting screws for radiators and PC cases
- Lubricant included for maintenance and durability
Technical Specifications
| Specification |
Value |
| Manufacturer |
Thermaltake |
| Model |
SWAFAN 120 EX INFINITY ARGB Sync |
| Part Number |
CL-F264-PL12SW-A |
| Fan Size |
120mm |
| Color |
Black |
| Airflow |
58.13 CFM |
| Static Pressure |
2.86 mmH2O |
| RPM Range |
500–2,000 rpm |
| Fan Connector |
4-pin PWM |
| LED Connector |
3-pin ARGB |
| Bearing Type |
Hydraulic |
| Included Accessories |
Fan, reverse blades, mounting screws, radiator screws, lubricant |
Frequently Asked Questions
What is the difference between standard and reverse fan blades?
The interchangeable blades allow you to configure airflow direction without buying a second fan. Standard blades push air in one direction; reverse blades pull from the opposite side, letting you optimize intake and exhaust configurations for your PC case layout.
Can I use this fan on a radiator?
Yes. With 2.86 mmH2O static pressure, this 120mm ARGB fan is suitable for both case mounting and radiator applications. The included radiator screws and MagForce 2.0 cabling make installation straightforward.
How do I sync the RGB lighting?
The 3-pin ARGB connector links to your motherboard's RGB header or a compatible RGB controller. Use your system's RGB software (ASUS Aura, MSI Dragon Center, etc.) to synchronize lighting with other ARGB components.
Is this fan quiet?
The hydraulic bearing design minimizes noise while maintaining durability. Operating at 500–2,000 rpm with PWM control, you can adjust fan speed to balance cooling performance and acoustic output for silent PC builds.
