Description
- 140mm
- 1400 RPM (1000 RPM w/ LNC Cable) 51.15 CFM / 86.90 m3/h
- Hydraulic
- 28.1 dBA (22.1 dBA w/ LNC Cable)

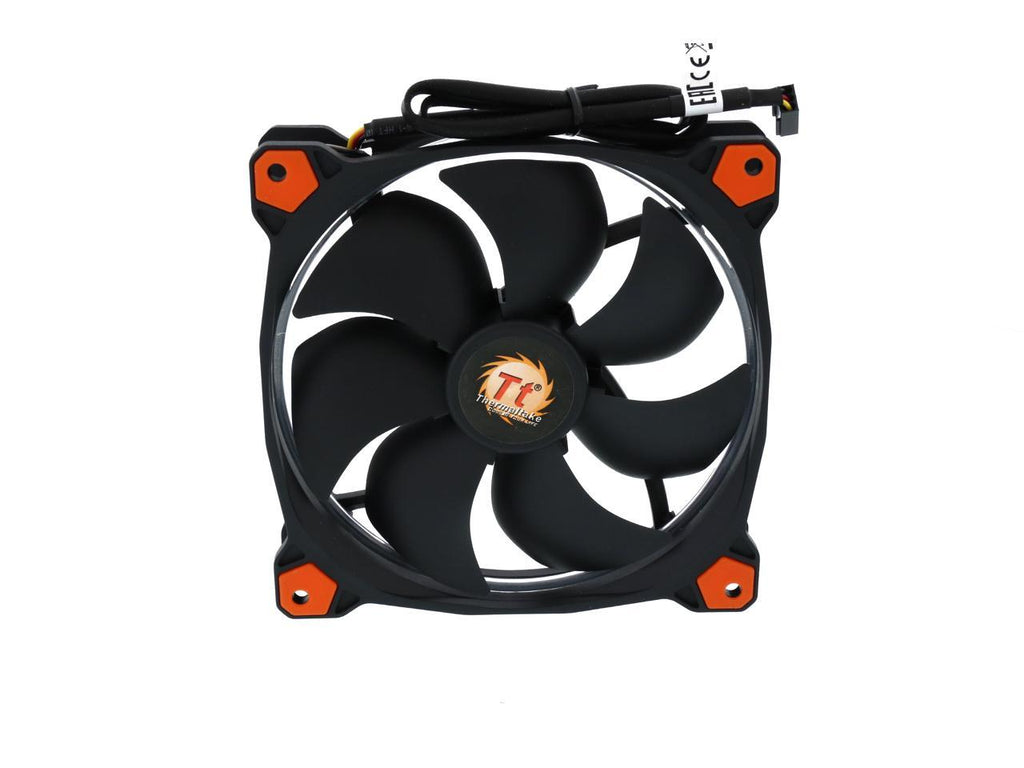

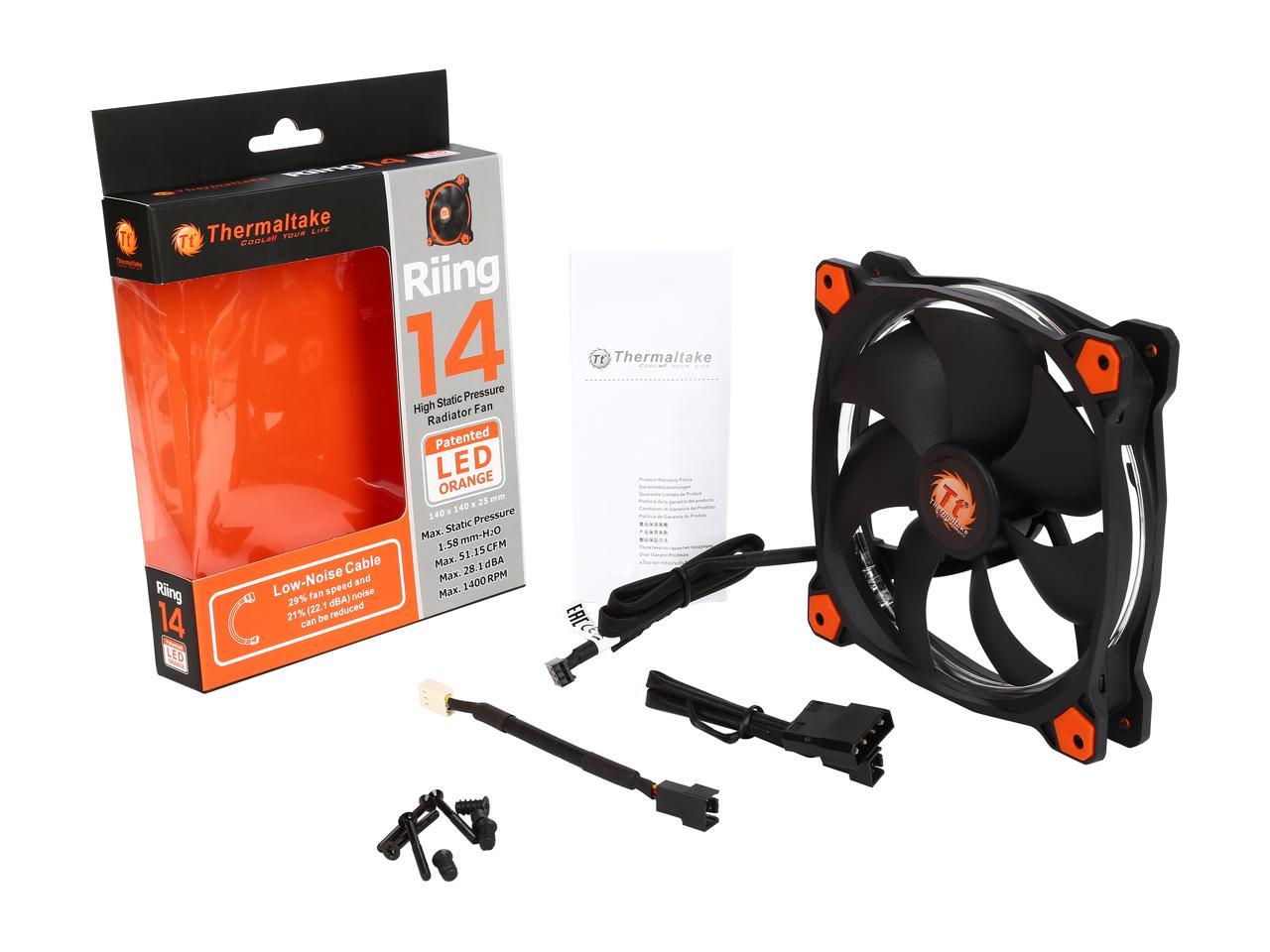

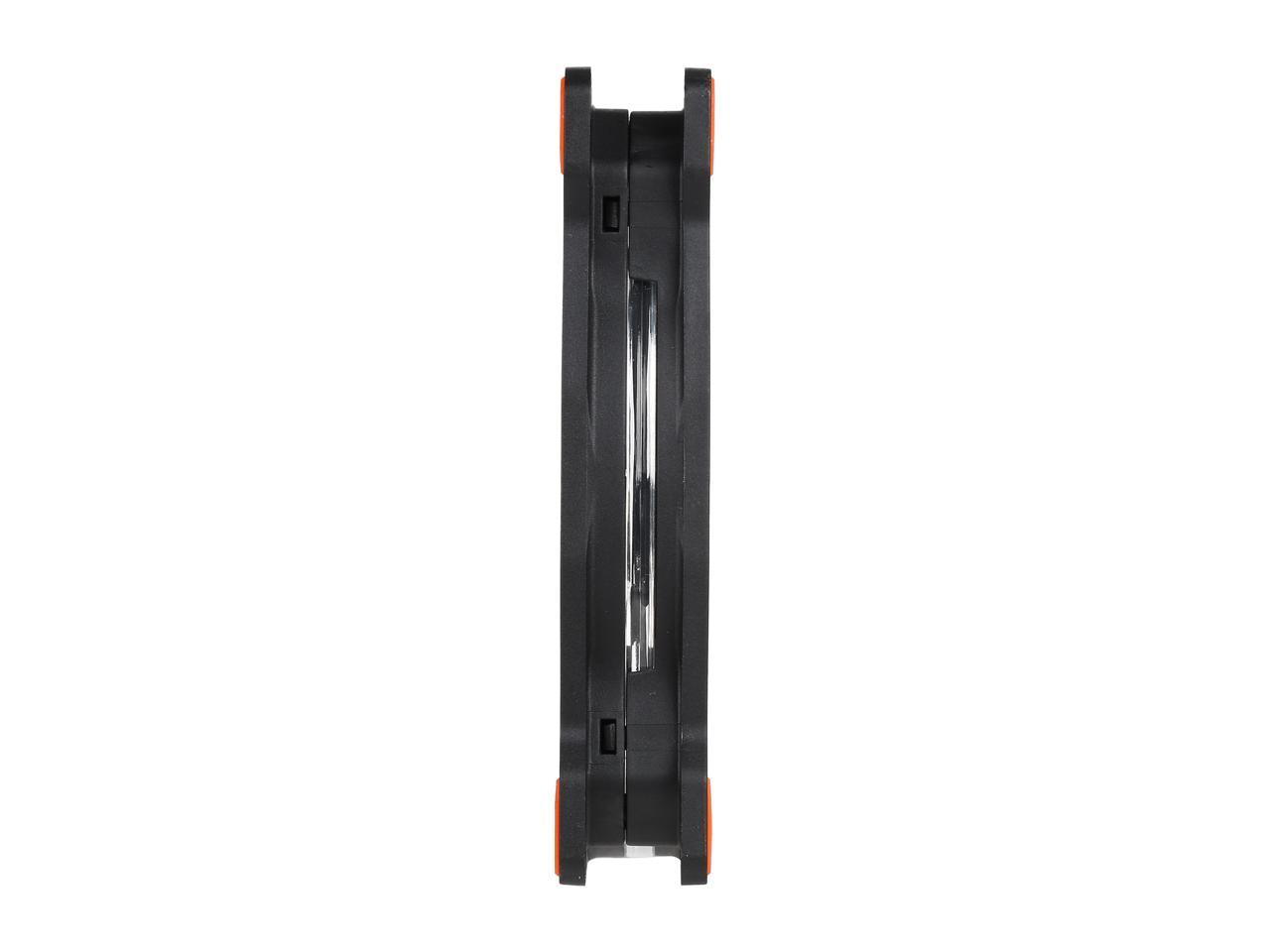

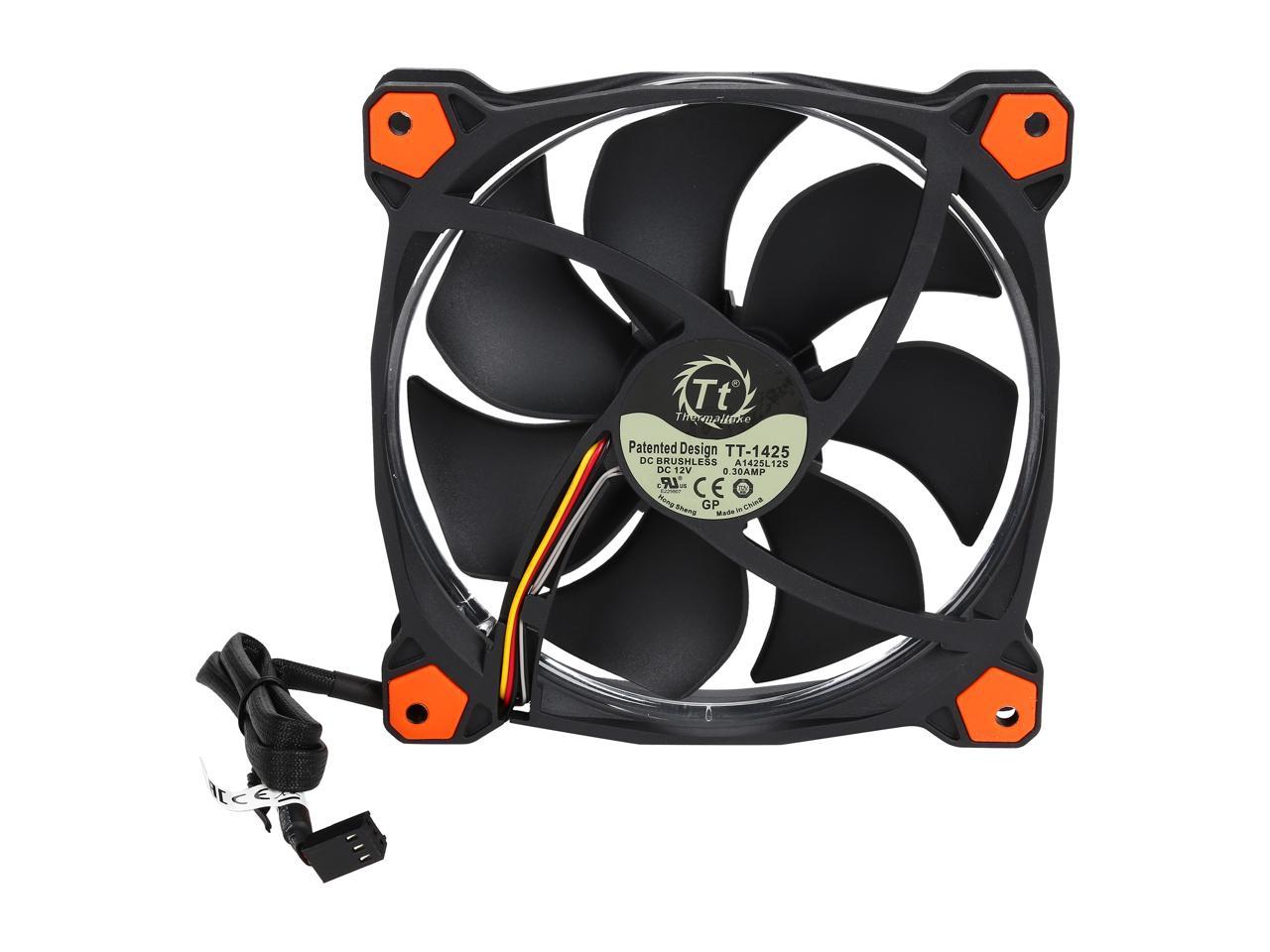

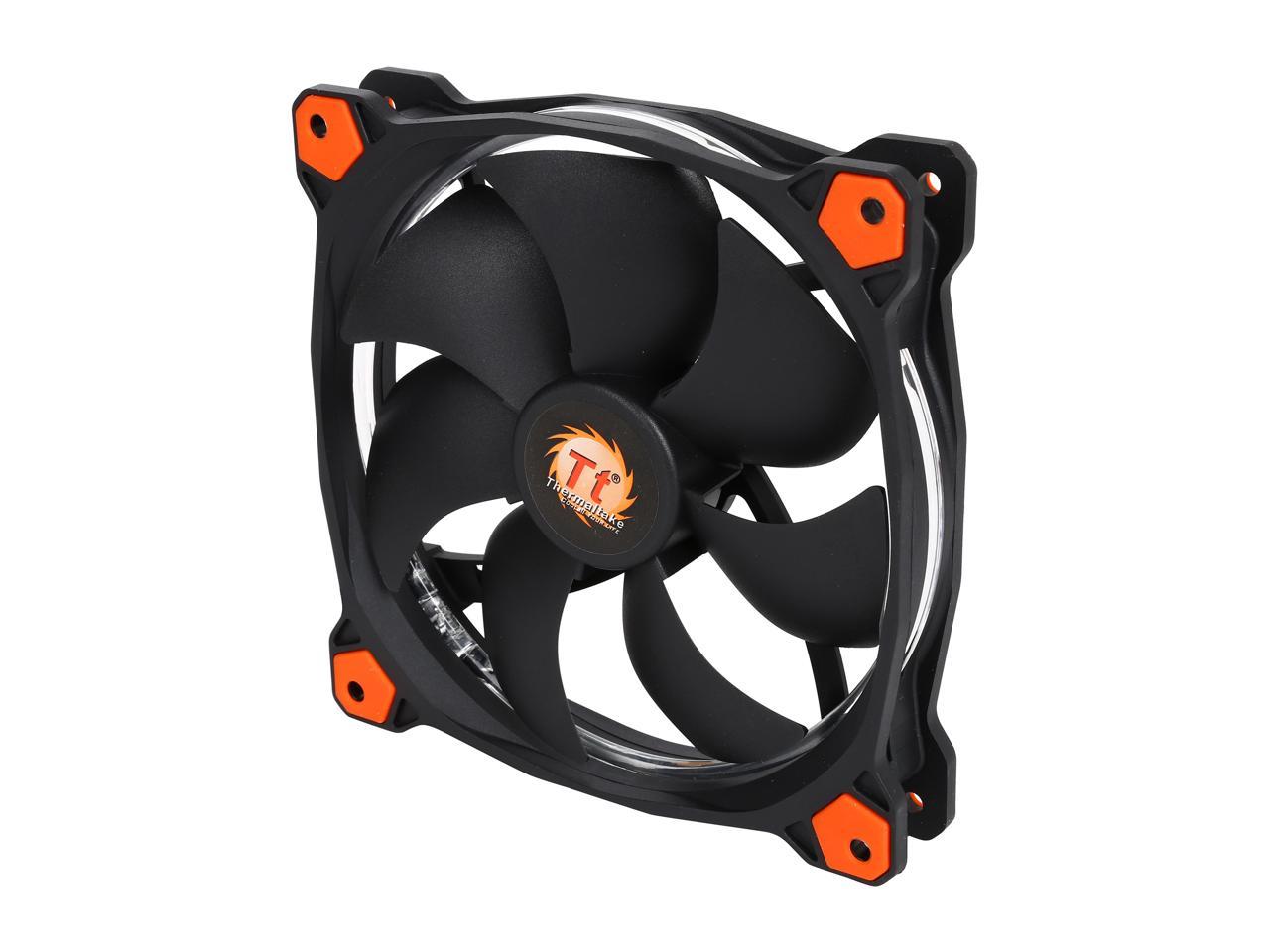

Thermaltake Riing 14 Series High Static Pressure LED Fan
A premium 140 mm fan ideal for use as case fan or as radiator fan. It's specially engineered to enhance static pressure for improved cooling performance, while keeping noise in check. An anti-vibration mounting system strengthens the stability during operation. The exclusive LED Ring uses premium quality LEDs to produce uniform color and brightness, which can be seen from all sides and angles. And available in multiple vibrant colors, the Thermaltake Riing 14 always offers the right choice to match your rig or preference.
Thermal Image Test
Compared to the standard case fan, the combination of three Riing 14 radiator fans and RL420 radiator delivers 50% better cooling performance. (Inlet and outlet temp. are 49.4? and 42.4? in respective, ?T= 7.0?)
Concentrated Compression Blade
Custom designed for high-static pressure requirements of demanding applications such as radiators, the Concentrated Compression Blade (CCB) is engineered to focus the inner weaker circle of air outwards, allowing the outer section to pressurize and compress the air.
Wind Blocker Frame
To achieve maximum static pressure in all applications, the wind blocker frame is designed to work with the Concentrated Compression Blade’s (CCB) pressure mechanism by directing airflow towards the middle section of the blade, thereby creating a compression effect and blocking any pressure from escaping. This reduces the blade’s noise and vibration, creating a perfect balance between power and sound.
Hydraulic Bearing with Low-Noise Design
The hydraulic bearing self-lubricates with a high quality, friction-reducing substance which lowers operating noise and improves efficiency. The seal cap prevents leakage of the lubricant, and improves the lifespan of the unit. The LNC (Low-Noise Cable) can reduce the noise level by 21% from 28.1dBA to 22.1dBA.
Anti-vibration Mounting System
In-mold injection anti-vibration rubber pads provide hassle-free usage for 80% protection coverage, including all four corners.

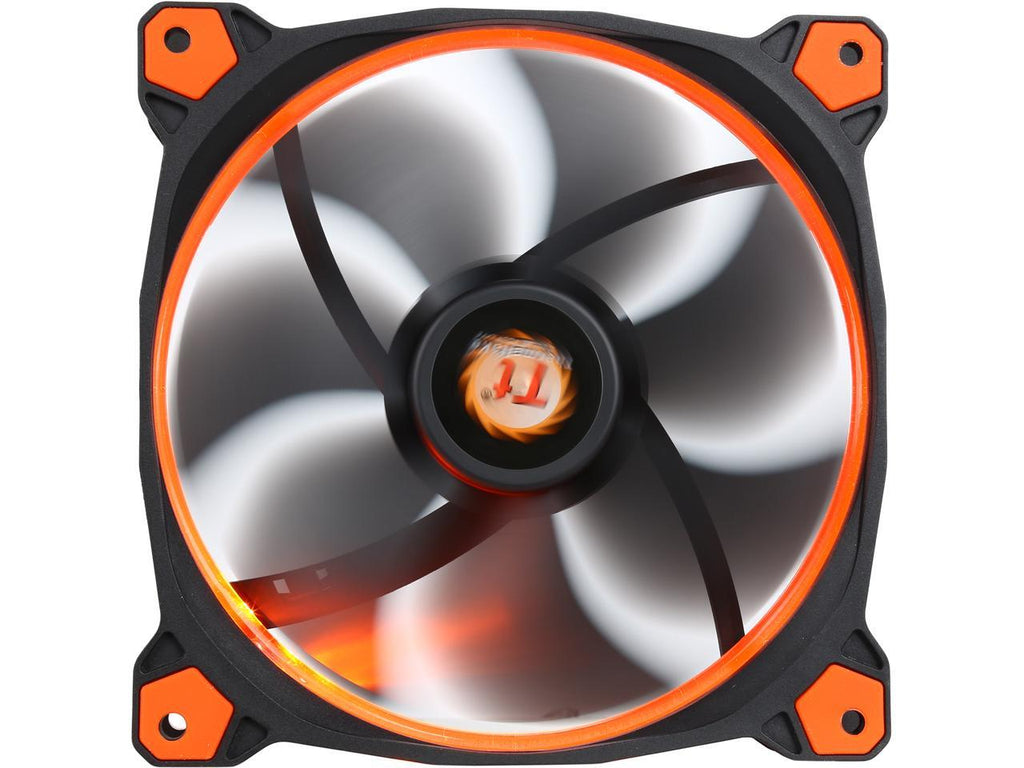

Six colors of the Exclusive LED Versions Available
Riing 14 LED Series is also available in different LED versions (red, blue, green, white, orange and yellow), adding cooling aesthetics to the chassis.
General Information
| Manufacturer | Thermaltake Technology Co., Ltd |
|---|---|
| Manufacturer Part Number | CL-F039-PL14OR-A |
| Manufacturer Website Address | http://www.thermaltakeusa.com |
| Brand Name | Thermaltake |
| Product Line | Riing |
| Product Name | Riing 14 High Static Pressure LED Radiator Fan |
| Product Type | Cooling Fan |
| UPC | 841163061756 |
| Weight (Approximate) | 6.59 oz |
|---|
