The RemotePro PL-LG-L Series (RPPL) outdoor power systems from TYCON SYSTEMS, INC. deliver reliable off-grid and backup power for remote installations, combining rugged durability with smart protection for uninterrupted operation.
-

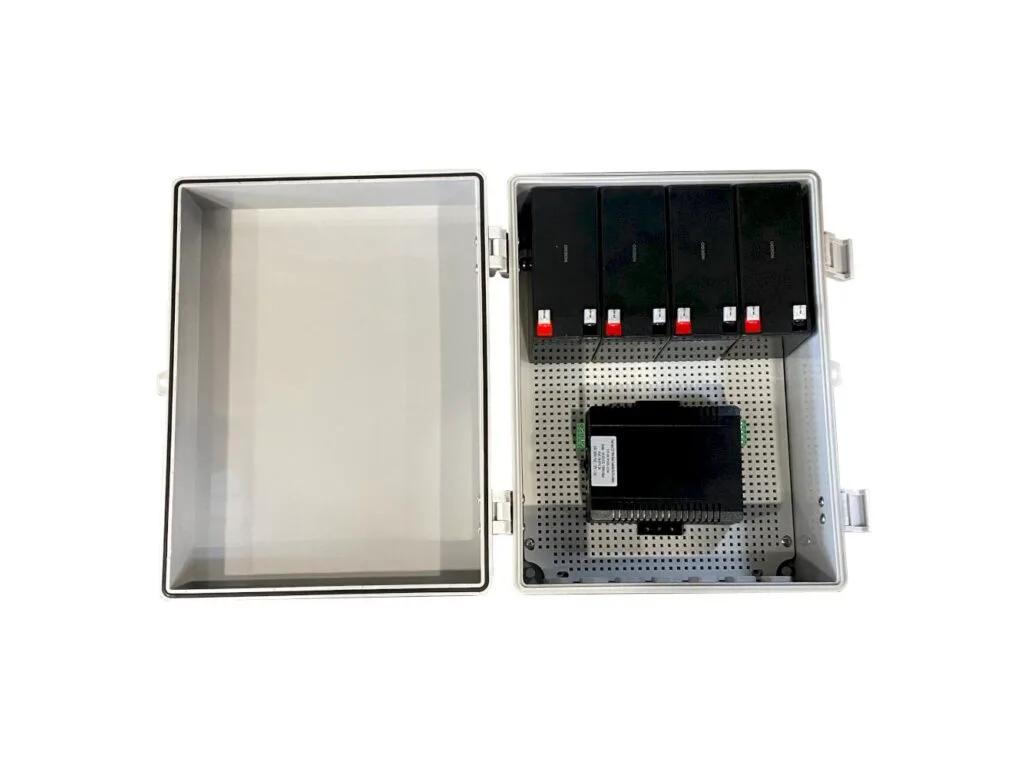

Weatherproof polycarbonate enclosure: 15" x 11" x 6" (external) enclosure designed for outdoor use, sealed to resist moisture and dust, and compatible with padlock or tamper seals for security.
-
Battery capacity: Supports up to four 12V 10Ah batteries, providing extended power availability for seasonal or long-duration outages.
-
Mounting flexibility: Enclosures are wall- or pole-mount capable with included mounting brackets for versatile site installation.
-
Power management options: Advanced battery charge control to protect against overcharge/over-discharge; some RPPL-LG models include a controller with built-in POE inserter and DCDC converter to feed 24V or 48V PoE from the 12V battery system.
-
Input/Output versatility: Dual input capability (Solar/POE) and dual outputs (Battery Voltage/POE) with a DCDC converter, enabling flexible remote power for network devices and sensors.
-
Security features: Durable enclosure with provisions for padlock or tamper seal to deter unauthorized access in unattended locations.
-
Application focus: Ideal for primary off-grid operation or robust backup power in critical installations such as wireless base stations, surveillance cameras, remote sensors, and remote lighting.
-
Solar compatibility: Designed to work with solar integration, including 30W and 35W panels, delivering a complete remote power solution with energy storage.
These features come together to deliver dependable energy storage and protection in harsh environments, helping maintain operations in remote or unattended locations with confidence and peace of mind.
Specs
-
Enclosure dimensions: External 15" x 11" x 6"; Internal fit designed for multiple battery configurations.
-
Enclosure material: Polycarbonate, UV resistant and weatherproof for outdoor use.
-

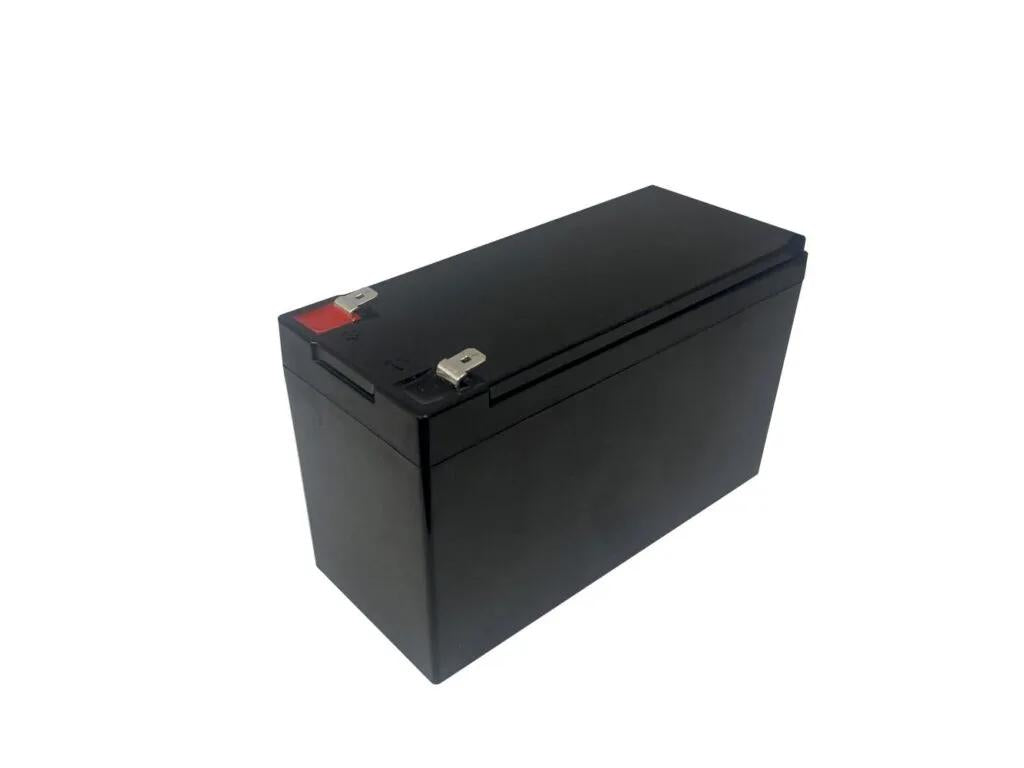

Battery compatibility: Up to four 12V 10Ah batteries.
-

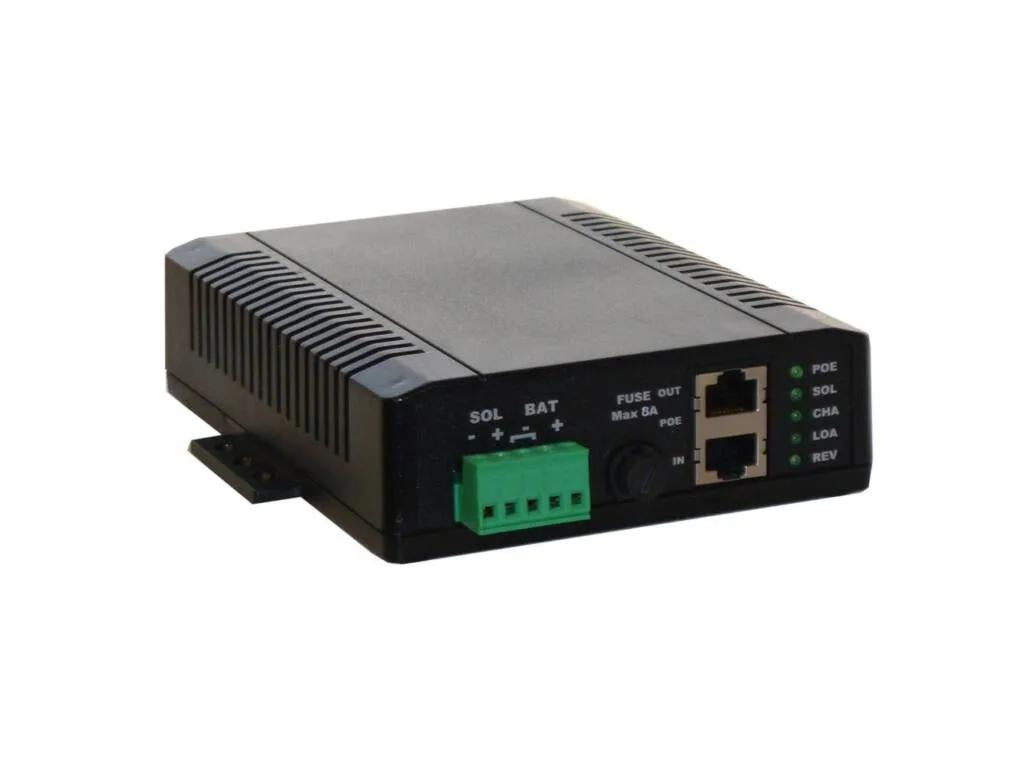

Controller options: PWM controller with optional LCD display; some models with built-in POE inserter and DCDC converter for 24V/48V PoE.
-
Input/Output: Dual input (Solar/POE); Dual output (Battery voltage/POE) with DCDC converter.
-
Security: Hinged, gasket-sealed enclosure with padlock or tamper seal provisions.
-
Mounting: Wall or pole mounting using included bracket system.
-
Environment: Weatherproof and UV resistant for outdoor environments.
-
FAQ 1: Can this system be used for solar power storage?
Yes, it is compatible with solar power setups as an energy storage solution.
-
FAQ 2: Is the enclosure resistant to extreme weather conditions?
Yes, it is weatherproof and sealed to protect internal components.
-
FAQ 3: What security measures are included?
The enclosure supports padlocks and tamper seals for enhanced security.
-
FAQ 4: How many batteries can the system accommodate?
Up to four 12V 10Ah batteries.
-
FAQ 5: Is installation straightforward?
Yes, the system is designed for ease of installation in various outdoor environments.
