Description
Mfr Part Number:D2-THUNDERBOLT 3
Feature:
Professional 8K Display
HD Projection
Daisy-chaining
More Storage Space
Hardware RAID Controller
USB Interface Compatibility
Optimized for Video Professionals
Intelligent, Energy-saving Design
Storage:
Disk Slot Number: 2
Compatible Drive types: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
File System: FAT 32, FAT 16, NTFS, and EXT4
Maximum Internal Raw Capacity: 36TB (18 TB drive x 2) (Capacity will vary along with the RAID type)
RAIDs Supported: SINGLE DISK,JBOD,RAID 0,RAID 1
Hardware RAID
RAID Auto-rebuilding
RAID Manager Software Language:N/A

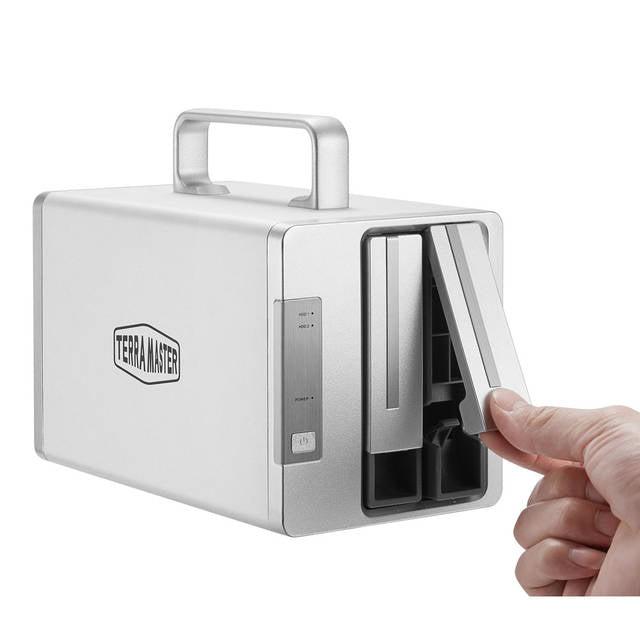

Drive Hot Swap
HDD Sleep
Working Temperature:
Working Temperature: 5C ~ 40C (40F ~ 104F)
Storage Temperature: -20C ~ 60C (-5F ~ 140F)
Relative Humidity: 5% ~ 95% RH
Supported OS: Windows OS, Mac OS
Reading/writing Speed (max.):
Reading Speed (max.):
- Read: 810MB /sec, (Use SSD under RAID 0 mode)
- Read: 521MB /sec, (Use HDD under RAID 0 mode)
Writing Speed (max.):
- Write: 806MB /sec, (Use SSD under RAID 0 mode)
- Write: 506MB /sec, (Use HDD under RAID 0 mode)

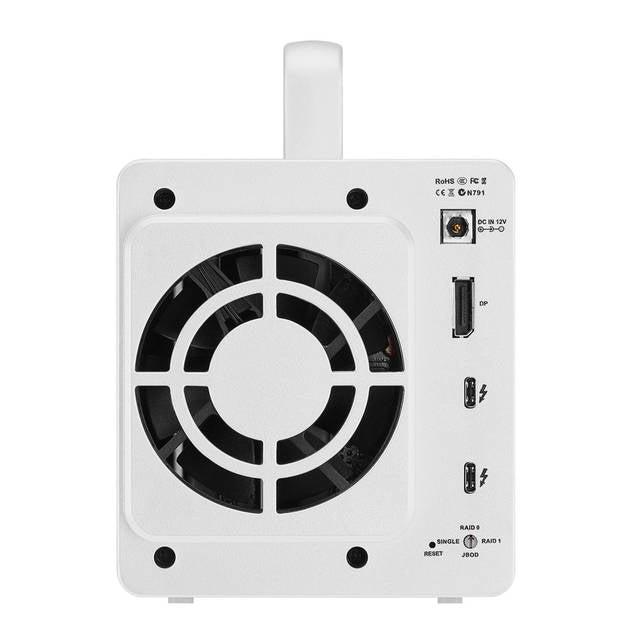

External Ports:40Gb Thunderbolt 3 x 2, DP 1.2 x 1, DC IN 12V
System Fan:80 mm x 80 mm x 25 mm 1 pcs
Fan Mode: Smart
Noise Level: 18.6dB(A)
Power Supply: 90W
AC Input Voltage: 100V to 240V AC
Current Frequency: 50/60 Hz, single frequency
Power Consumption:65.6W
Warranty:2 years
Certificate: FCC, CE, CCC, KC
Environment: RoHS compliance
Dimensions (WxDxH): 119.0 x 173.0 x 227.0 mm
Package Dimensions (WxDxH): 220.0 x 200.0 x 258.0 mm
Weight:1.4Kg (Net); 2.2Kg (Gross)
Package Contents: Host unit (x1), Power cord (x1), Thunderbolt 3 cable (40Gbps) (x1), Quick Installation Guide (x1), Limited Warranty Note(x1), Screws (a few), Power adapter (x1)
