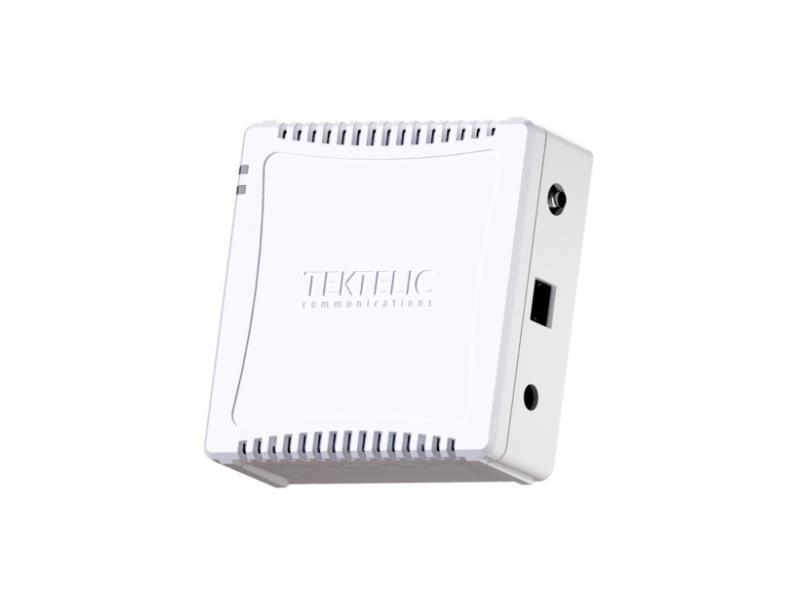

From SENSORWORKS, a trusted name in IoT connectivity, the Tektelic Kona Micro 8-Channel LTE LoRaWAN Indoor Gateway delivers reliable, scalable indoor IoT coverage with a compact footprint. It pairs eight LoRaWAN channels with robust LTE backhaul to keep critical data flowing in busy indoor environments.
-
8-channel LoRaWAN connectivity: Supports eight LoRa channels to connect a wide range of sensors and devices in a single gateway, enabling scalable indoor deployments.
-
915 MHz band (MICI1CUS915): Optimized for regions requiring the 915 MHz ISM band, supporting diverse LoRaWAN device ecosystems.
-
LTE backhaul (3G/4G): Reliable cellular backhaul that maintains stable data transmission even in areas with limited wired network options.
-
Indoor IP30 enclosure: Rugged enclosure rated IP30 for indoor use, designed to endure everyday office, retail, or facility environments.
-
Low power with battery backup: 4.5 W DC power consumption and approximately 4 hours of battery backup to bridge power interruptions.
-
Interfaces and antenna: RJ-45 10/100 BaseT Ethernet port plus an external SMA-RC antenna included for flexible installation and placement.
-
Compact, install-friendly design: Small form factor with external antenna support to fit unobtrusively in tight spaces while maintaining strong coverage.
-
Reliability: MTBF of 830,000 hours supports continuous operation for mission-critical IoT deployments.
This gateway shines in scenarios like warehouse asset tracking, smart building sensors, environmental monitoring in offices, and retail environments where dependable indoor coverage and real-time data are essential. The combination of LoRaWAN flexibility and LTE backhaul minimizes dead zones and ensures devices stay connected, even during network fluctuations. Its straightforward Ethernet and antenna setup makes it practical for quick installations and easy maintenance, backed by SENSORWORKS’ commitment to dependable IoT infrastructure.
Specs
-
Channels: 8-channel LoRaWAN
-
Backhaul: LTE (3G/4G)
-
Power: 4.5 W DC power consumption; battery backup ~4 hours
-
Enclosure: IP30
-
MTBF: 830,000 hours
-
Interfaces: RJ-45 (10/100 BaseT) Ethernet; external SMA-RC antenna included
-
Frequency: 915 MHz band (MICI1CUS915)
FAQ
-
Q: What frequency does this gateway support?
A: It supports the 915 MHz band (MICI1CUS915).
-
Q: Is the external antenna included?
A: Yes, an external SMA-RC antenna is included.
-
Q: What is the expected battery backup time?
A: Approximately 4 hours.
-
Q: Can it be used outdoors?
A: No, it is designed for indoor use with IP30 rating.
-
Q: What type of Ethernet connection is supported?
A: RJ-45 (10/100 BaseT) Ethernet.
