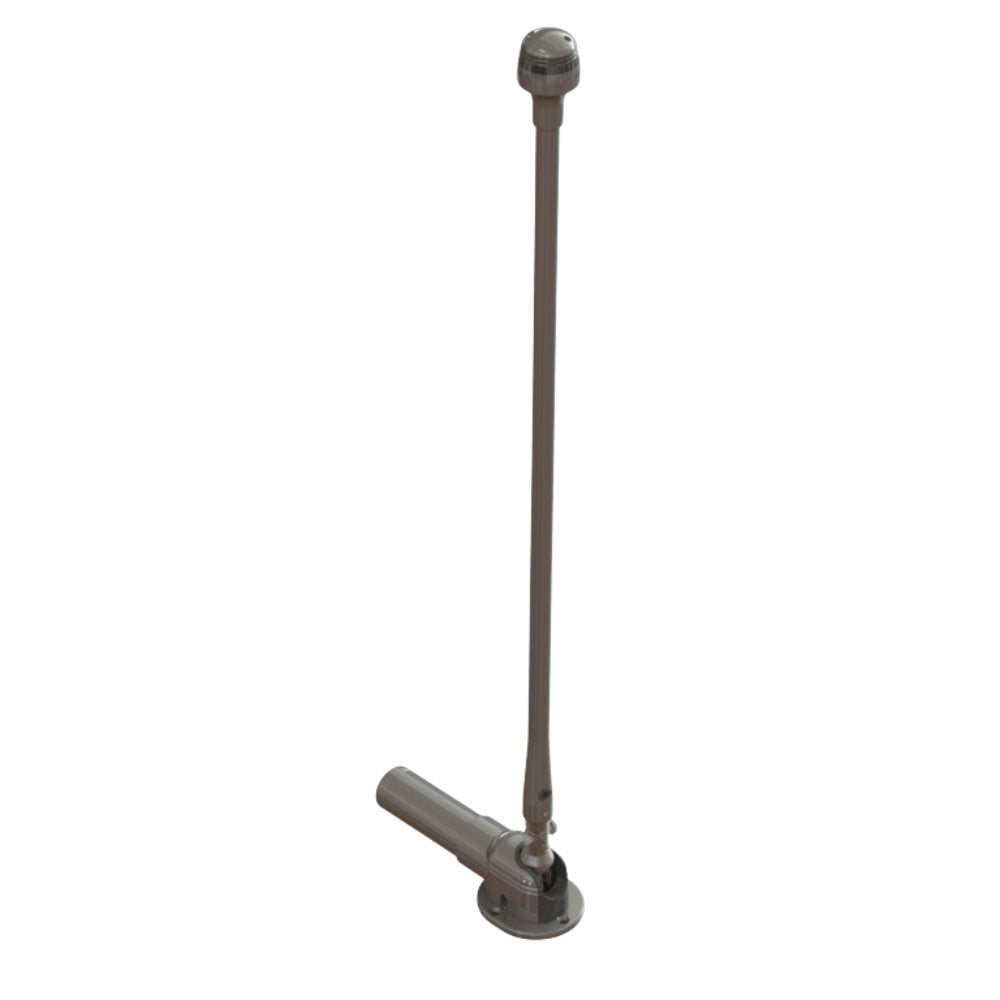

Grand Slam 960 Electric Masthead Anchor Light
The Grand Slam 960 Electric Masthead Anchor Light offers enhanced safety, durability, and style. Building on the success of the GS-950, the Grand Slam 960 features a durable stainless-steel body and a Type 316L stainless-steel breakaway pin for superior weather resistance. It incorporates a new stainless-steel anti-backlash linear screw drive for added durability. The oblong design accommodates a longer, more powerful motor for excellent performance at sea. Suitable for powered vessels up to 39’ (12 meters), the GS-960 meets the USCG's 3 nautical mile visibility requirement. Boaters can easily adjust their Masthead Anchor Light from the deck with a push-button operation, thanks to the auto-rotating stop feature and manual stop option. This fully electric unit has a hidden base wire inside the hardtop, which easily installs to the top’s surface. It has the same hole pattern as the GS-950, making upgrades possible, and fits all top thicknesses. The GS-960 lights run on 12 volts and consist of four 3-watt LED Cree chips driven by two Mean Well drivers.
Features:
- Certified for USCG-required 3-nm
- Meets NMMA/ABYC C-5 5.8 Standards requirements
- NMMA Type Accepted Approved Product
- Includes heavy-duty anodized aluminum tube, light and 6” lead of 20-gauge wire from the base
- Reliable long-life LEDs
- 5-watt Stern Light and 10-watt Anchor
- Low-draw, 0.6 amps per light
- Electronic Control Module (ECM) features an industry-standard On-Off-On control switch
- ECM includes a 5A fuse for device protection
- Comes with a 12” wire lead and water-sealed Deutsch connector, using 18-gauge wire from the base
- Operates on 12-volt DC for lift and descent
- No under-mount clearance needed
- Polished stainless-steel body with a mirrored finish
- Stainless-steel threaded screw drive ensures smooth lift and descent
- High-torque, anti-backlash ball-bearing motor
- Oil-lite bronze bushings for smooth operation
- The integrated nylon knob on the stainless-steel breakaway pin allows for manual operation in case of power failure
- 1-year limited warranty
Specifications:
- Weight: 7.2 lbs
- UoM: Each
- CoO: USA
- Finish: VEL
Manufacturer Part Number: GS-960
