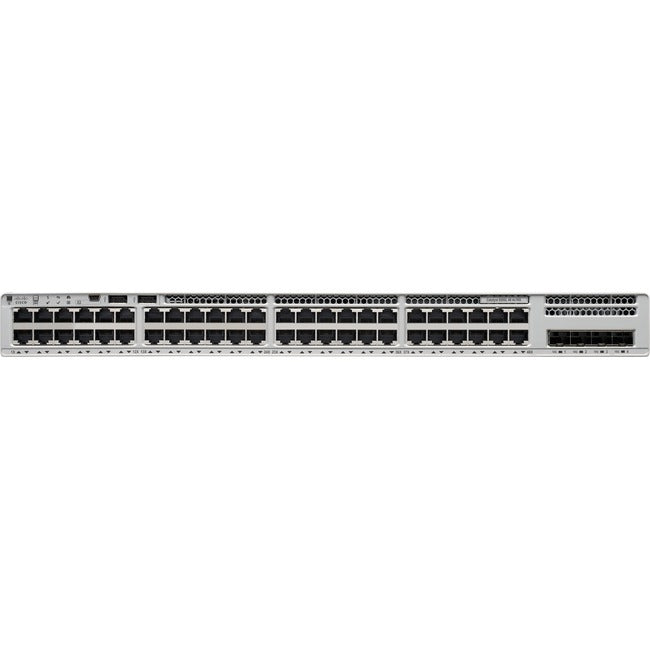

This Cisco Catalyst 9200 is perfect for enterprise networks that need 48 port switch density with layer 3 routing capabilities and 10G uplinks. Our C9200L-48T-4X-A delivers:
-
Cisco 10gbe switch performance for high-speed backbone connectivity
-
Server rack network switch design for data center deployments
-
Ethernet switches with advanced security and automation features
-
Stacking capability for simplified network management
Key Features
-
48 port switch with Gigabit Ethernet access ports
-
10G uplinks via 4x SFP+ ports for backbone connectivity
-
Layer 3 routing with static routes and RIP support
-
Stacking technology supports up to 8 units in a stack
-
Cisco 10gbe switch architecture with 176 Gbps switching capacity
- Advanced security with MACsec encryption and TrustSec integration
Technical Specifications
| Manufacturer |
CISCO |
| Model Number |
C9200L-48T-4X-A |
| Type |
Cisco Catalyst 9200 Switch |
| Port Count |
48 x Gigabit Ethernet + 4 x 10G uplinks (SFP+) |
| Switching Capacity |
176 Gbps |
| Forwarding Rate |
130.95 Mpps |
| Routing Support |
Layer 3 Static Routes, RIP |
| Stack Size |
Up to 8 units (stacking) |
| Power Consumption |
67W maximum |
| Compatible Systems |
Cisco DNA Center, Catalyst Center, enterprise networks |
Frequently Asked Questions
Q: What makes this Cisco Catalyst 9200 suitable for enterprise networks?
A: The 48 port switch provides high-density Gigabit access with 10G uplinks for backbone connectivity, layer 3 routing capabilities, and enterprise-grade security features including MACsec encryption.
Q: How does the stacking feature benefit network design?
A: Stacking allows up to 8 Catalyst 9200 switches to operate as a single logical unit, providing simplified management, increased port density, and redundant connectivity with 80Gbps stack bandwidth.
Q: What are the 10G uplink capabilities?
A: The 4x SFP+ 10G uplinks support fiber optic connections for high-speed backbone connectivity, enabling this cisco 10gbe switch to handle demanding enterprise traffic loads.
Q: Does this switch support advanced Layer 3 features?
A: Yes, the layer 3 functionality includes static routing, RIP, and inter-VLAN routing capabilities, making it ideal for segmented enterprise networks requiring routing between subnets.
Cisco Catalyst 9200 48 port switch with Layer 3 routing and 10G uplinks. Enterprise-grade stacking switch for data center deployments.
