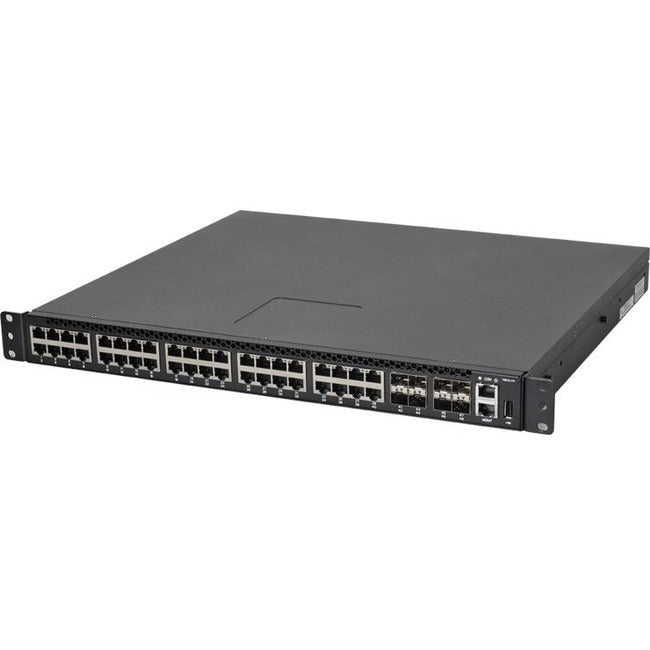

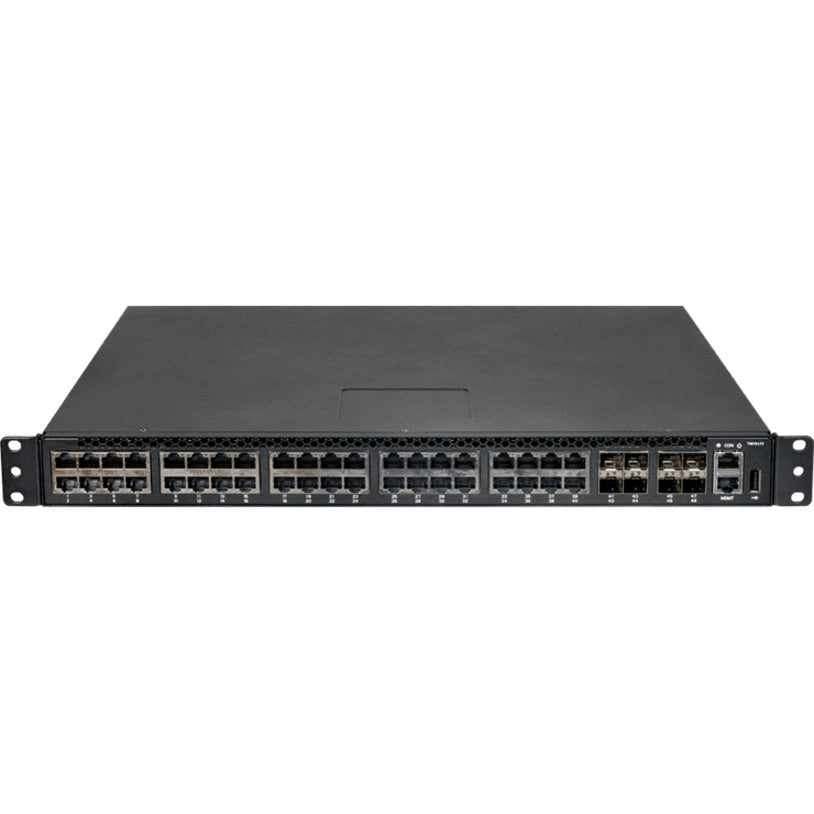

QCT A Powerful Top-of-Rack Switch for Data Center and Cloud Computing
A Powerful Top-of-Rack Switch for Datacenters and Cloud Computing
The QuantaMesh T3040-LY3 is a high performance layer 2/3/4 Ethernet switch with 40 100BASE-TX/1000BASE-T/10GBASE-T and 8 1/10GBASE-X SFP+ ports in a compact rack unit size. The 40 10GBASE-T ports are backwards compatible with 100/1000M Ethernet networks. The 8 SFP+ ports can aggregate bandwidth up to the core switch. With the energy saving requirements, the QuantaMesh T3040-LY3 is designed with high power efficiency to save OPEX.
Simplicity
The QuantaMesh T3040-LY3 can be managed through an industry standard command-line interface (CLI) which reduces training and operating costs. The QuantaMesh T3040-LY3 also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for easy configuration, monitoring, and management by the network administrator remotely. The Auto- Installation feature implemented in the QuantaMesh T3040-LY3 helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T3040-LY3 is a IPv6 integrated management device.
High Availability
The QuantaMesh T3040-LY3 is designed for high availability from both hardware and software perspective. The key features include:

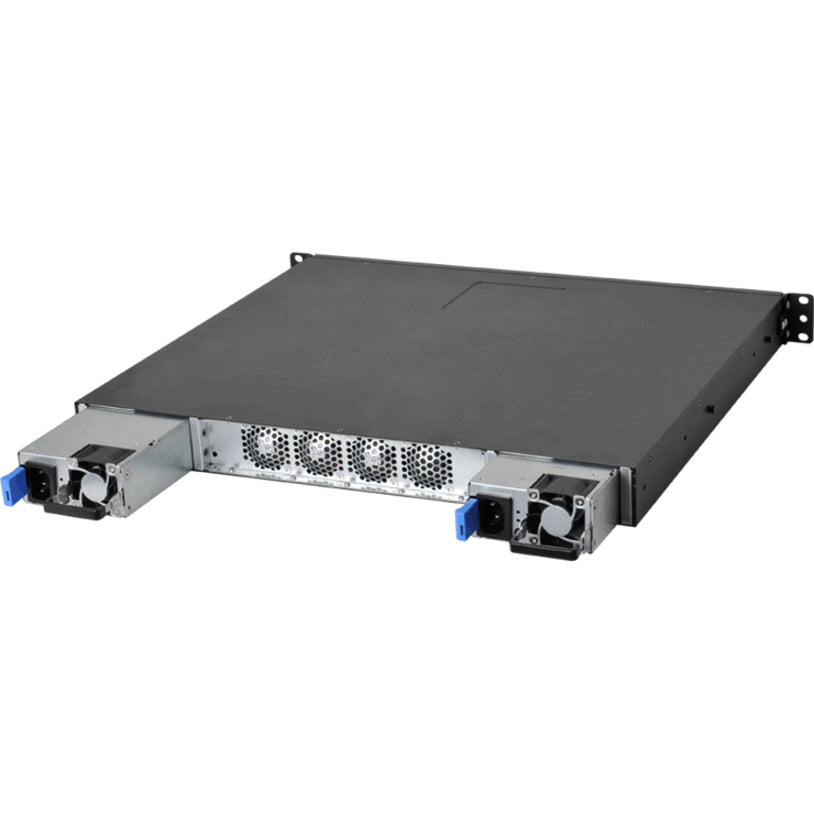

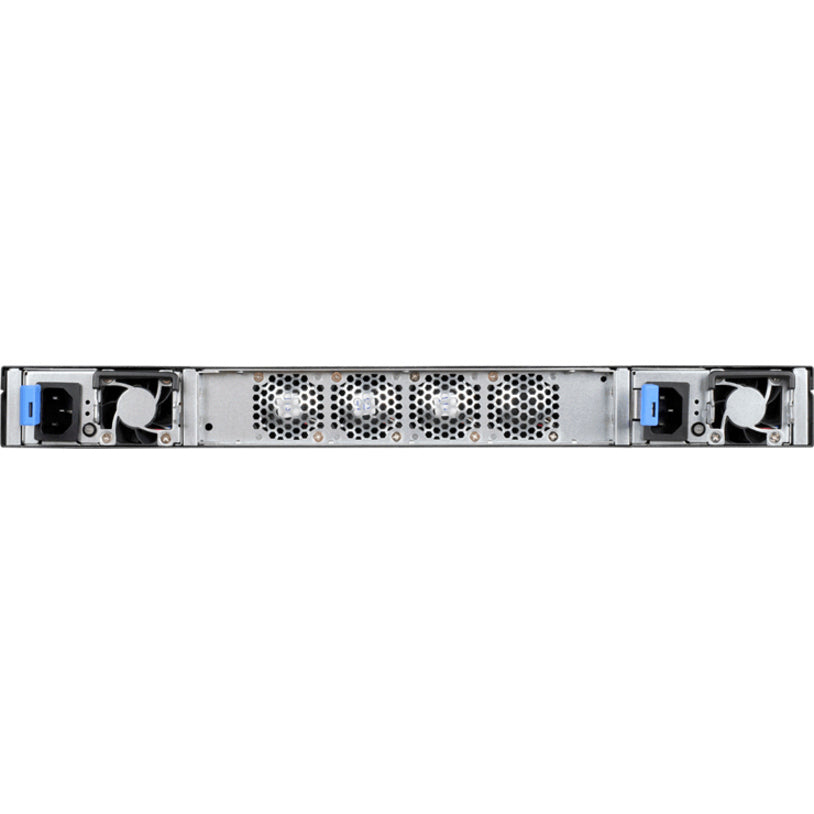

- 1+1 hot-swappable power supplies
- Spanning Tree with Guarding Features
- Up to 64 gropus of LACP with per group 32 member ports
- Multi-chassis Link Aggregation (MLAG)
- Up to 32 paths ECMP routing for load balancing and redundancy
- Virtual Router Redundancy Protocol (VRRP)
High-Performance L2/L3 access deployments

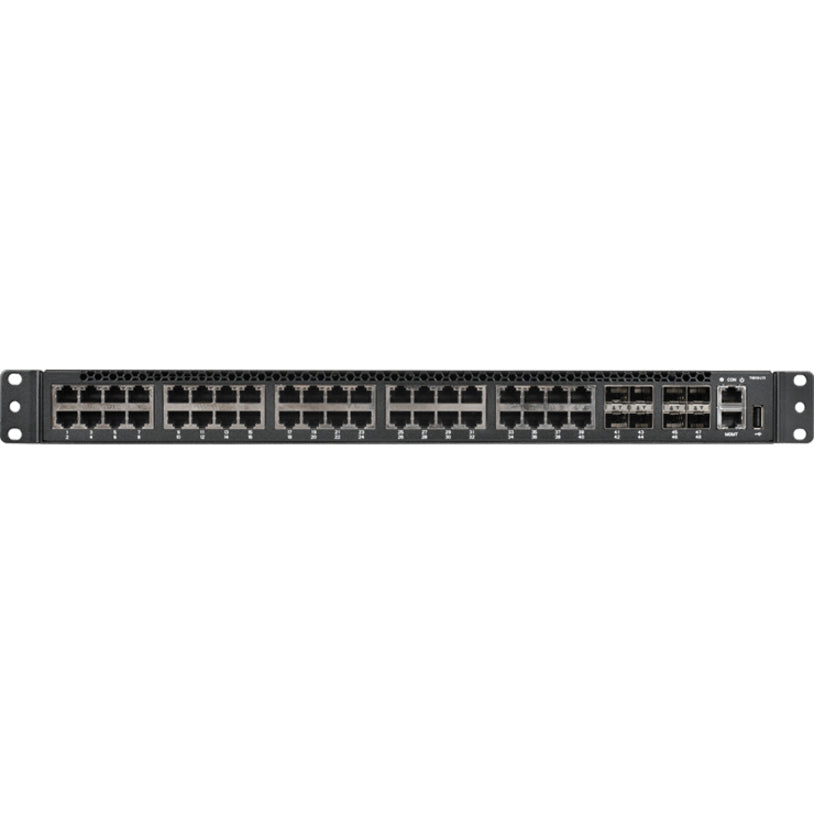

With the compact 1U form factor, high density 40 100BASE- TX/1000BASE-T/10GBASE-T and 8 1/10GBASE-X SFP+ ports in the front panel, front to back or back to front airflow design, the QuantaMesh T3040-LY3 is ideal for top- of-rack deployments in high-performance, highly demanding datacenters. The 960 gigabits per second switching capacity and 714Mpps forwarding rate with low power consumption make the QuantaMesh T3040-LY3 a powerful solution to aggregate high- performance servers in the datacenter.
Software Defined Network (SDN)
SDN has emerged as a new approach to support open, vendor-agnostic, and programmable networks. T3040-LY3 is equipped with OpenFlow v1.3 features to fulfill the needs of modern data center applications.
- 10GBT
- Multi-Chassis Link Aggregation (MLAG)
- OSPF, BGP4 with ECMP
- Network Automation
- OpenFlow
Product Type: Layer 3 Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Compatible Rack Unit: 1U
Product Series: T3000
Brand Name: QCT
Form Factor: Rack-mountable
Manufacturer: Quanta Computer, lnc
Product Model: T3040-LY3
Product Name: A Powerful Top-of-Rack Switch for Data Center and Cloud Computing
Product Line: QuantaMesh
Manufacturer Part Number: 1LY3BZZ0ST8
Manufacturer Website Address: http://www.quantatw.com
Limited Warranty: 3 Year
Weight (Approximate): 17.42 lb
