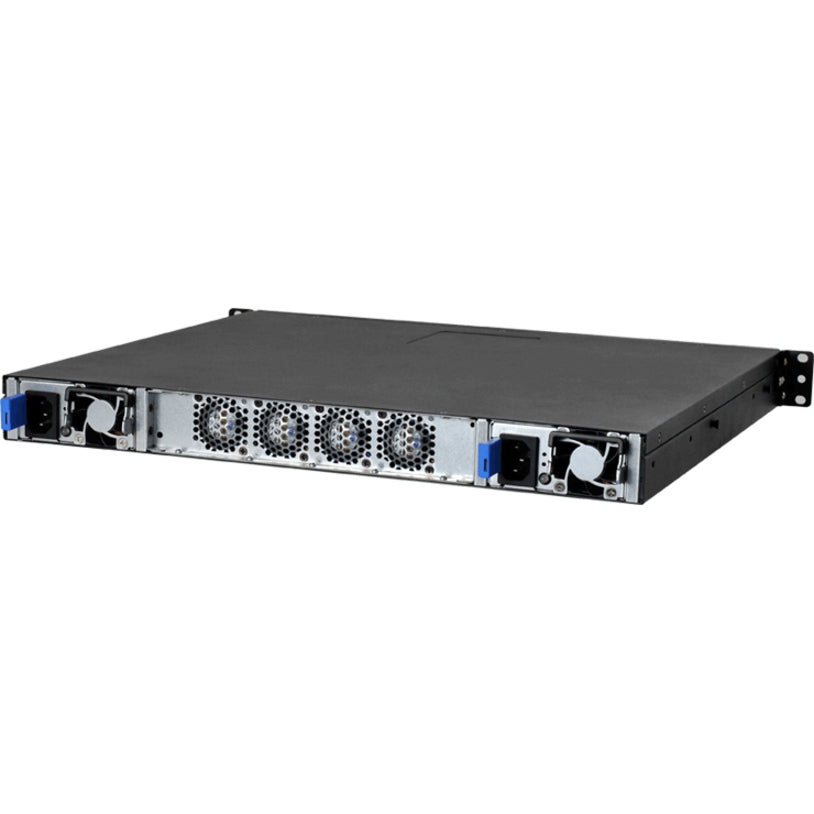

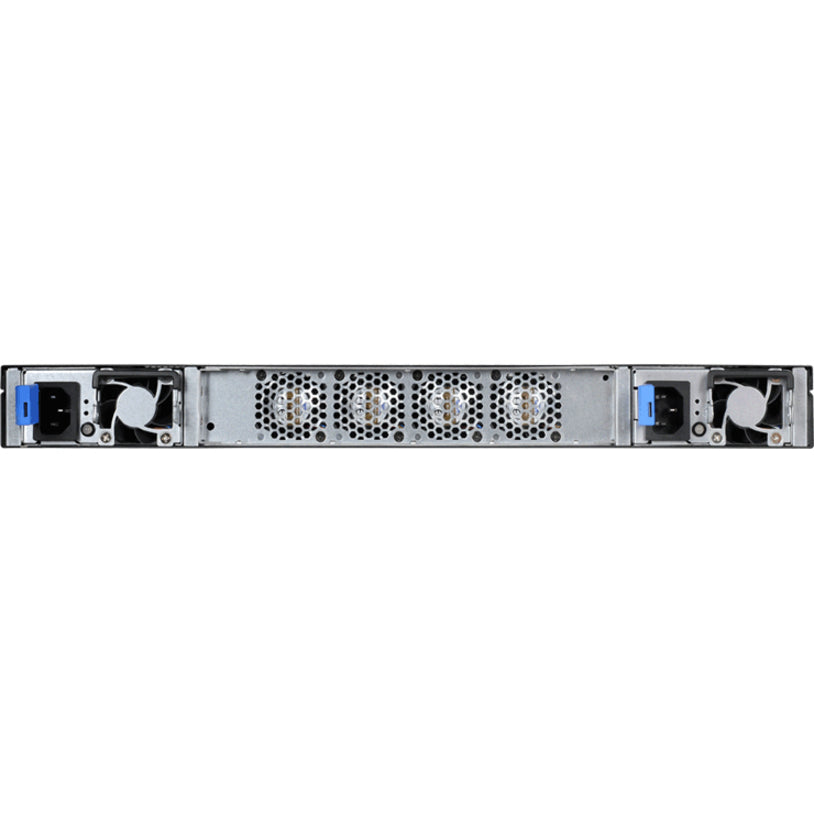

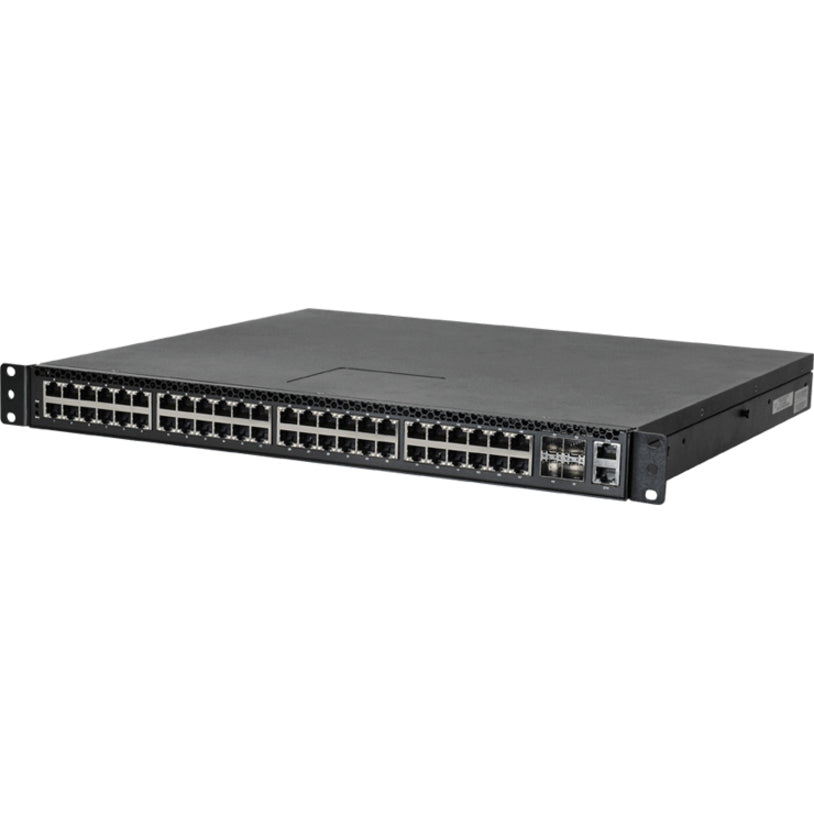

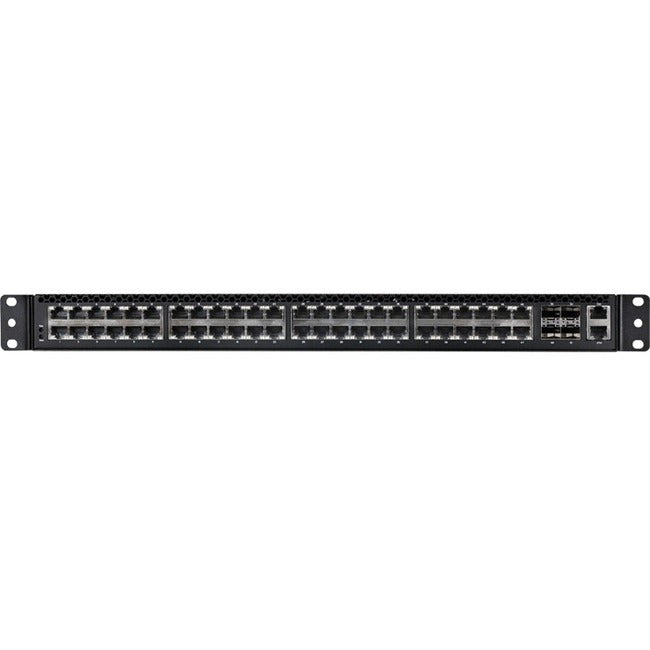

QCT 1G/10G Datacenter & Enterprise-Class Ethernet Switch
The QuantaMesh T1048-LB9 is a high performance layer 2/3/4 Ethernet switch with 48 10Base-T/100Base-TX/1000Base-T ports and 4 dual speed 1GbE/10GbE SFP+ ports in a compact rack unit size.
Simplicity
The QuantaMesh T1048-LB9 can be managed through an industry standard command-line Interface (CLI) which reduces training and operating costs. The QuantaMesh T1048-LB9 also supports Simple Network Management Protocol (SNMP) both from standard MIB and private MIB for network administrator to easily configure, monitor, and manage operation remotely. The Auto-Installation feature implemented in the QuantaMesh T1048-LB9 helps centralized management to simplify deployment of a truly plug-and-play experience. With the evolution from IPv4 to IPv6, the QuantaMesh T1048-LB9 is a IPv6 integrated management device.
High Availability
The QuantaMesh T1048-LB9 is designed for high availability from both hardware and software perspective. The key features include:
- 1+1 hot-swappable power supplies
- Out-of-band management support
- Spanning Tree with Guarding Features
- Up to 64 gropus of LACP with per group 8 member ports
- Multi-chassis Link Aggregation (MLAG)
- Up to 32 paths ECMP routing for load balancing and redundancy
- Virtual Router Redundancy Protocol (VRRP)
Advanced IPv4 and IPv6 routing
The QuantaMesh T1048-LB9 is a fully layer 2 and layer 3 routing switch that supports advanced IPv4 and IPv6 routing features such as OSPF, OSPFv3, BGP4 and ECMP. The multicast routing features for IGMP v1/v2/v3, PIM-DM/SM, MLD v1/v2 and PIM-DM6/SM6 are all supported in the QuantaMesh T1048-LB9.
Software Defined Network (SDN)
SDN has emerged as a new approach to support open, vendor-agnostic, and programmable networks. T1048-LB9 is equipped with OpenFlow v1.3 features to fulfill the needs of modern data center applications.
- Multi-Chassis Link Aggregation (MLAG)
- OSPF, BGP4 with ECMP
- Network Automation
- OpneFlow
Product Type: Layer 3 Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS-6
Product Series: T1000
Brand Name: QCT
Form Factor: Rack-mountable
Manufacturer: Quanta Computer, lnc
Product Model: T1048-LB9
Product Name: 1G/10G Datacenter & Enterprise-Class Ethernet Switch
Product Line: QuantaMesh
Manufacturer Part Number: 1LB9BZZ000B
Manufacturer Website Address: http://www.quantatw.com
Limited Warranty: 3 Year
Weight (Approximate): 15.76 lb
