✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]
-
Mfr Part Number:HAS5300-12T
-
Hardware:
-
Capacity:12 TB
-
Form Factor:3.5"
-
Interface:SAS 12 Gb/s
-
Sector Size:512e
-
Performance:
-
Rotational Speed:7,200 rpm
-
Interface Speed:12.0 Gb/s, 6.0 Gb/s, 3.0 Gb/s, 1.5 Gb/s
-
Buffer Size:256 MiB
-
Maximum Sustained Data Transfer Speed (Typ.):242 MiB/s
-
Reliability:
-
Mean Time to Failure (MTTF):2,500,000 hours
-
Workload Rating:550 total TB transferred per year
-
Warranty:5 Years
-
Power Consumption:
-
Supply Voltage:12 V (10%) / 5 V (+10/-7%)
-
Active Idle (Typ.):4.36 W
-
Random Read / Write (4KB Q1) (Typ.):7.80 W
-
Temperature:
-
Operating: 5C to 60C (41F to 140F)
-
Non-operating:-40C to 70C (-40F to 158F)
-
Shock:
-
Operating: 686 m/s2 {70 G} (2 ms duration)
-
Non-operating:2,450 m/s2 {250 G} (2 ms duration)
-
Vibration:
-
Operating: 7.35 m/s2 {0.75 G} (5 to 300 Hz), 2.45 m/s2 {0.25 G} (300 to 500 Hz)
-
Non-operating:29.4 m/s2 {3.0 G} (5 to 500 Hz)
-
Altitude:
-
Operating: -305 m to 3,048 m
-
Non-operating:-305 m to 12,192 m
-
Relative Humidity:
-
Operating: 5% to 90% R.H. (No condensation)
-
Non-operating:5% to 95% R.H. (No condensation)
-
Others:
-
Size (Hx Wx D):26.1 mm x 101.85 mm x 147 mm
-
Weight:720 g
-
Certification:CE, RCM, BSMI, KC, EAC, UL, TUV, ICES, UKCA, RoHS
General Information
| Manufacturer |
Synology, Inc |
| Manufacturer Part Number |
HAS5300-12T |
| Manufacturer Website Address |
http://www.synology.com |
| Brand Name |
Synology |
| Product Series |
HAS5300 |
| Product Model |
HAS5300-12T |
| Product Name |

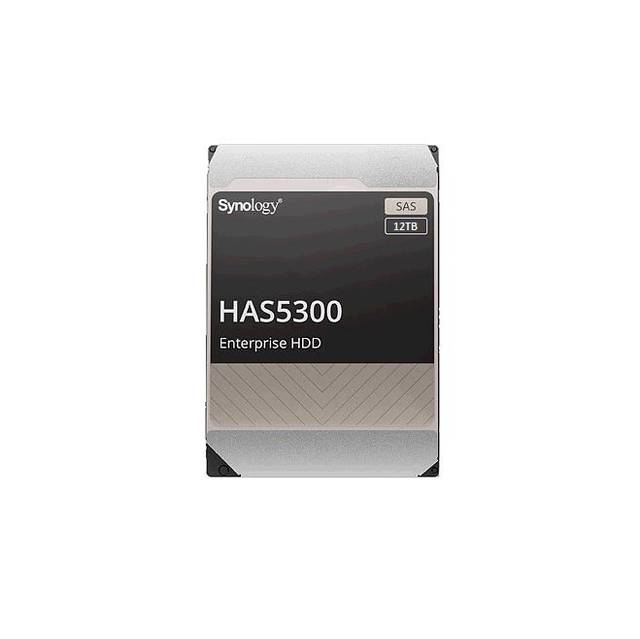

3.5" SAS HDD HAS5300 |
| Product Type |
Hard Drive |
| UPC |
846504004171 |
Storage
| Drive Type | Internal |
|---|
| Height | 1" |
|---|
| Width | 4" |
|---|
| Depth | 5.8" |
|---|
| Weight (Approximate) | 1.59 lb |
|---|
