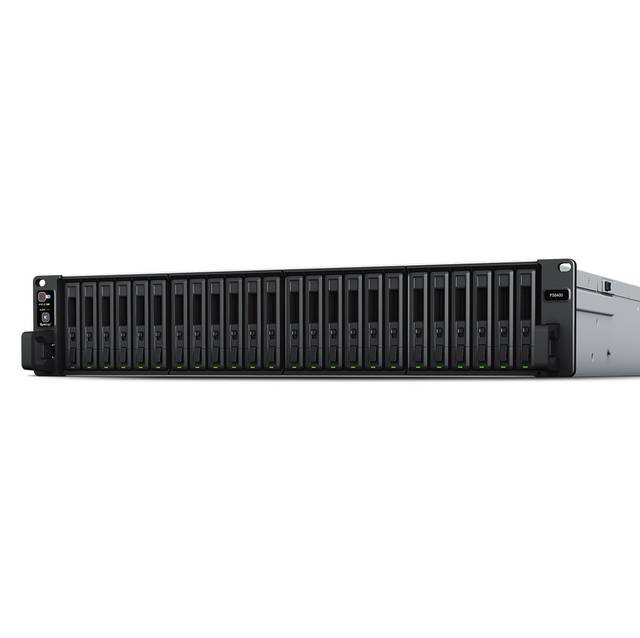

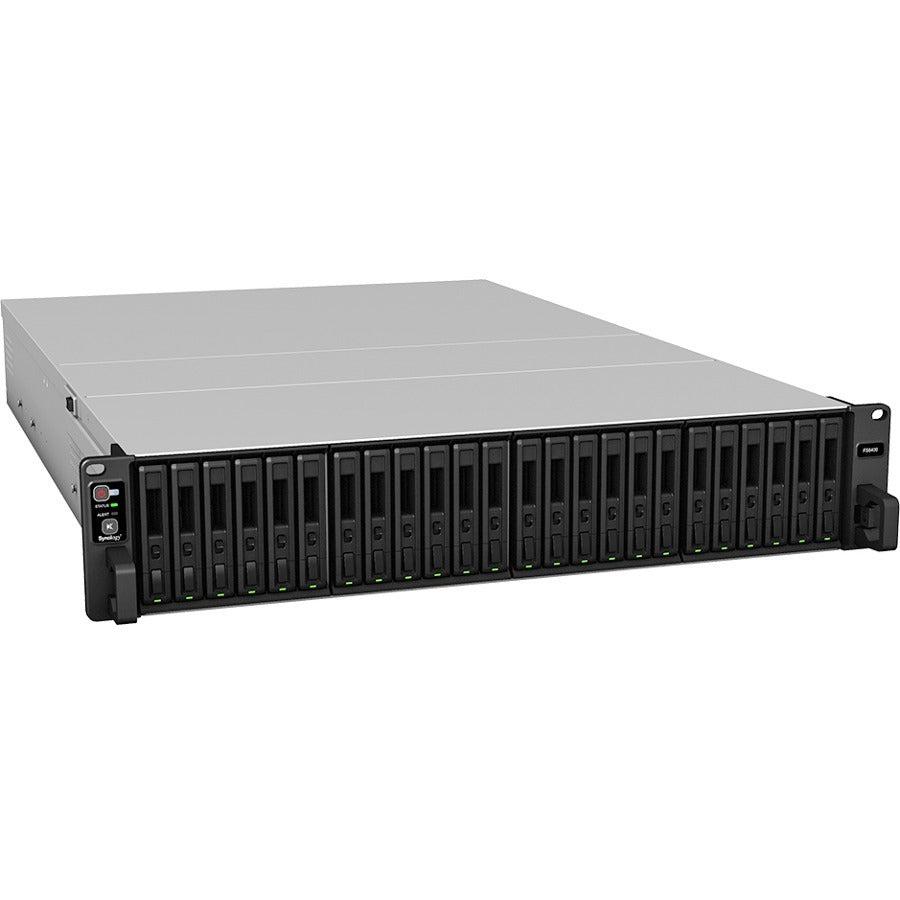

Name: Synology Flashstation Fs6400 24-Bay 2U Rackmount Server (Blazingly-Fast All-Flash Server Aiming For I/O-Intensive Applications)
Brand: Synology
SKU: FS6400
Price: 21048.00 CAD
Availability: InStock

Synology Flashstation Fs6400 24-Bay 2U Rackmount Server (Blazingly-Fast All-Flash Server Aiming For I/O-Intensive Applications)

Roll over image to zoom in Click on image to zoom

Mfr Part Number: FS6400
CPU:
- CPU Model:Intel Xeon Silver 4110 x 2
- CPU Architecture:64-bit
- CPU Frequency:8-Core 2.1 (base) / 3.0 (turbo) GHz
- Hardware Encryption Engine (AES-NI): Y
Memory:
- System Memory:32 GB DDR4 ECC RDIMM
- Memory Module Pre-installed: 32 GB (16 GB x 2)
- Total Memory Slots:16
- Memory Expandable up to:512 GB (32 GB x 16)
Storage:
- Drive Bays:24
- Maximum Drive Bays with Expansion Unit: 48 (RX1217sas) / 72 (RX2417sas)
- Compatible Drive Type:2.5" SAS HDD/ 2.5" SAS SSD/ 2.5" SATA SSD
- Maximum Internal Raw Capacity:184.32 TB (7.68 TB drive x 24) (Capacity may vary by RAID types)
- Maximum Raw Capacity with Expansion Units: 552.96 TB (184.32 TB + 7.68 TB drive x 48) (Capacity may vary by RAID types)
- Maximum Single Volume Size: 200 TB (for RAID 5 or RAID 6 groups only)/108 TB
- Hot Swappable Drive: Y

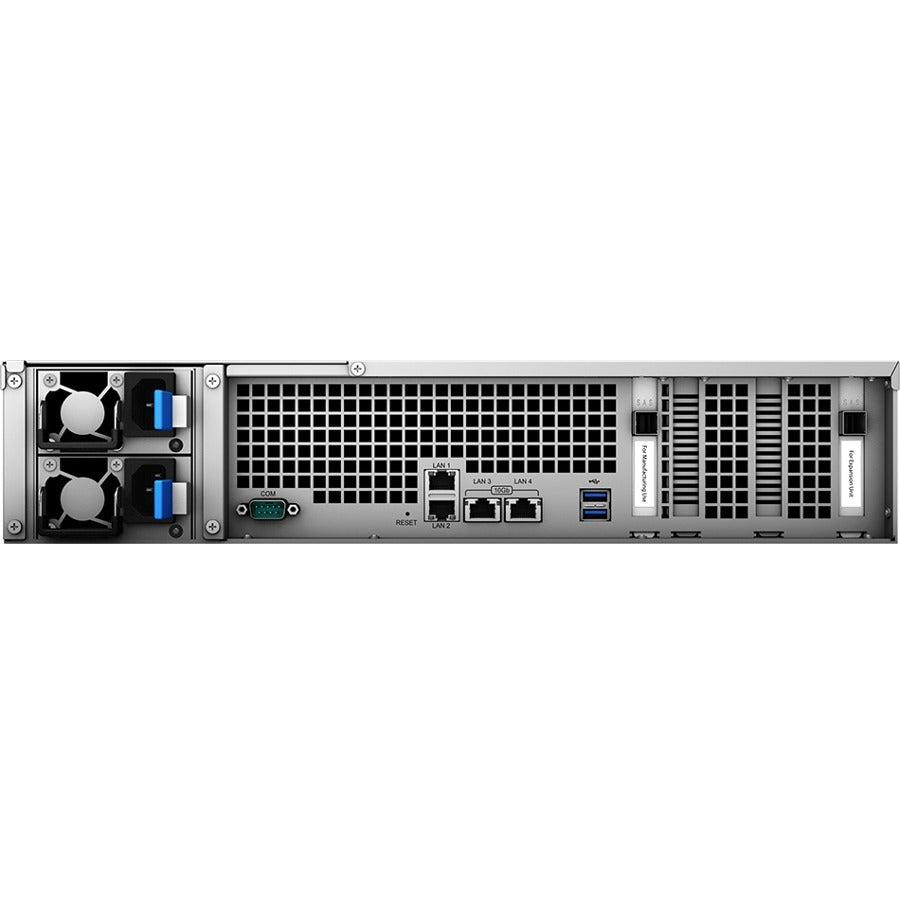

External Ports:
- RJ-45 1GbE LAN Port:2 (with Link Aggregation / Failover support)
- RJ-45 10GbE LAN Port: 2 (with Link Aggregation / Failover support)
- USB 3.0 Port:2
- Expansion Port: 1
PCIe:
- PCIe Expansion:2 x Gen3 x8 slots (x8 link)
- Add-In-Card Support:PCIe Network Interface Card
File System:
- Internal Drives: Btrfs; EXT4
- External Drives: Btrfs; EXT4; EXT3; FAT; NTFS; HFS+; exFAT*
- NotesexFAT Access is purchased separately in Package Center.
Appearance:
- Size (Height x Width x Depth): 88 mm x 482 mm x 724 mm
- Weight: 17.26 kg
- Rack Installation Support:4-post 19" rack (Synology Rail Kit - RKS1317)
- Notes:The rail kit is sold separately
Others:
- System Fan:80 mm x 80 mm x4 pcs
- Fan Speed Mode: Full-Speed Mode; Cool Mode; Quiet Mode
- Easy Replacement System Fan: Y
- Power Recovery: Y
- Noise Level:53.7 dB(A)
- Scheduled Power On/Off: Y
- Wake on LAN/WAN: Y
- Power Supply Unit / Adapter:800W
- Redundant Power Supply: Y
- AC Input Power Voltage:100V to 240V AC
- Power Frequency:50/60Hz, Single Phase
- Power Consumption:288.49 W (Access); 145.8 W (HDD Hibernation)
- British Thermal Unit:984.37 BTU/hr (Access); 497.49 BTU/hr (HDD Hibernation)
Temperature:
- Operating Temperature:0C to 35C (32F to 95F)
- Storage Temperature:-20C to 60C (-5F to 140F)
- Relative Humidity:5% to 95% RH
- Certification: EAC/VCCI/RCM/KC/FCC/CE/BSMI
Storage Management:
- Maximum Internal Volume Number:256
- Maximum iSCSI Target Number:256
- Maximum iSCSI LUN:512
- iSCSI LUN Clone/Snapshot, Windows ODX: Y
- SSD Read/Write Cache (White Paper): Y
- SSD TRIM: Y
- RAID Group: Y
- Supported RAID Type: RAID F1/Basic/JBOD/RAID 0/RAID 1/RAID 5/RAID 6/RAID 10
- RAID Migration: Basic to RAID 1/Basic to RAID 5/RAID 1 to RAID 5/RAID 5 to RAID 6
- Volume Expansion with Larger HDDs:RAID F1/RAID 1/RAID 5/RAID 6/RAID 10
- Volume Expansion by Adding a HDD: RAID F1/JBOD/RAID 5/RAID 6
- Global Hot Spare Supported RAID Type: RAID F1/RAID 1/RAID 5/RAID 6/RAID 10
File Services:
- File Protocol:CIFS/AFP/NFS/FTP/WebDAV
- Maximum Concurrent CIFS/AFP/FTP Connections:8000
- Maximum Concurrent CIFS/AFP/FTP Connections (with RAM expansion): 10,000
- Windows Access Control List (ACL) Integration: Y
- NFS Kerberos Authentication: Y
Account & Shared Folder:
- Maximum Local User Accounts:16,000
- Maximum Local Groups:512
- Maximum Shared Folder:512
- Maximum Shared Folder Sync Tasks:32
Synology High Availability: Y
Log Center: Y
- Syslog Events per Second: 3000
Virtualization:
- VMware vSphere 6 with VAAI: Y
- Windows Server 2016: Y
- Citrix Ready: Y
- OpenStack: Y
Antivirus by McAfee (Trial): Y
Central Management System: Y
Synology Chat: Y
- Maximum Users:6,000
Environment: RoHS Compliant
Packaging Content:
- Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 2
- Quick Installation Guide X 1

General Information

Manufacturer	Synology, Inc
Manufacturer Part Number	FS6400
Manufacturer Website Address	http://www.synology.com
Brand Name	Synology
Product Line	FlashStation
Product Series	FS
Product Model	FS6400
Product Name	FlashStation FS6400 SAN/NAS Storage System
Product Type	SAN/NAS Storage System
UPC	846504002733

Processor

Processor Manufacturer	Intel
Processor Type	Xeon Silver
Processor Model	4110
Processor Core	Octa-core (8 Core)
Processor Speed	2.10 GHz

Ethernet Technology	10 Gigabit Ethernet

Total Number of USB Ports	2
Network (RJ-45)	Yes

Operating System	DiskStation Manager

Power Description

Maximum Power Supply Wattage	800 W

Height	3.5"
Width	19"
Depth	28.5"
Weight (Approximate)	38.05 lb

Synology Flashstation Fs6400 24-Bay 2U Rackmount Server (Blazingly-Fast All-Flash Server Aiming For I/O-Intensive Applications)

Description

Synology Flashstation Fs6400 24-Bay 2U Rackmount Server (Blazingly-Fast All-Flash Server Aiming For I/O-Intensive Applications)
