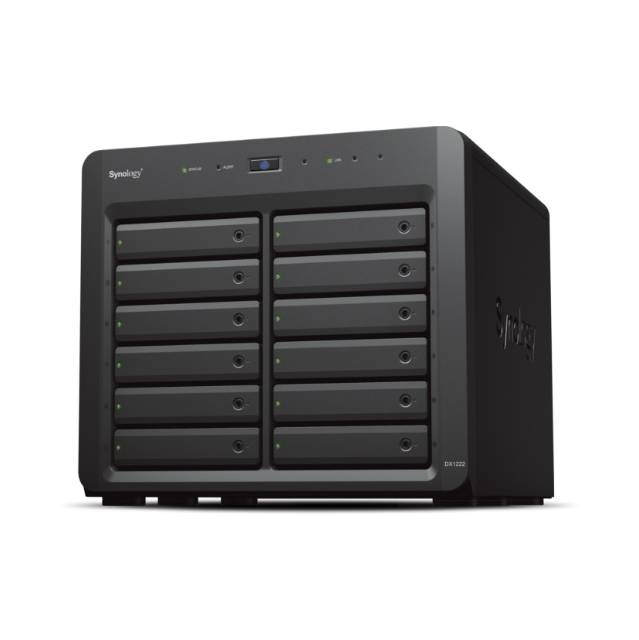

Name: Synology Dx1222 12-Bay Expansion Unit For Synology Diskstation (New Item!)
Brand: Synology
SKU: DX1222
Price: 2166.00 CAD
Availability: OutOfStock

Synology Dx1222 12-Bay Expansion Unit For Synology Diskstation (New Item!)

Roll over image to zoom in Click on image to zoom

Mfr Part Number: DX1222
Applied Models: Supports creating volumes across different units
- 22 series: DS3622xs+, DS2422+
- Notes: To have better performance, we recommend creating storage volumes physically located within the same NAS or Expansion Unit, rather than creating volumes across your NAS and Expansion Unit.
Storage:
- Drive Bays: 12
- Compatible Drive Type: 3.5" SATA HDD, 2.5" SATA HDD, 2.5" SATA SSD
- Maximum Internal Raw Capacity: 192 TB (16 TB drive x 12) (Capacity may vary by RAID types)
- Hot Swappable Drive: Yes
- RAID Management through Synology DSM: Yes
External Ports: 1
Power:
- Power Recovery: Synchronized with the Synology DiskStation
- Power Supply Unit / Adapter: 550 W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption: 57.71 W (Access); 16.25 W (HDD Hibernation)
- British Thermal Unit: 194.96 BTU/hr (Access); 55.48 BTU/hr (HDD Hibernation)
- Notes: Power consumption is measured when it is fully loaded with Western Digital 1TB WD10EFRX hard drive(s).
Temperature:
- Operating Temperature: 0C to 40C (32F to 104F)
- Storage Temperature: -20C to 60C (-5F to 140F)
- Relative Humidity: 5% to 95% RH
Others:
- System Fan: 120 mm x 120 mm x 2 pcs
- Easy Replacement System Fan: Yes
- Noise Level: 24.6 dB(A)
- Notes: Noise Level Testing Environment: Fully loaded with Seagate ST2000VN000 hard drive(s) in the idle state. Two G.R.A.S. Type 40AE microphones, each set up 1 meter away from the Synology expansion unit at the front and rear. Background noise: 16.49-17.51 dB(A); Temperature: 24.25-25.75C; Humidity: 58.2-61.8%.
Certification: UL, FCC, CE, BSMI, UKCA, EAC, VCCI, RCM, KC
Warranty: 5 Years
Environment: RoHS Compliant
Packaging Contents:
- Main Unit X 1
- Accessory Pack X 1
- AC Power Cord X 1
- Expansion Cable: MiniSAS-HD X 1
- Quick Installation Guide X 1
Optional Accessories: 3.5" SATA HDD: HAT5300, 2.5" SATA SSD: SAT5200
Dimensions (HxWxD): 270 mm x 300 mm x 340 mm
Weight: 9.02 kg

General Information

Manufacturer	Synology, Inc
Manufacturer Part Number	DX1222
Manufacturer Website Address	http://www.synology.com
Brand Name	Synology
Product Model	DX1222
Product Name	Expansion Unit DX1222
Product Type	Drive Enclosure
UPC	846504004195

Height	10.6"
Width	11.8"
Depth	13.4"
Weight (Approximate)	19.89 lb

Synology Dx1222 12-Bay Expansion Unit For Synology Diskstation (New Item!)

Description

Synology Dx1222 12-Bay Expansion Unit For Synology Diskstation (New Item!)
