SYBA Multimedia 4 Port SATA III PCI-e 3.0 x1 Card Non-Raid with Low Profile Bracket

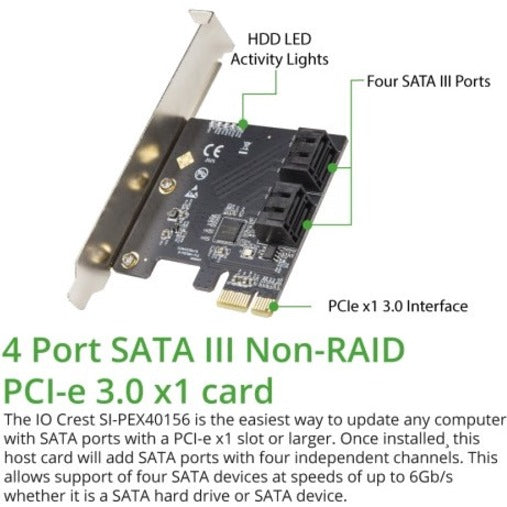

The SI-PEX40156 4 port SATA III PCI-e 3.0 x1 controller card ASMedia 1064 chipset adds four SATA III ports to a computer through a PCI-e 3.0 x1 slot, delivering multiple internal 6Gbps connections for SATA III hard drives and SSDs. With full support for SATA 3.0 hard drives and data transfer speeds of up to 6 Gaps, the controller card features a native PCI Express single chipset that provides enhanced compatibility, reliability and performance for SATA 600 MB/s storage needs.
- Chipset: ASMedia 1064
- 4 Internal SATA 6Gb/s Ports. SATA ports are bootable
- Compliant with Serial ATA Specification 3.0. Hot Plug and Hot Swap
- Compliant with PCI-Express Specification v1.0
- Supports Native Command Queue (NCQ). Supports Port Multiplier FIS Based Switching or Command Based Switching
- Supports UEFI(Unified Extensible Firmware Interface)
Product Type: SATA Controller
Environmentally Friendly: Yes
Environmental Certification: WEEE

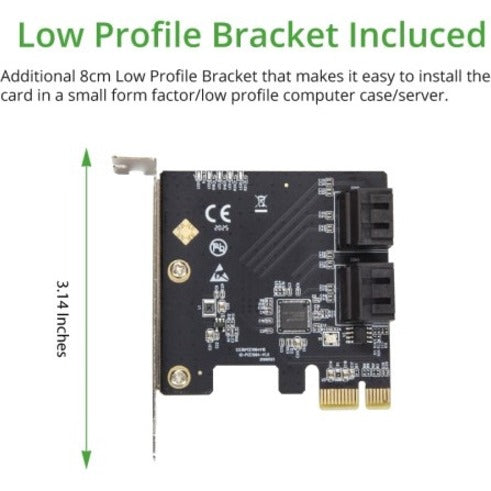

Card Height: Low-profile
Brand Name: SYBA Multimedia
Form Factor: Plug-in Card
Manufacturer: SYBA Multimedia, Inc
Product Name: 4 Port SATA III PCI-e 3.0 x1 Card Non-Raid with Low Profile Bracket
Manufacturer Part Number: SI-PEX40156
Manufacturer Website Address: http://www.syba.com
Packaged Quantity: 1
Platform Supported: PC
Package Contents:
- 4 Port SATA III PCI-e 3.0 x1 Card Non-Raid with Low Profile Bracket
- 1 x Driver CD
- 2 x 19" SATA Cable
- 1 x Standard and Low Profile Brackets
- 1 x User Manual
