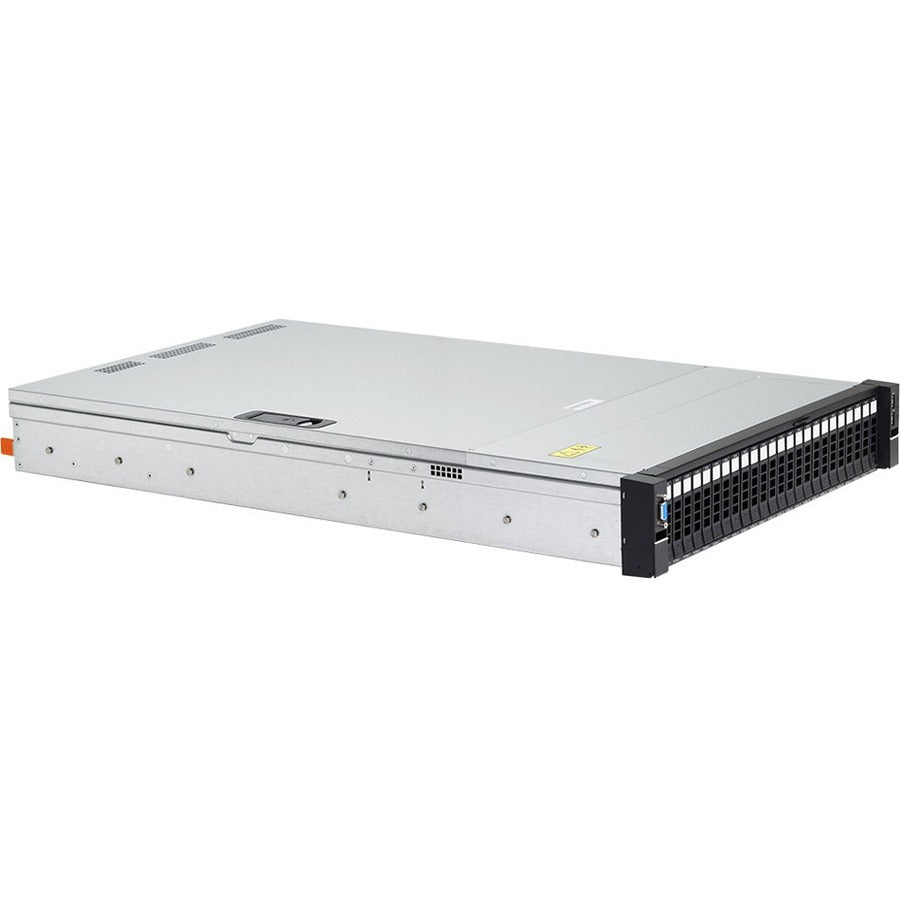

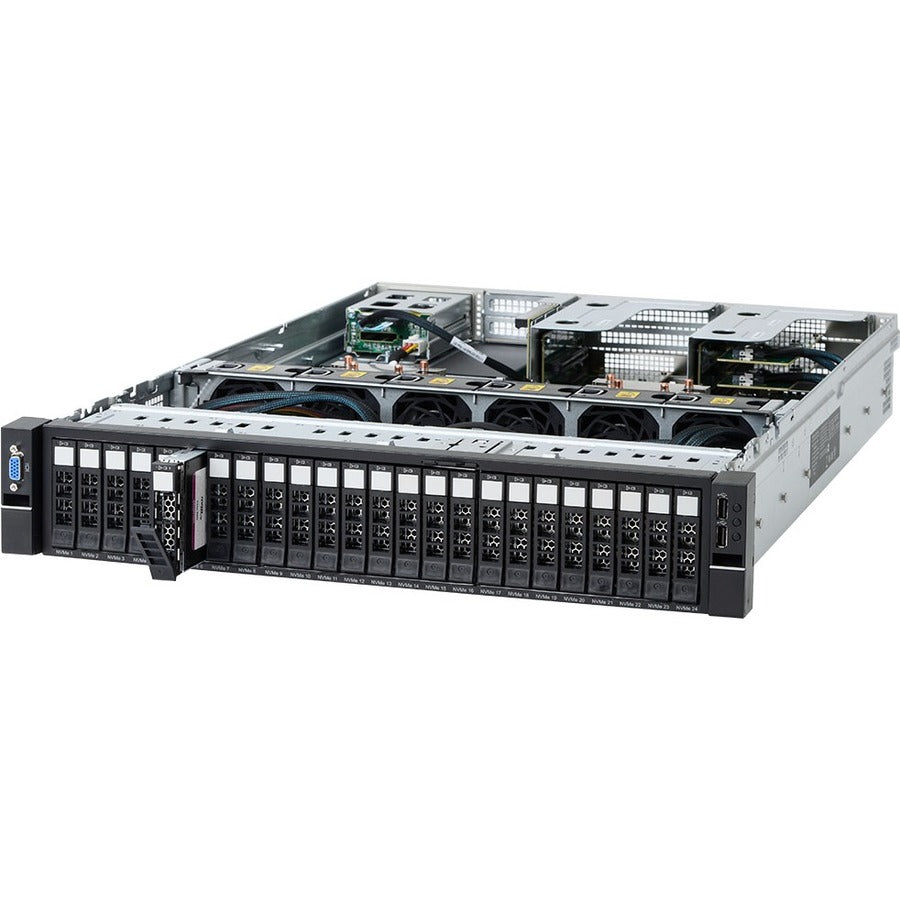

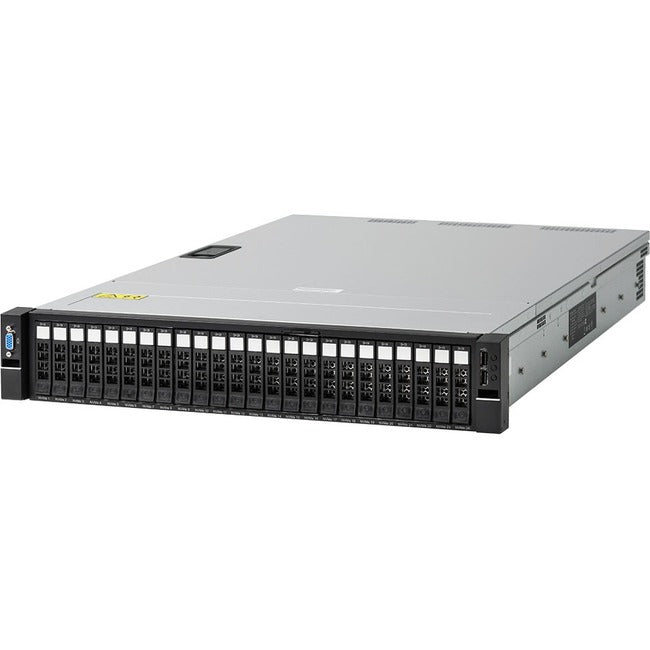

HGST Ultrastar Serv24 NVMe Storage Server
The Storage Server Platform for Software-Defined Storage
There is a never-ending need to increase data center performance for storageintensive applications. To fully realize the benefits of a software-defined storage (SDS) infrastructure, purpose-built storage platforms have become the preferred building blocks for many enterprise data centers.
The Ultrastar Serv24 is designed to be a performance-optimized platform for SDS. By integrating CPUs and NVMe™ SSDs in the same unit, our storage server provides a tested and validated building block for deploying the SDS stack on high-performance storage.
Designed for Fast Data
Flash technology has revolutionized the performance of storage systems; NVMe technology extends flash storage to its full potential. Built upon our storage expertise, the Ultrastar Serv24 features the latest Intel® Xeon® CPUs. Chipset, core count and power can be customized, providing the flexibility to meet varying requirements depending on data workload and performance requirements.
Whether as a stand-alone file server or part of a scale-out deployment, the Ultrastar Serv24 is built to deliver screaming performance in software-defined storage environments. With low latency and consistently high bandwidth, data is accelerated to the speed of flash.
Designed Enterprise and Cloud Data Centers
The Ultrastar Serv24 is designed to elevate flash performance in demanding, software-defined storage environments.
- Up to 184TB in a 2U unit

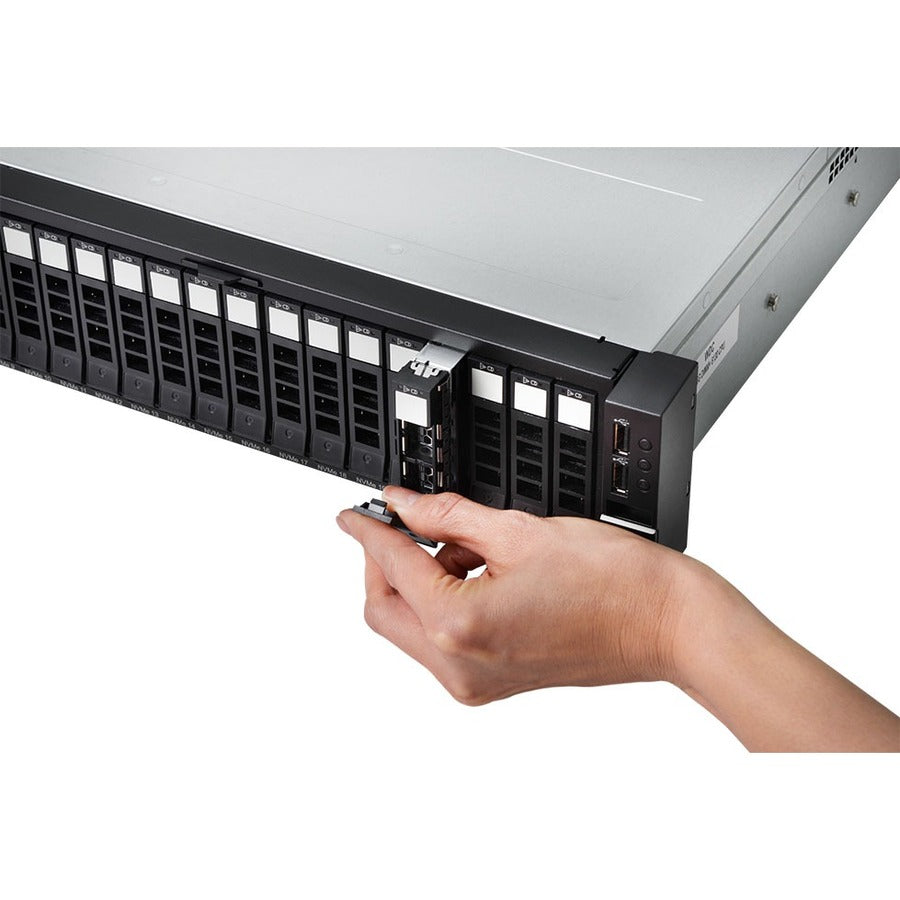

- Up to 24 NVMe SSDs with a range of capacities and endurance options

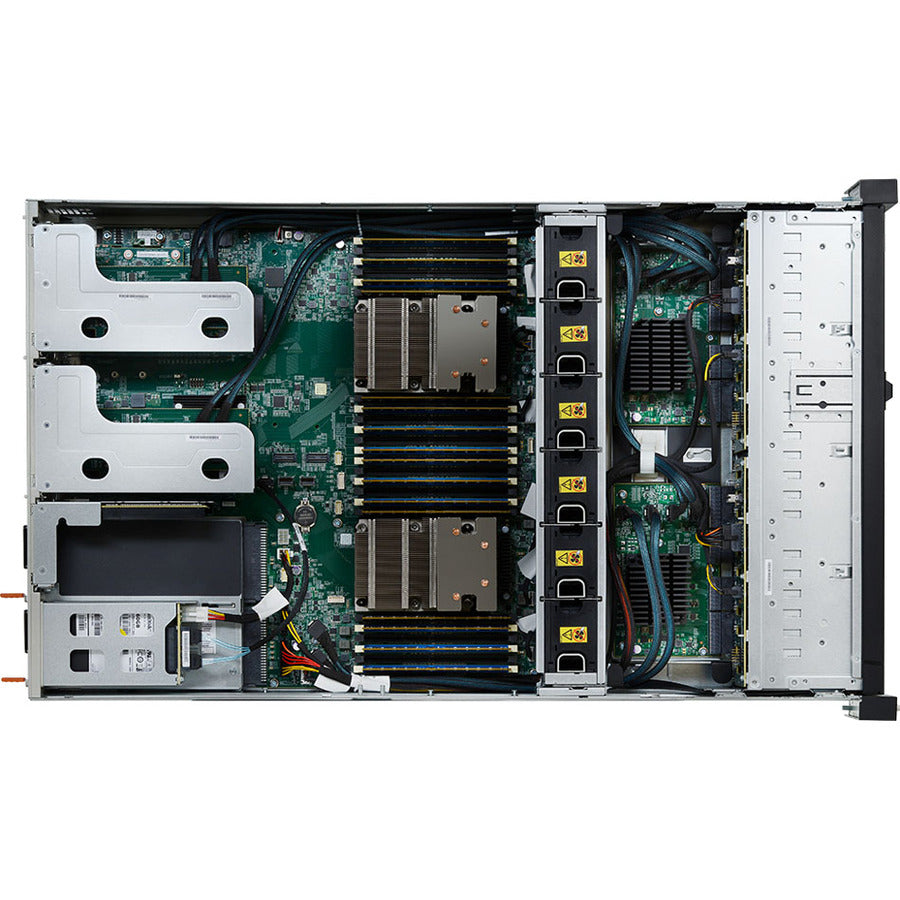

- High-performance Intel® "Purley"-based server with a choice of CPUs
- 2 512GB SSD boot drives
- 256GB DDR4 DRAM

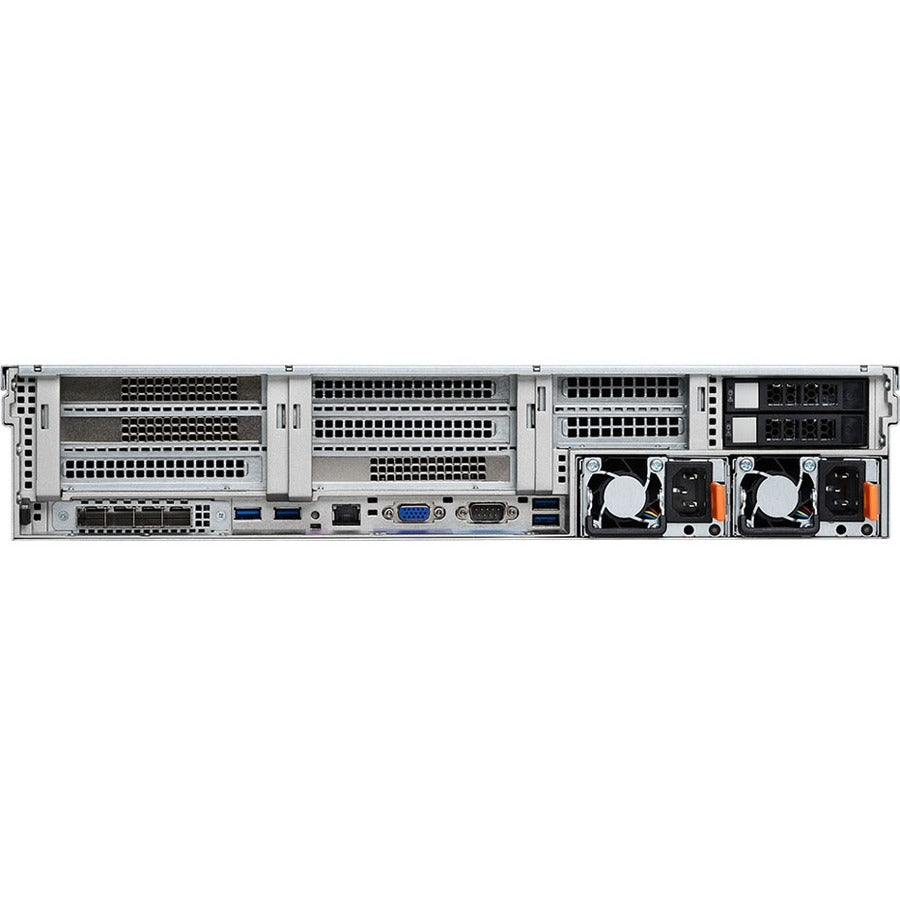

- 2-port 10GbE included
- 1-port 1GbE for system management
- 2 PCIe x16 slots available for add-in cards

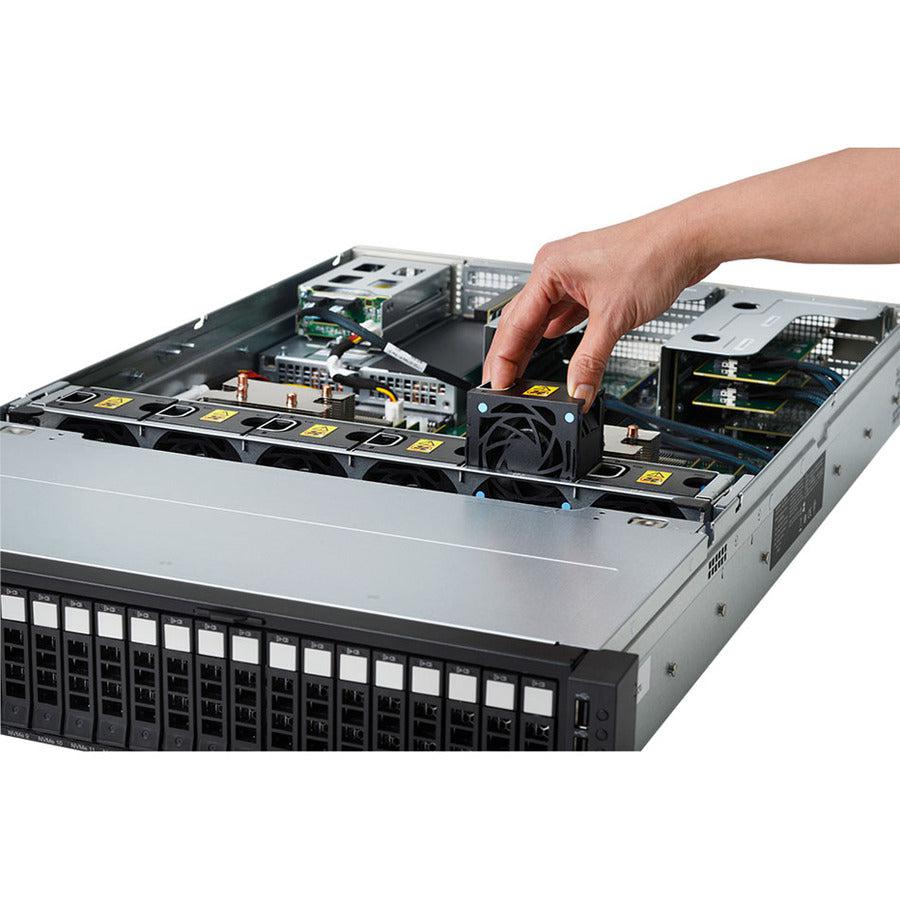

- Enterprise-grade redundant and hot-swappable PSUs and fans
Product Type: NAS Storage System
Rack Height: 2U
Brand Name: HGST
Form Factor: Rack-mountable
Manufacturer: Western Digital Corporation
Product Model: SS2U24PUR-1021
Product Name: Ultrastar Serv24 NVMe Storage Server
Product Line: Ultrastar Serv24
Manufacturer Part Number: 1ES1025
Manufacturer Website Address: http://www.wdc.com
Limited Warranty: 5 Year
Weight (Approximate): 54.90 lb
