Cisco Surge-Gap Tap 1.25 GHz, 4-way, 14 dB

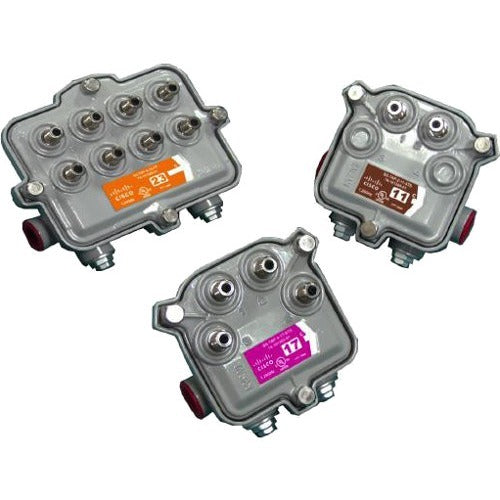

Standard Profile 2 and 4 Port Design/Full Profile 8 Port Design
The Cisco® 1.25 GHz Surge-Gap Tap product line is the latest evolution of the HFC network providing full support of the DOCSIS 3.1 standard. DOSCIS 3.1 support will allow MSOs to fully and efficiently utilize their broadband networks to provide the services that their subscribers demand. Support for DOCSIS 3.1 means that the frequency capabilities of the devices is increased to the full 1.218 GHz spectrum as well as full compatibility with the new OFDM signalling requirements. These new capabilities will allow MSOs to increase revenue generation by allowing increased capability across their networks to drive new and improved services to their customer base.
In addition to the new DOCSIS 3.1 capabilities, the Cisco 1.25 GHz Surge-Gap Tap product line continues to support IEEE-compliant 6 kV surge protection which provides protection against voltage transients in lightning strike areas and locations with unreliable power networks. In addition, the Cisco 1.25 GHz Surge-Gap Tap products offer the same "make-before-break" capabilities of previous Cisco tap products, which allow cable technicians to pull the tap's faceplate and perform maintenance without interrupting service to subscribers located downstream.
The Cisco 1.25 GHz Surge-Gap Tap is the latest addition to the Surge-Gap product line aimed at supporting DOCSIS 3.1 network architectures. Cisco 1.25 Surge-Gap Taps are an extended offering of Cisco's multimedia product family: Standard Profile 2 and 4 port products, as well as the Full Profile 8 port product.
- With this satellite splitter, split your CATV or satellite signal so that it can be used for more than one device
- Supports up to 1.25 GHz frequency
Product Type: Satellite Splitter
Brand Name: Cisco
Manufacturer: Cisco Systems, Inc
Product Name: Surge-Gap Tap 1.25 GHz, 4-way, 14 dB
Manufacturer Part Number: SG-TAP-4-14-STD
Manufacturer Website Address: http://www.cisco.com
Weight (Approximate): 10.93 oz
