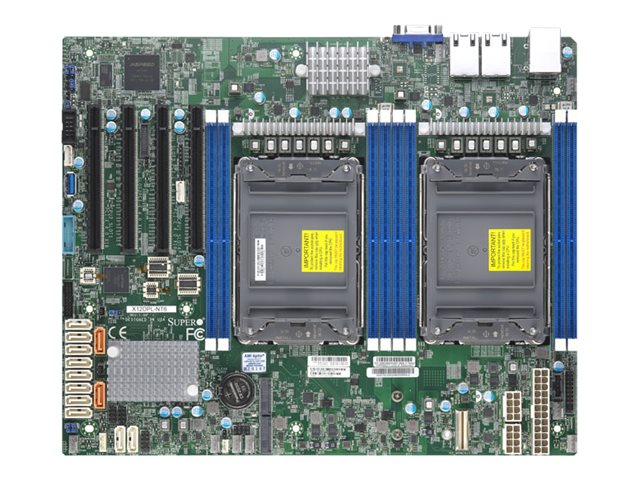

Name: Supermicro X12Dpl-Nt6 - Motherboard - Atx - Lga4189 Socket - 2 Cpus Supported - C621A Chipset
Brand: Supermicro
SKU: MBD-X12DPL-NT6-B
Price: 1506.00 CAD
Availability: InStock

Supermicro X12Dpl-Nt6 - Motherboard - Atx - Lga4189 Socket - 2 Cpus Supported - C621A Chipset

Roll over image to zoom in Click on image to zoom

Key Selling Points

3rd Gen Intel Xeon scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports up to 185W TDP, 2 UPI up to 11.2 GT/s
Intel C621A
Up to 2TB RDIMM, DDR4-3200MHz; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MHz, in 8 DIMM slots
4 PCI-E 4.0 x16
1 PCI-E 4.0 NVMe x8 internal port(s)
M.2 Interface: 2 PCI-E 4.0 x4
M.2 Form Factor: 2280/22110, 2280
M.2 Key: M-Key
1 VGA port
Intel C621A controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with Intel X550 10GBase-T Ethernet Controller

Main Specifications

Product Description

SUPERMICRO X12DPL-NT6 - motherboard - ATX - LGA4189 Socket - C621A

Product Type

Motherboard - ATX

Chipset Type

Intel C621A

Processor Socket

2 x LGA4189 Socket

Compatible Processors

Xeon (Maximum TDP 185 Watt)

Max RAM Size

2 TB

RAM Supported

8 DIMM slots - DDR4, ECC, registered, Load-Reduced, 3DS Load-Reduced

Storage Ports

12 x SATA-600 (RAID), 2 x M.2

USB / FireWire Ports

3 x USB 3.2 Gen 1 + (2 x USB 3.2 Gen 1 via headers)

Graphics

ASPEED AST2600

LAN

2 x 10 Gigabit Ethernet

Manufacturer Warranty

3-year warranty

Designed For

SCLA25TQC R609LP

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X12DPL-NT6-B
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Model	X12DPL-NT6
Product Name	X12DPL-NT6 Workstation Motherboard
Product Type	Workstation Motherboard

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2600

Total Number of USB Ports	2
Number of USB 3.2 Gen 1 Ports	2

Width	12.2"
Depth	10"
