Micro-ATX, 9.6" x 9.6", 64GB Unbuffered ECC SO-DIMM, DDR4-2133MHz, in 4 DIMM slots

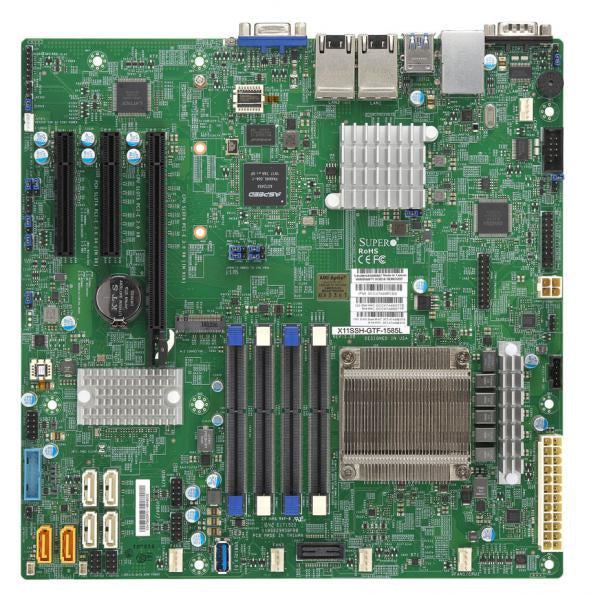

Supermicro X11SSH-GF-1585. Processor manufacturer: Intel, Intel Xeon series: E3-1585. Supported memory types: DDR4-SDRAM, Maximum internal memory: 64 GB, Memory voltage: 1.2 V. Supported storage drive interfaces: SATA. Motherboard form factor: micro ATX, Motherboard chipset: Intel® C236, Audio output channels: 2.0 channels. BIOS type: AMI, BIOS memory size: 128 Mbit
Intel® Xeon® processor E3-1585 v5,
Single socket FCBGA 1440,
4-Core, 8 Threads, 65W
Intel® C236 chipset
Up to 64GB ECC Unbuffered SO-DIMM,
DDR4 2133MHz; 4 DIMM slots
Support Intel® Iris Pro Graphics P580 (GT4e) ,
for VHD and Quick Sync Video
Expansion slots:
1 PCI-E 3.0 x8 (in x16),
1 PCI-E 3.0 x8,
1 PCI-E 3.0 x4 (in x8)
6 SATA3 (6Gbps) via C236; RAID 0, 1, 5, 10
2 SuperDOM with built-in power
5 USB 3.0 (2 rear, 1 Type A, 2 internal)
M.2 NGFF connector
