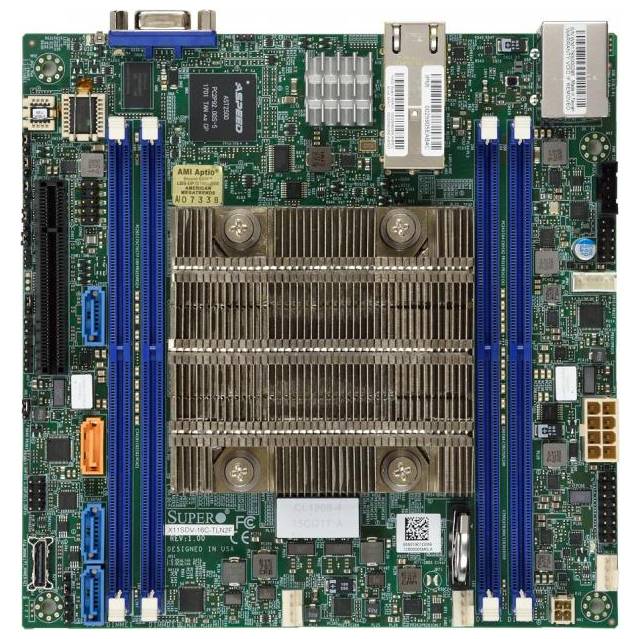

Name: Supermicro X11Sdv-4C-Tln2F-B Intel Xeon D-2123It/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Mini-Itx Motherboard & Cpu Combo
Brand: Supermicro
SKU: MBD-X11SDV-4C-TLN2F-B
Price: 1111.00 CAD
Availability: OutOfStock

Supermicro X11Sdv-4C-Tln2F-B Intel Xeon D-2123It/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Mini-Itx Motherboard & Cpu Combo

Roll over image to zoom in Click on image to zoom

Mfr Part Number: X11SDV-4C-TLN2F-B
CPU (Included): Intel Xeon D-2123IT Processor; Support up to 60W TDP (Quad-Core)
Chipset: System on Chip
Memory: 4x DDR4-2666/ 2400/ 2133 MHz DIMM Slots, Support up to 256GB ECC/REG Memory or up to 512GB ECC/ Load Reduced Memory
Slots: 1x PCI-Express 3.0 x8 Slot, 1x PCI-Express 3.0 x4 NVMe Internal Slot via OCuLink
SATA: 8x SATA3 Ports, Supports RAID 0, 1, 5, 10
Video: Aspeed AST2500 BMC Graphics
LAN: Dual Intel X557 10GBase-T Ethernet Controllers
Ports: 2x USB 3.0 Ports (rear), 2x USB 2.0 Ports (via header), 1x VGA Port, 2x RJ45 10GBase-T LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Mini-ITX, 6.75 x 6.75 inch / 17.15 x 17.15 cm
Intel Xeon D-2123IT is included with this motherboard.
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X11SDV-4C-TLN2F-B
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Model	X11SDV-4C-TLN2F
Product Name	X11SDV-4C-TLN2F Server Motherboard
Product Type	Server Motherboard
UPC	0672042324545

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Total Number of USB Ports	2

Width	6.8"
Depth	6.8"

Miscellaneous

Package Contents	X11SDV-4C-TLN2F Server Motherboard 2 x SATA Cables 1 x ATX Power Cable 1 x I/O Shield
Environmentally Friendly	Yes

Warranty

Limited Warranty	1 Year

Supermicro X11Sdv-4C-Tln2F-B Intel Xeon D-2123It/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Mini-Itx Motherboard & Cpu Combo

Description

Supermicro X11Sdv-4C-Tln2F-B Intel Xeon D-2123It/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Mini-Itx Motherboard & Cpu Combo
