With outstanding features that include fast DDR4 DRAM in 4 DIMMS, onboard IPMI or vPro, USB 3.0/USB 3.1, PCI-E 3.0 M.2 and SATA 3.0 (6Gbps) HDD. With support for next generation graphics controller, 4K HD graphics resolution and 3 displays with HDMI, DP, and DVI ports. Designed with performance, reliability, manageability and long life in mind, Supermicro's single processor motherboards are the perfect solution for a variety of server, workstation and embedded applications.
Main Specifications
Product Description

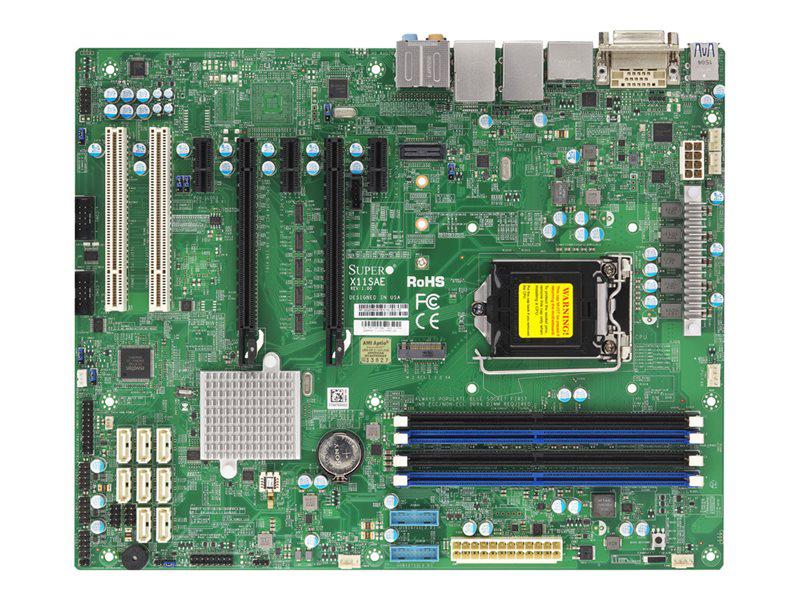

SUPERMICRO X11SAE - motherboard - ATX - LGA1151 Socket - C236
Product Type
Motherboard - ATX
Processor Socket
1 x LGA1151 Socket
Compatible Processors
Core i5, Core i3, Core i7, Xeon E3-1200 v5 series (Maximum TDP 95 Watt)
RAM Supported
4 DIMM slots - DDR4, ECC, unbuffered
Storage Ports
8 x SATA-600 (RAID), 1 x M.2
USB / FireWire Ports
2 x USB 3.1 + 2 x USB 3.0 + 2 x USB 2.0 + (4 x USB 3.0 + 6 x USB 2.0 via headers)
Audio
HD Audio (8-channel)
Manufacturer Warranty
3-year warranty
