Name: Supermicro X11Dpl-I - Motherboard - Atx - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X Gigabit Lan - Onboard Graphics
Brand: Supermicro
SKU: MBD-X11DPL-I-B
Price: 1076.00 CAD
Availability: OutOfStock

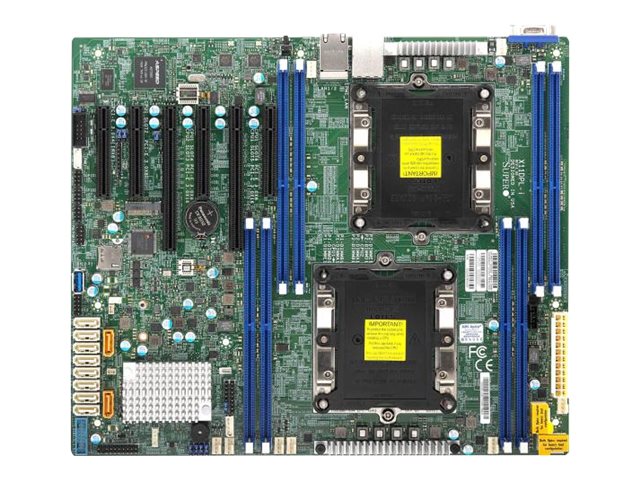

Supermicro X11Dpl-I - Motherboard - Atx - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X Gigabit Lan - Onboard Graphics

Roll over image to zoom in Click on image to zoom

Key Selling Points

Intel Xeon Processor Scalable Family
Dual Socket P (LGA 3647) supported
CPU TDP support Up to 140W, 2 UPI up to 10.4 GT/s
Intel C621
Up to 512GB Registered ECC RDIMM and DDR4-2666MHz
Up to 1TB Registered ECC LRDIMM, in 8 DIMM slots
2 PCI-E 3.0 x16
3 PCI-E 3.0 x8
1 PCI-E 3.0 x4 (in x8 slot)
M.2 Interface: PCIe 3.0 x4
M.2 Form Factor: 2260, 2280
1 VGA port(s)
Intel C621 controller for 10 SATA3 (6 Gbps) ports; RAID 0, 1, 5, 10
Dual LAN with Lewisburg
Marvell 88E1512 PHY

Main Specifications

Product Description

SUPERMICRO X11DPL-I - motherboard - ATX - Socket P - C621

Product Type

Motherboard - ATX

Chipset Type

Intel C621

Processor Socket

2 x Socket P

Compatible Processors

Xeon (Maximum TDP 140 Watt)

Max RAM Size

1 TB

RAM Supported

8 DIMM slots - DDR4, ECC, registered, Load-Reduced, 3DS Load-Reduced

Storage Ports

10 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports

1 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers)

Graphics

ASPEED AST2500

LAN

2 x Gigabit Ethernet

Manufacturer Warranty

3-year warranty

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X11DPL-I-B
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Model	X11DPL-I
Product Name	X11DPL-I Server Motherboard
Product Type	Server Motherboard
UPC	0672042272341

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Total Number of USB Ports	2

Width	12.1"
Depth	10.2"

Supermicro X11Dpl-I - Motherboard - Atx - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X Gigabit Lan - Onboard Graphics

Description

Main Specifications

Supermicro X11Dpl-I - Motherboard - Atx - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X Gigabit Lan - Onboard Graphics
