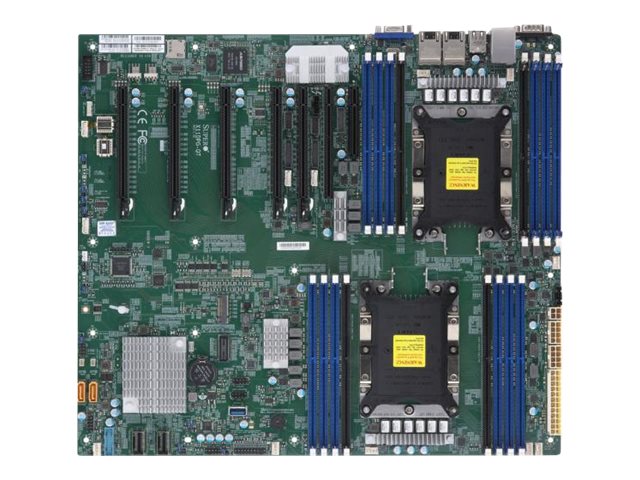

Name: Supermicro X11Dpg-Qt - Motherboard - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X 10 Gigabit Lan - Onboard Graphics - Hd Audio (8-Channel)
Brand: Supermicro
SKU: MBD-X11DPG-QT-B
Price: 1754.00 CAD
Availability: OutOfStock

Supermicro X11Dpg-Qt - Motherboard - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X 10 Gigabit Lan - Onboard Graphics - Hd Audio (8-Channel)

Roll over image to zoom in Click on image to zoom

Key Selling Points

Intel C621 controller for 10 SATA3 ports, RAID 0,1,5,10
Dual LAN with Intel X550 10GBase-T Ethernet controller
Integrated IPMI 2.0 and KVM with dedicated LAN
5 USB 3.0 ports, 4 USB 2.0 ports
HD audio with optical S/PDIF

Main Specifications

Product Description

SUPERMICRO X11DPG-QT - motherboard - Socket P - C621

Product Type

Motherboard

Chipset Type

Intel C621

Processor Socket

2 x Socket P

Compatible Processors

Xeon (supports CPUs with up to 28 cores, Maximum TDP 205 Watt)

Data Bus Transfer Rate

10.4 GT/s

Max RAM Size

2 TB

RAM Supported

16 DIMM slots - DDR4, ECC, registered, Load-Reduced, 3DS Load-Reduced, 3DS registered

Storage Ports

10 x SATA-600 (RAID), 1 x M.2

USB / FireWire Ports

3 x USB 3.0 + 2 x USB 2.0 + (2 x USB 3.0 + 2 x USB 2.0 via headers)

Graphics

ASPEED AST2500

Audio

HD Audio (8-channel)

LAN

2 x 10 Gigabit Ethernet

Manufacturer Warranty

3-year warranty

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X11DPG-QT-B
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Model	X11DPG-QT
Product Name	X11DPG-QT Server Motherboard
Product Type	Server Motherboard
UPC	672042286911

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Total Number of USB Ports	4

Width	15.1"
Depth	13.2"

Supermicro X11Dpg-Qt - Motherboard - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X 10 Gigabit Lan - Onboard Graphics - Hd Audio (8-Channel)

Description

Main Specifications

Supermicro X11Dpg-Qt - Motherboard - Socket P - 2 Cpus Supported - C621 Chipset - Usb 3.0 - 2 X 10 Gigabit Lan - Onboard Graphics - Hd Audio (8-Channel)
