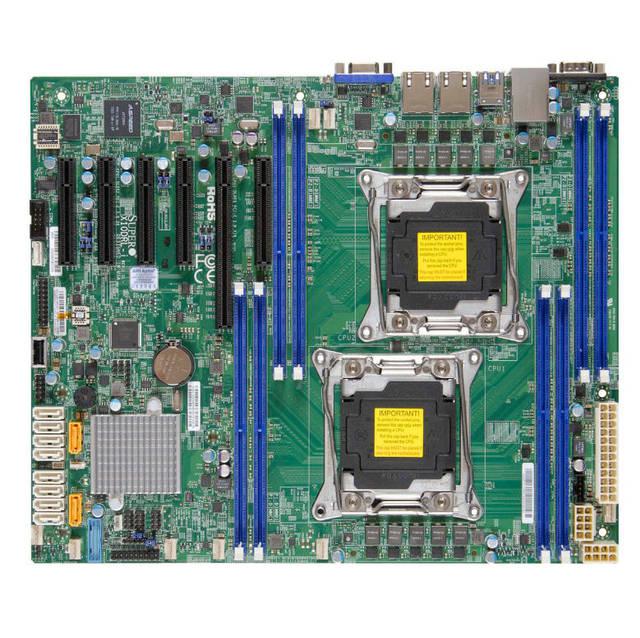

Name: Supermicro X10Drl-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Atx Server Motherboard
Brand: Supermicro
SKU: MBD-X10DRL-I-B
Price: 919.00 CAD
Availability: OutOfStock

Supermicro X10Drl-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Atx Server Motherboard

Roll over image to zoom in Click on image to zoom

✅⚠️Availability Check: This item may have limited stock. Reach out to confirm before purchasing: Chat or email [email protected]

Mfr Part Number: X10DRL-I-B
CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Support up to 45MB Cache
- QPI up to 9.6 GT/s
- Support up to 145W TDP
Chipset: Intel C612 Express
Memory: 8x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 512GB ECC/Load Reduced Memory or up to 256GB ECC/REG Memory
Slots: 1x PCI-Express 3.0 x16 Slot, 4x PCI-Express 3.0 x8 Slots (one runs at x4), 1x PCI-Express 2.0 x8 Slot (runs at x4)
SATA: 10x SATA3 Ports, Six Support RAID 0, 1, 5, 10, Two Support SATA DOM
Video: Aspeed AST2400 BMC Graphics
LAN: Intel i210 Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
Ports: 4x USB 3.0 Ports (2 rear, 2 via header), 5x USB 2.0 Ports (2 rear, 2 via header, 1 Type A), 1x VGA Port, 3x Serial Ports (1 via header, 2x Fast UART 16550), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: ATX, 12.00 x 10.00 inch / 30.48 x 25.40 cm
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X10DRL-I-B
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Model	X10DRL-i
Product Name	X10DRL-i Server Motherboard
Product Type	Server Motherboard
UPC	641676321596

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400

Total Number of USB Ports	4

Width	12"
Depth	10"

Supermicro X10Drl-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Atx Server Motherboard

Description

Supermicro X10Drl-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Atx Server Motherboard
