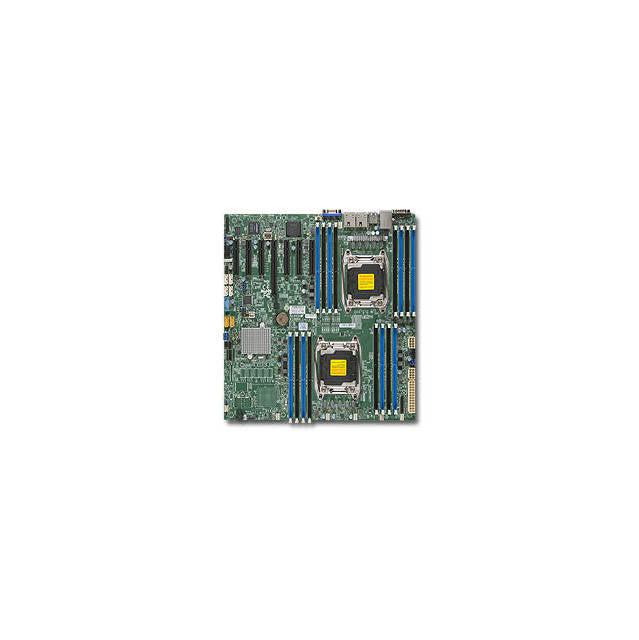

Name: Supermicro X10Drh-It-O Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Eatx Server Motherboard
Brand: Supermicro
SKU: MBD-X10DRH-IT-O
Price: 1271.00 CAD
Availability: OutOfStock

Supermicro X10Drh-It-O Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Eatx Server Motherboard

Roll over image to zoom in Click on image to zoom

Mfr Part Number: X10DRH-IT-O
CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Support up to 45MB Cache
- QPI up to 9.6 GT/s
- Support up to 145W TDP
Chipset: Intel C612 Express
Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Support up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
Slots: 1x PCI-Express 3.0 x16 Slot, 6x PCI-Express 3.0 x8 Slots
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: Aspeed AST2400 BMC Graphics
LAN: Intel X540 Dual Port 10-Gigabit Ethernet Controller, 1x Realtek RTL8211E PHY (dedicated IPMI)
Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via header), 1x VGA Port, 2x Serial Ports (1 rear, 1 via header), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: EATX, 12.0 x 13.0 inch / 30.5 x 33.2 cm
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X10DRH-IT-O
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Model	X10DRH-iT
Product Name	X10DRH-iT Server Motherboard
Product Type	Server Motherboard
UPC	0672042171217

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400

Total Number of USB Ports	4

Width	12"
Depth	13"

Environmentally Friendly	Yes

Supermicro X10Drh-It-O Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Eatx Server Motherboard

Description

Supermicro X10Drh-It-O Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Eatx Server Motherboard
