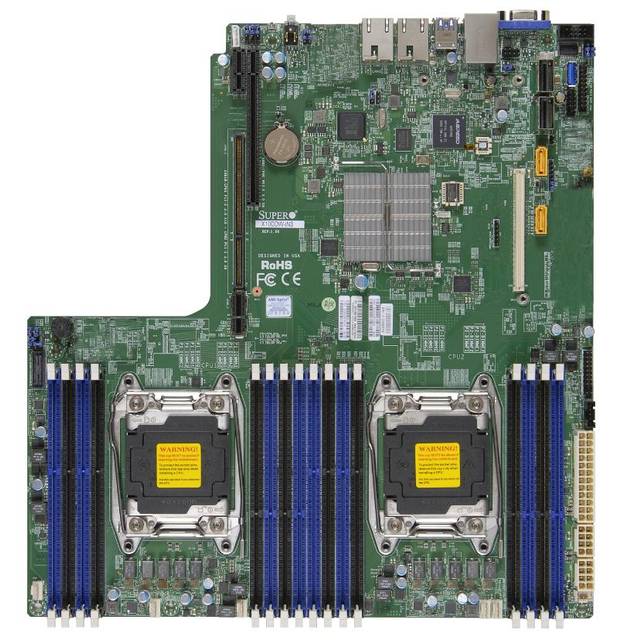

Name: Supermicro X10Ddw-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Proprietary Wio Server Motherboard
Brand: Supermicro
SKU: MBD-X10DDW-I-B
Price: 983.00 CAD
Availability: InStock

Supermicro X10Ddw-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Proprietary Wio Server Motherboard

Roll over image to zoom in Click on image to zoom

Mfr Part Number: X10DDW-I-B
CPU: Dual LGA2011
- Support Intel Xeon E5-2600 v3 Family Processors
- Support up to 18 Cores
- Support up to 45MB Cache
- QPI up to 9.6 GT/s
- Support up to 145W TDP
Chipset: Intel C612 Express
Memory: 16x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, Supports up to 1TB ECC/Load Reduced Memory or up to 512GB ECC/REG Memory
Slots: 1x PCI-Express 3.0 x24 Slot (Left riser), 1x PCI-Express 3.0 x8 Slot (Right riser), 1x PCI-Express 3.0 x8 (Add-on module)
SATA: 10x SATA3 Ports, Support RAID 0, 1, 5, 10
Video: ASPEED AST2400 BMC Graphics
LAN: Intel i350 Dual Port Gigabit Ethernet Controller; 1x Realtek RTL8211E PHY (dedicated IPMI)
Ports: 3x USB 3.0 Ports (2 rear, 1 Type A), 4x USB 2.0 Ports (2 rear, 2 via headers), 1x VGA Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: Proprietary WIO, 12.8 x 13.4 inch / 32.5 x 34.0 cm
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	MBD-X10DDW-I-B
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Series	X10
Product Model	X10DDW-i
Product Name	X10DDW-i Server Motherboard
Product Type	Server Motherboard
UPC	672042156702

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2400

Total Number of USB Ports	4

Width	13.4"
Depth	12.8"

Supermicro X10Ddw-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Proprietary Wio Server Motherboard

Description

Supermicro X10Ddw-I-B Dual Lga2011/ Intel C612/ Ddr4/ Sata3&Usb3.0/ V&2Gbe/ Proprietary Wio Server Motherboard
