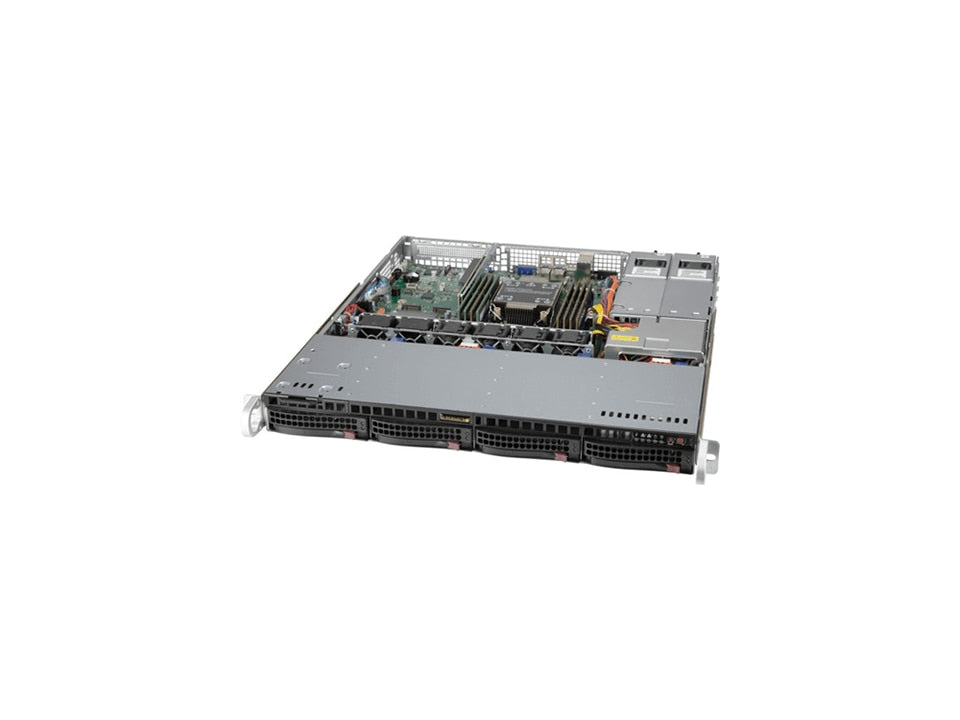

Name: Supermicro Sys-510P-Mr Server Rack (1U) Intel® Xeon® 3000 Sequence 400 W Ddr4-Sdram
Brand: Supermicro
SKU: SYS-510P-MR
Price: 2845.00 CAD
Availability: InStock

Supermicro Sys-510P-Mr Server Rack (1U) Intel® Xeon® 3000 Sequence 400 W Ddr4-Sdram

Roll over image to zoom in Click on image to zoom

3rd Gen Intel Xeon Scalable processors, Up to 36C/72T; Up to 60MB Cache, 8 DIMM slots, 3200/2933/2666MHz ECC DDR4 RDIMM;LRDIMM, 1.25 V, SATA3 (6Gbps); RAID 0/1/5/10 support, NVMe; RAID 0/1/5/10 support, Intel C621A, 2x 1GbE BaseT with Intel i350, AMI 32MB SPI Flash EEPROM, 1U Rackmount

Supermicro SYS-510P-MR. Processor family: Intel® Xeon® 3000 Sequence. Internal memory type: DDR4-SDRAM. Ethernet LAN. Power supply: 400 W, Redundant power supply (RPS) support. Chassis type: Rack (1U)

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-510P-MR
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperServer
Product Model	SYS-510P-MR
Product Name	UP SuperServer SYS-510P-MR
Product Type	Barebone System
UPC	0672042421459

Chipset

Chipset Manufacturer	Intel

Ethernet Technology	Gigabit Ethernet

Total Number of USB Ports	11
Number of USB 3.2 Gen 1 Ports	5

Power Description

Maximum Power Supply Wattage	400 W

Product Color	Black
Height	1.7"
Width	17.2"
Depth	20"
Weight (Approximate)	17.60 lb

Miscellaneous

Package Contents

UP SuperServer SYS-510P-MR
1 x Super X12SPO-F Motherboard
1 x 1U Chassis
1 x 4-port 1U SAS3 12Gbps Hybrid backplane, support up to 4x 3.5-inch SAS3/SATA3/NVMe Storage Devices
1 x MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
1 x 510P-M/MR Quick Reference Guide
1 x 1U LHS Standard riser card with one PCI-E 4.0 x16 slot,HF,Ro
1 x License key for enabling OOB BIOS management
1 x 1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
2 x AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH
1 x Power Distributor With 24pin for SC813M
1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
2 x PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
1 x Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
4 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
1 x Front control board dual color for SC815,SC813M (C)
4 x Black gen 5.5 hot-swap 3.5" HDD tray
1 x STD rear window for SC113 redundant PWS
1 x Redundant Silver plastic PDB cover for SC813M,113M
1 x 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
1 x Outer rail, quick-release type, 25.6\ to 33.05\"
1 x Inner rail

Warranty

Limited Warranty	1 Year

Supermicro Sys-510P-Mr Server Rack (1U) Intel® Xeon® 3000 Sequence 400 W Ddr4-Sdram

Description

Supermicro Sys-510P-Mr Server Rack (1U) Intel® Xeon® 3000 Sequence 400 W Ddr4-Sdram
