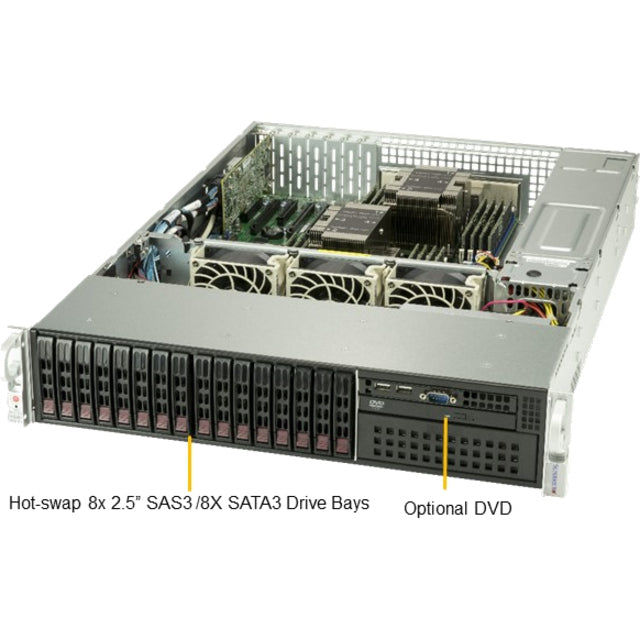

1. Dual socket P (LGA 3647) supports Intel® Xeon® Scalable Processors, Dual UPI up to 10.4GT/s 2. Up to 2TB ECC 3DS LRDIMM, up to DDR4-2666MHz; 16 DIMM slots 3. 4 PCI-E 3.0 x16, 1 PCI-E 3.0 x8 slots, support 5 low-profile AOCs 4. 8x 2.5" SAS3 & 8x 2.5" SATA3 Hot-swap Drive Bays, optional DVD-ROM drive, optional support 2 NVMe/SSD/HDD 2.5" fix drives, 1 M.2 support 5. 2x 1GbE LAN ports with Intel® X722 6. Integrated IPMI 2.0 with KVM and Dedicated LAN 7. 2 SuperDOM, 1 VGA, 2 COM, 2 USB 3.0, 4 USB 2.0, 1 Type A 8. 3 Heavy duty 8cm fans with PWM fan speed and cooling zone control 9. 1200W Redundant Power Supplies Titanium Level (96%)
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-2029P-C1R
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
2029P-C1R
Product Name
SuperServer 2029P-C1R (Black)
Product Type
Barebone System
UPC
0672042292103
Chipset
Chipset Manufacturer
Intel
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Ethernet Technology
Gigabit Ethernet
Total Number of USB Ports
7
Power Description
Maximum Power Supply Wattage
1200 W
Product Color
Black
Height
3.5"
Width
17.2"
Depth
24.8"
Weight (Approximate)
38 lb
Miscellaneous
Package Contents
SuperServer 2029P-C1R (Black)
1 x Super X11DPi-N Motherboard
1 x 2U Black SC213AC Chassis
1 x LSI 3108 based SAS3 RAID, 12Gb, 8 internal ports, 16 drives with expander - RAID 0,1,10,5,6,50,60, Gen3 x8 Standard Low Profile
1 x 16-port 2U SAS3 12Gbps direct-attached backplane, support up to 16x 2.5-inch SAS3/SATA3 HDD/SSD
2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
2 x MINI SAS HD-MINI SAS,6G,INT,50CM,SB,30AWG
1 x MINI SAS HD,12G,INT,50CM,30AWG
1 x MINI SAS HD,12G,INT,35CM,30AWG
1 x Black USB/COM port tray for SC825, 836
1 x STD I/O shield for X9 socket R server MB with Gasket.
1 x SYS-2029P-C1R/SYS-2029P-C1RT, QRG
1 x 2U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
1 x 2U Passive CPU Heat Sink with a Side Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
