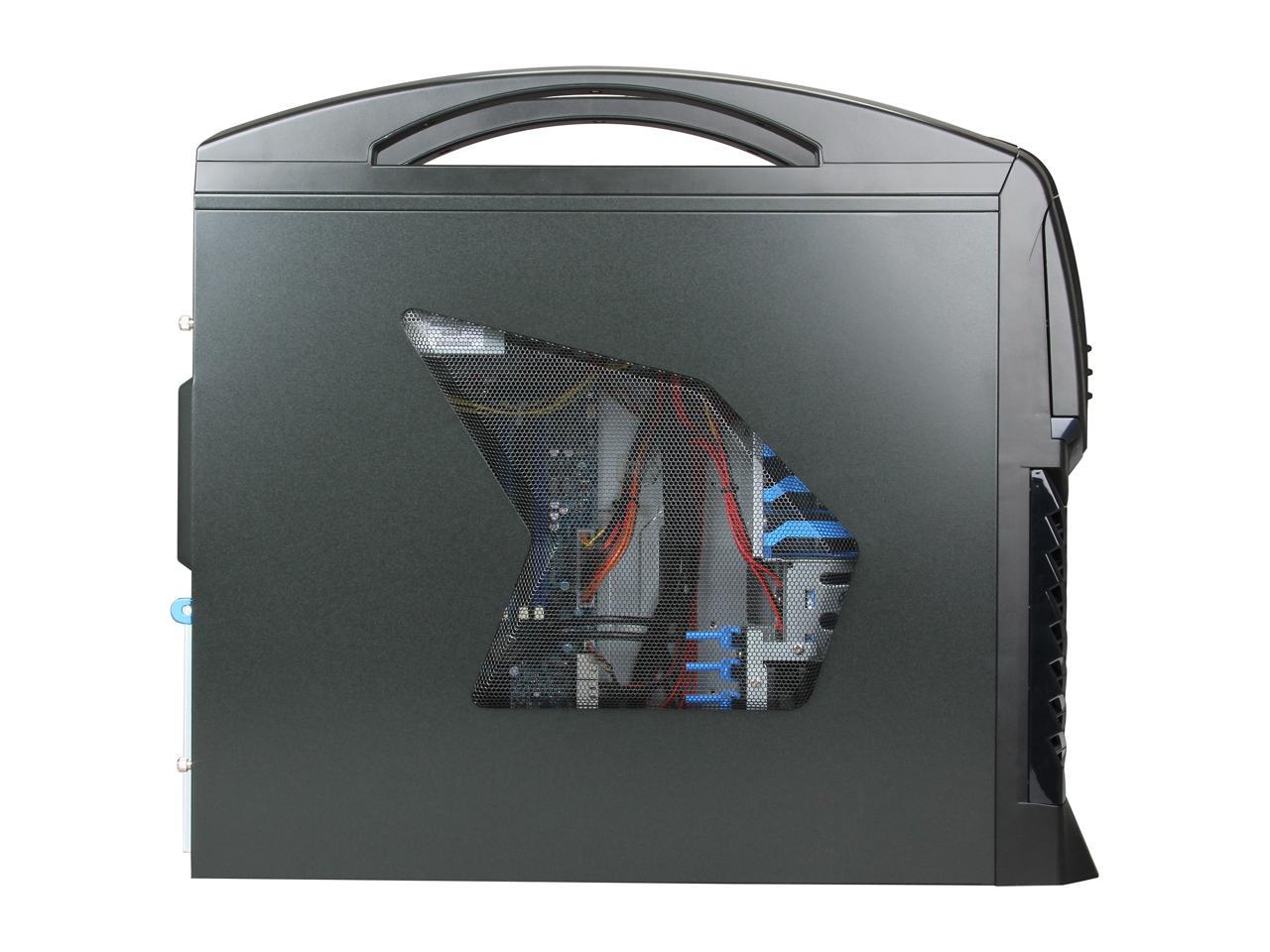

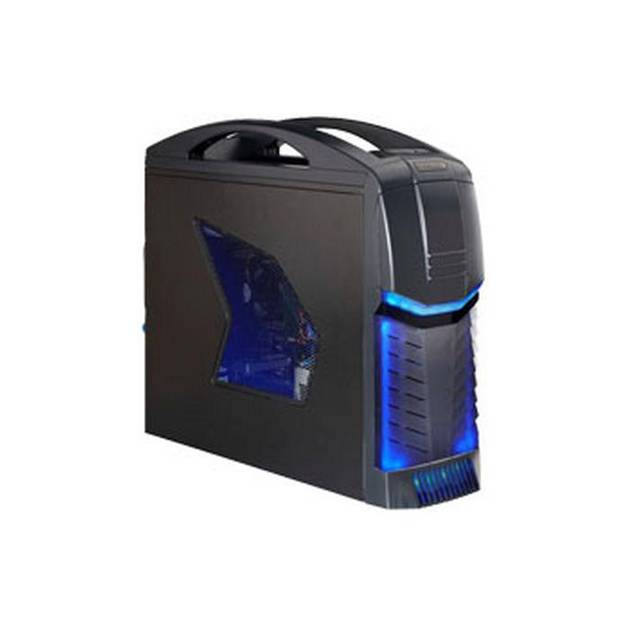

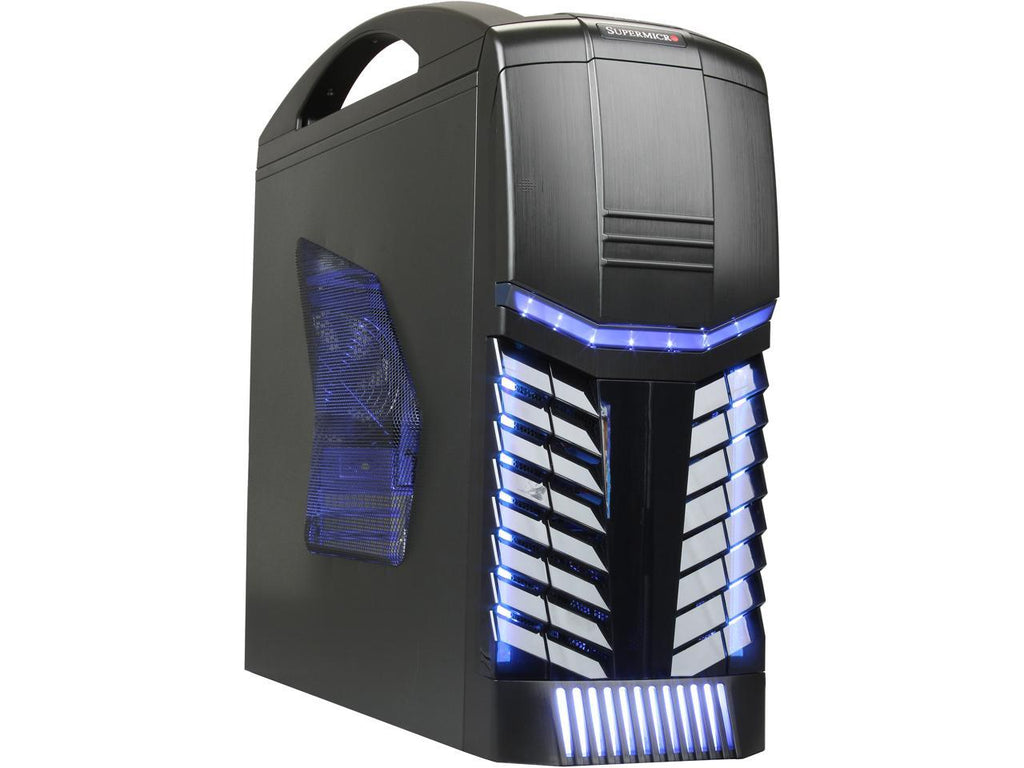

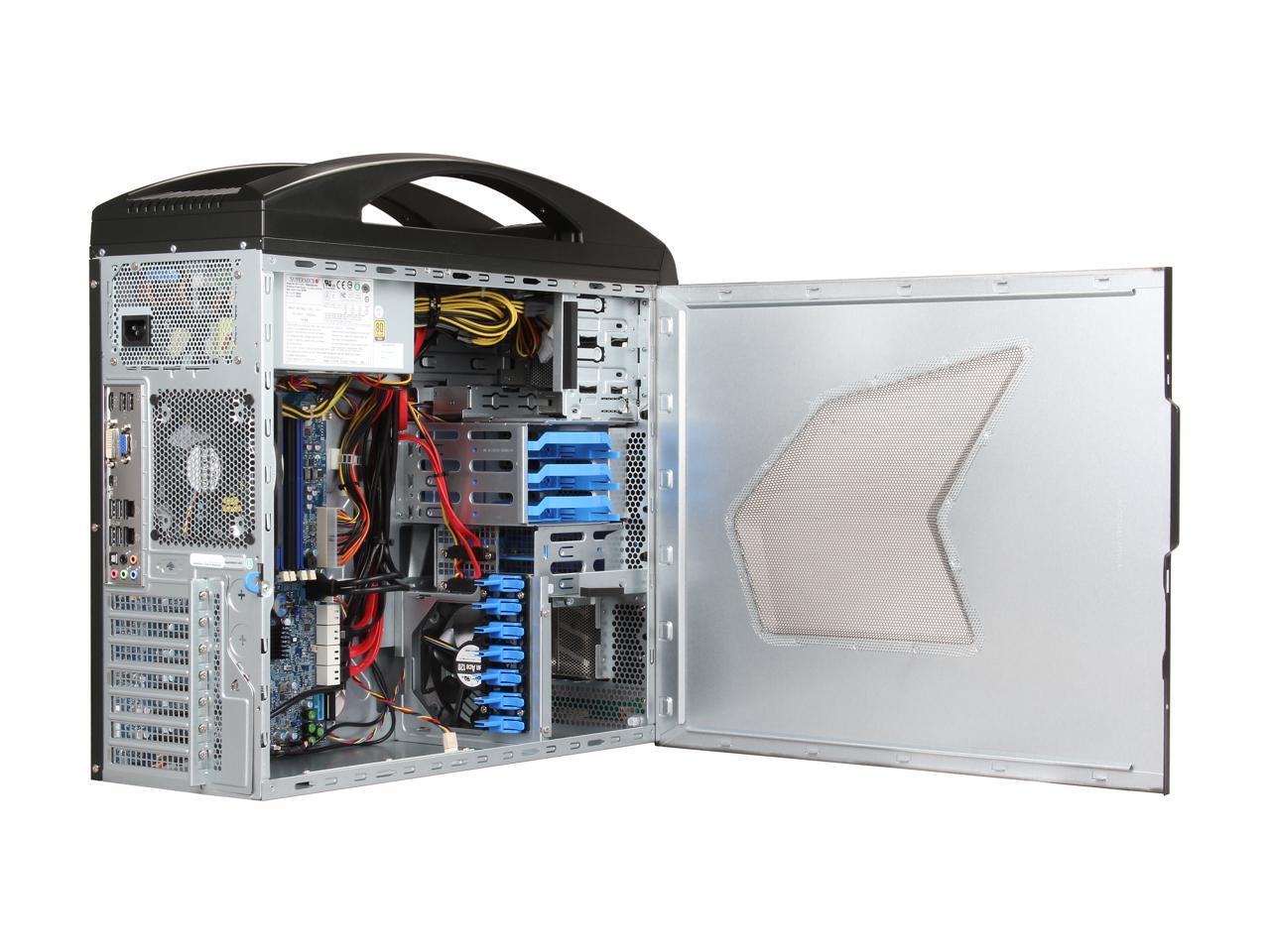

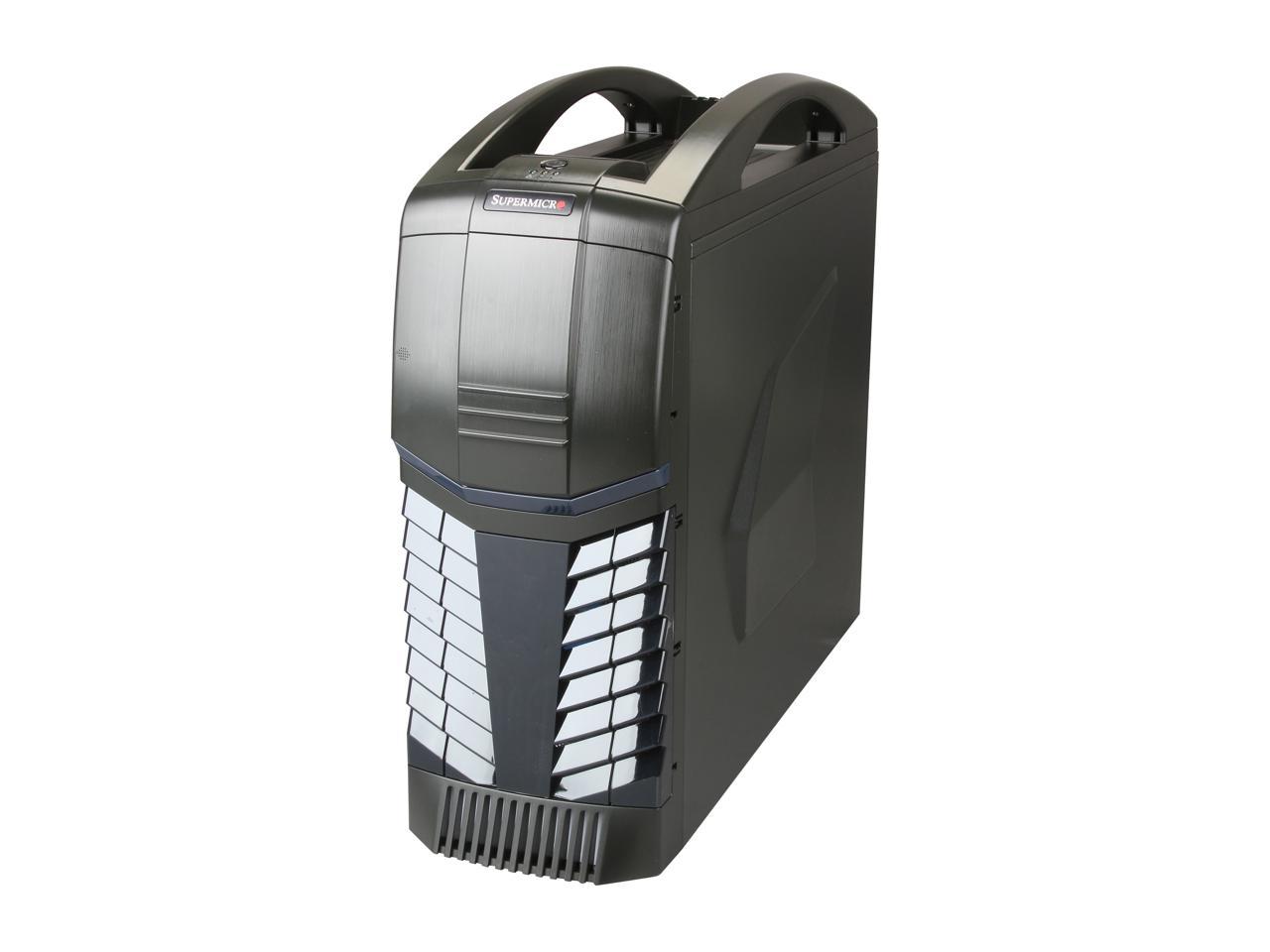

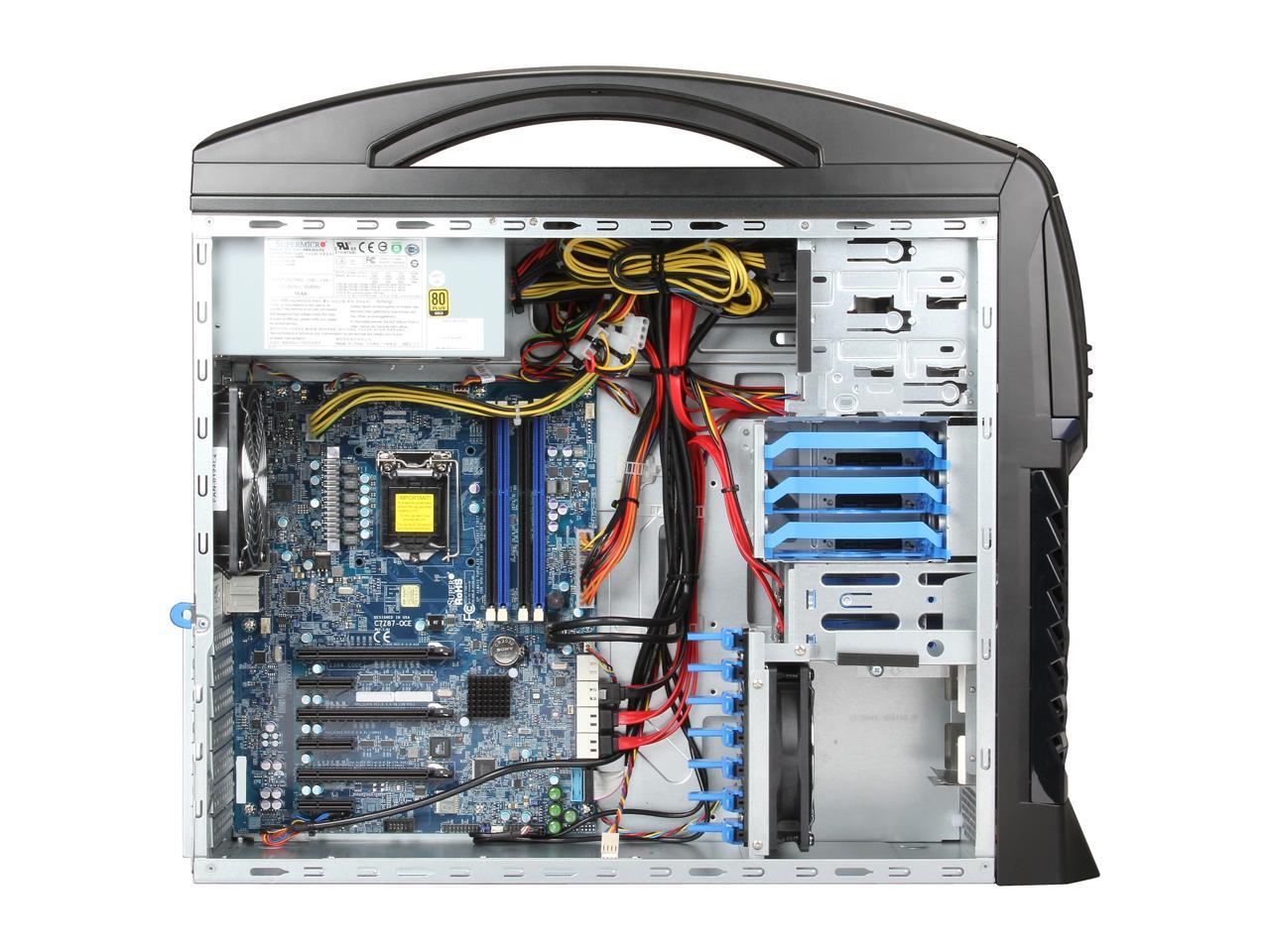

Name: Supermicro Superworkstation Sys-5038Ad-T Lga1150 900W Mid-Tower Workstation Barebone System (Black)
Brand: Supermicro
SKU: SYS-5038AD-T
Price: 1591.00 CAD
Availability: OutOfStock

Supermicro Superworkstation Sys-5038Ad-T Lga1150 900W Mid-Tower Workstation Barebone System (Black)

Roll over image to zoom in Click on image to zoom

1 x LGA 1150 Support Intel 4th Gen Core i7 / i5 / i3
4 x 240Pin Memory Slots (Max 32GB)
6x SATA3 via PCH
2x SATA3 ASM1061
900W AC multi output power supply w/ PMBus, 80 PLUS Gold

Model
Brand	SUPERMICRO
Series	SuperServer
Model	SYS-5038AD-T

CPU Supported
CPU Type	Intel 4th Gen Core i7 / i5 / i3
CPU Socket	LGA 1150
Installed CPU	No CPU Installed
Max Processors	1

Chipset
North Bridge	Intel Z87

Memory Supported
Memory Slots	4 x 240Pin
Installed Memory Size	No Memory Installed
Max Memory Supported	32GB
Memory Type Supported	DDR3 1600

Storage Supported
Installed HDD	No Storage Installed
Serial ATA	6x SATA3 (6Gbps) ports via PCH 2x SATA3 (6Gbps) ports via ASM1061
SATA RAID	RAID 0/1/5/10

Expansion Slots
PCI Express	3 (x16) PCI-E 3.0 slots - Function as: 16/NA/NA or 8/8/NA or 8/4/4 3 (x1) PCI-E 2.0 in x4 slots

Audio
Onboard Audio	RealTek ALC1150 High Definition Audio

Communications
First LAN	Intel I210-AT
Second LAN	Intel I217-LM
Max. LAN Speed	Dual 10/100/1000Mbps

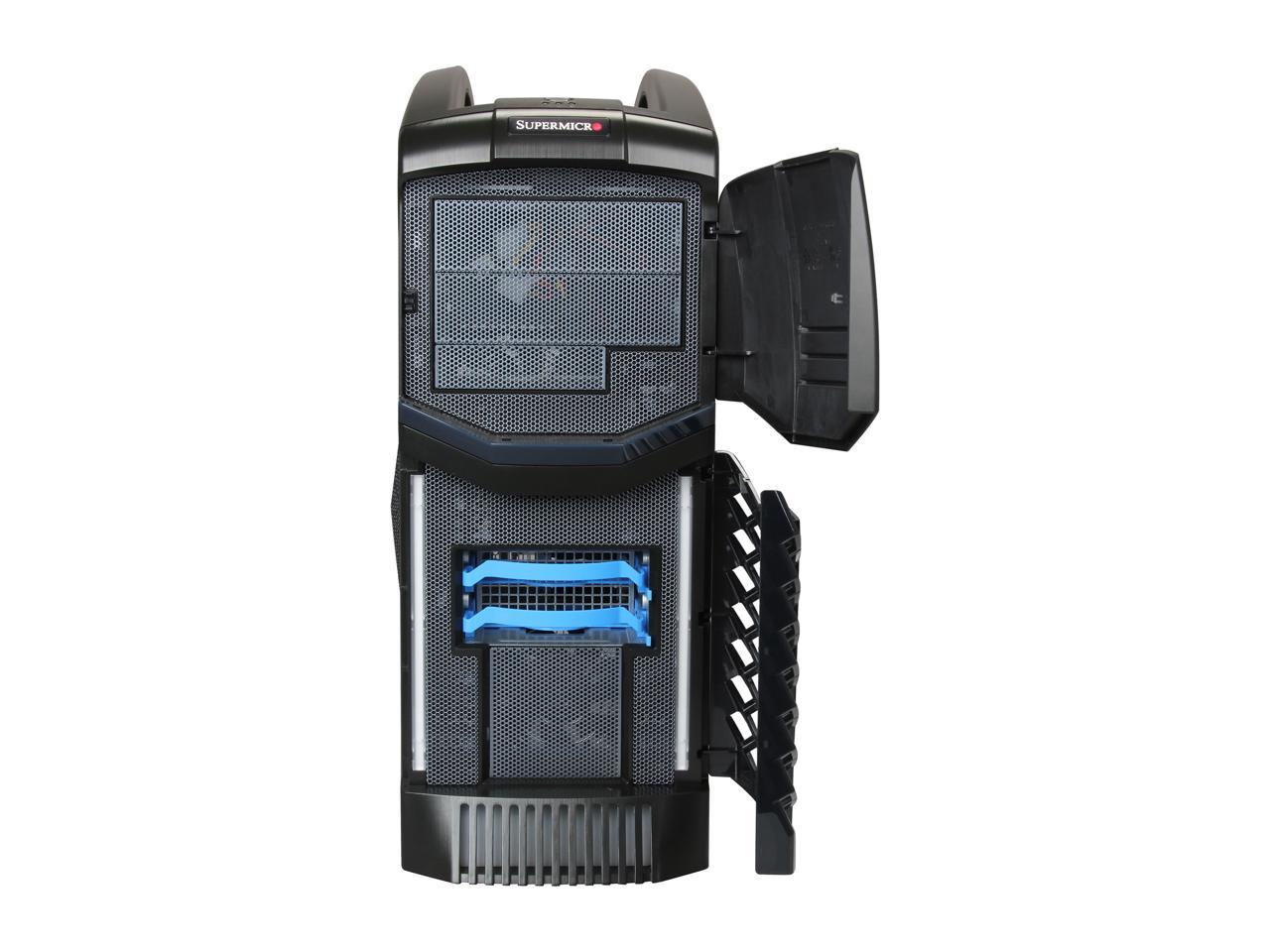

Expansion Bays
3.5" Bays	3
5.25" Bays	2
Hot-Swap Bays	4x 2.5", 2x 3.5"

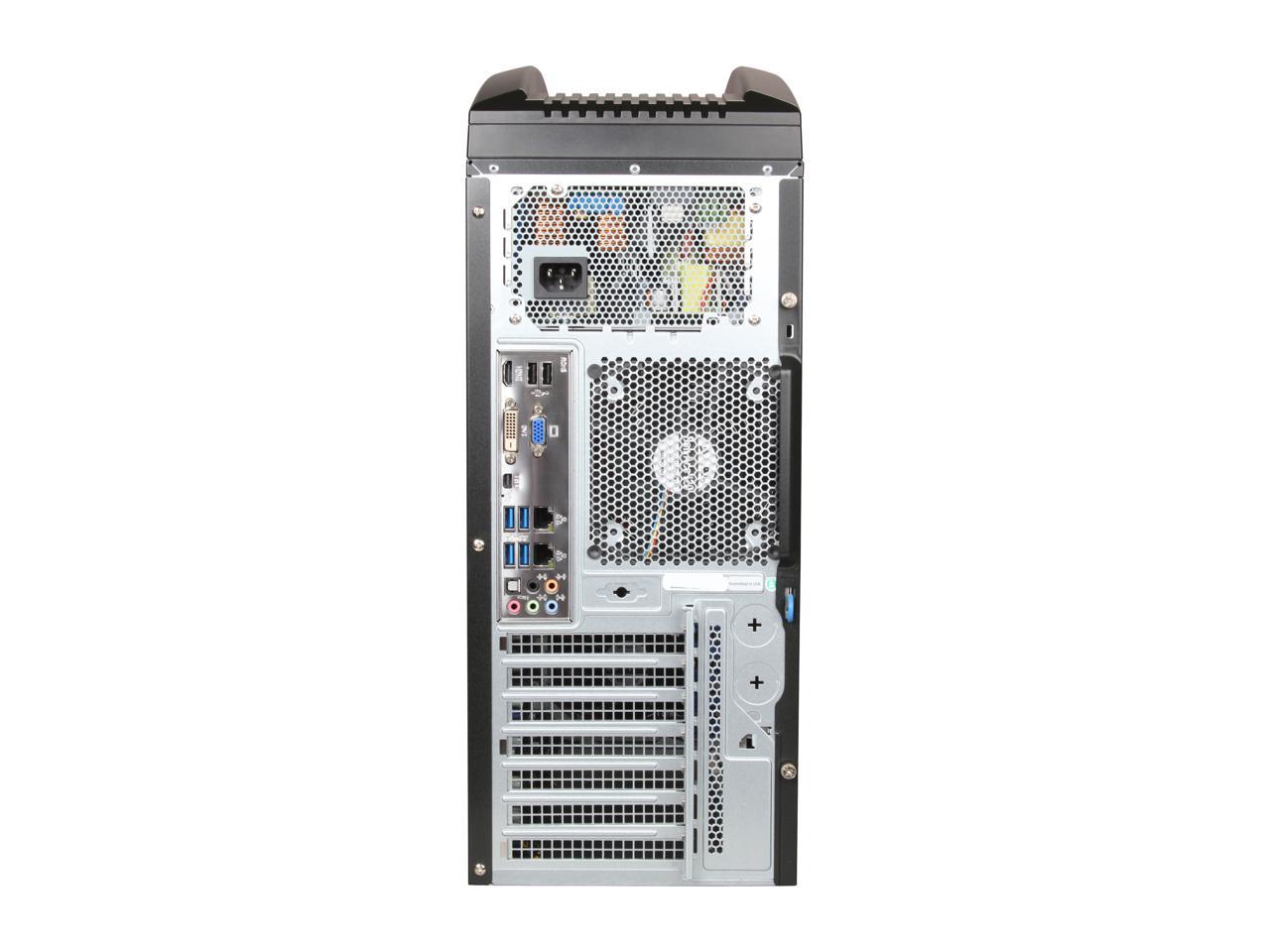

Panel Ports
Front USB	2 x USB 3.0 2 x USB 2.0
VGA	1x VGA, 1x HDMI, 1x DVI, 1x Thunderbolt (DP1.1), Triple display support
Rear USB	4 x USB 3.0 2 x USB 2.0
RJ45	2
Rear Audio Ports	7.1 HD Jacks
Other Ports	1x COM port (header)

Power Supply
Max. Power	900W AC multi output power supply w/ PMBus, 80 PLUS Gold

Details
Form Factor	Mid-Tower

Dimensions & Weight
Dimensions	22.83" x 20.08" x 8.66"
Weight	35 lbs.

Additional Information
Date First Available	January 06, 2016

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-5038AD-T
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperWorkstation
Product Model	5038AD-T
Product Name	SuperWorkstation 5038AD-T
Product Type	Barebone System
UPC	672042145478

Chipset

Chipset Manufacturer	Intel

Ethernet Technology	Gigabit Ethernet

Interfaces/Ports

HDMI	Yes
Total Number of USB Ports	18
Network (RJ-45)	Yes

Power Description

Maximum Power Supply Wattage	900 W

Product Color	Black
Height	20.1"
Width	8.7"
Depth	22.8"

Miscellaneous

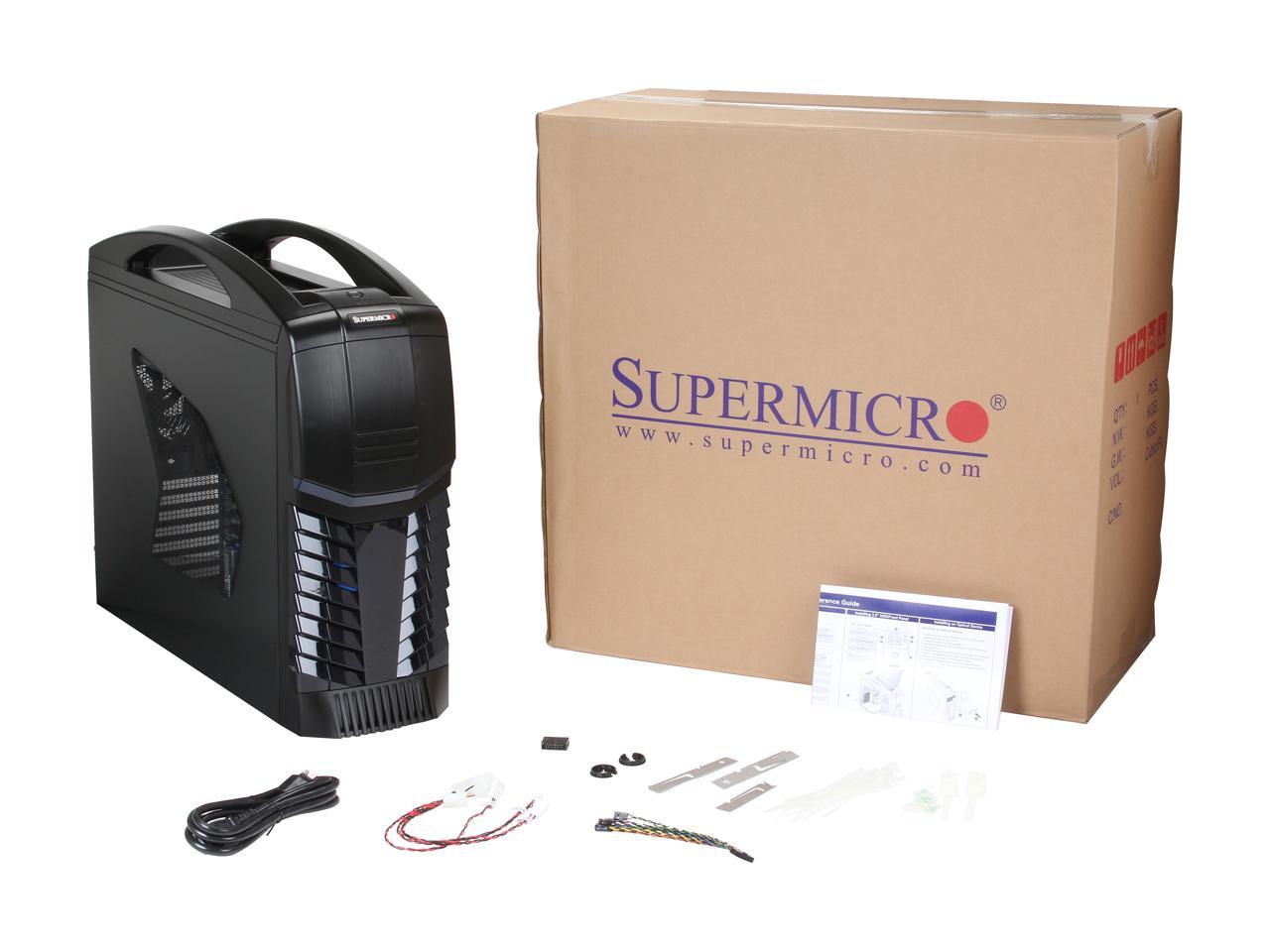

Package Contents	SuperWorkstation 5038AD-T 1 x Super C7Z87-OCE Motherboard 1 x 3U Mid-Tower Chassis 1 x PS2 900W Multi-Output Power Supply 80Plus Gold 1 x ROUND 16 pin TO 16 PIN RIBBON FP CABLE 30 1 x Front control cable 16 pin split, 6 1 x Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF 1 x SC732G USB2.0 Internal Cable 2-Ports w/ 2-Sockets-80cm,28AWG,HF,RoHS/REACH,PBF 1 x SC732G USB3.0 Internal Cable 2-Ports w/ 2-Sockets-60cm,28/24AWG,HF,RoHS/REACH,PBF 1 x SC732G 4 pin LED Power Cable with adapter for Blue,30cm,22AWG,HF,RoHS/REACH,PBF 1 x SC732G 4 pin LED Power Cable with adapter for Orange,30cm,22AWG,HF,RoHS/REACH,PBF 1 x SC732G 4 pin LED Color Adapter Power Cable-To Light Purple Color,30cm,22AWG,HF,RoHS/REACH,PBF 1 x SC732G eSATA Internal Cable 1-Port w/ 1-Socket-60cm,26AWG,HF,RoHS/REACH,PBF 2 x 12 CM x12 CM fan
Environmentally Friendly	Yes
Environmental Certification	RoHS

Warranty

Limited Warranty	3 Year
