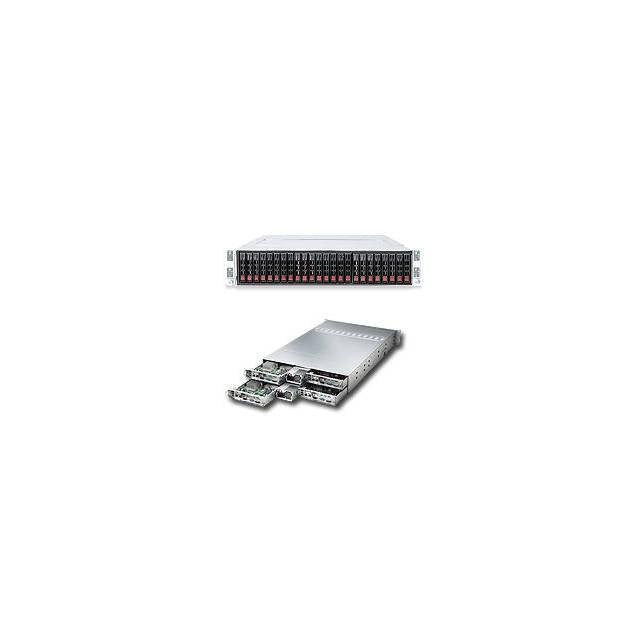

Name: Supermicro Superserver Sys-2026Tt-Htrf Four Node Dual Lga1366 1400W 2U Rackmount Server Barebone System (Black)
Brand: Supermicro
SKU: SYS-2026TT-HTRF
Price: 4414.00 CAD
Availability: InStock

Supermicro Superserver Sys-2026Tt-Htrf Four Node Dual Lga1366 1400W 2U Rackmount Server Barebone System (Black)

Roll over image to zoom in Click on image to zoom

Mfr Part Number: SYS-2026TT-HTRF
Motherboard: 4x Super X8DTT-HF+
Processors per Node: Dual LGA1366
- Support 64-bit Intel Xeon X5600/E5600/L5600 Series (Westmere) processors, Support 40W - 95W TDP
- Support 64-bit Intel Xeon X5500/E5500/L5500 Series (Nehalem-EP) processors, Support 38W - 95W TDP
- QPI Upto 6.4 GT/s
Chipset per Node: North Bridge Intel 5500 (Tylersburg) & South Bridge ICH10R + IOH-36D
Memory per Node: 12x 240pin DDR3-1333/1066/800 DIMMs, Supports up to 192GB ECC/REG Memory or up to48GB ECC/Non ECC Unbuffered Memory
Slots per Node: 1x PCI-Express x16 slot (Low Profile)
SATA per Node: 6x SATA2 Ports, Support RAID 0, 1, 5, 10
Video per Node: Matrox G200eW Graphics
LAN per Node: Dual Intel 82574L Gigabit Ethernet Controllers; 1x Realtek RTL8201N PHY (dedicated IPMI)
Drive Bays per Node: 6x 2.5" SATA Hot-swap drive bays
Backplane per Node: 2U Hard drive Backplane
Ports per Node: 4x USB 2.0 Ports(2 rear, 2 by header), 1x VGA Port, 1x Serial Port, 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port
Form Factor: 2U Rackmount
Power Supply: 1400W 80 PLUS Gold Certified high-efficiency (1+1) redundant power supply with PMBus
System Cooling: 4x Cooling Fans
Front Panel:
- Buttons: Power On/Off, UID
- LEDs: Power, Network Activity, System Overheat/fan fail/power fail, UID
Color: Black
Dimensions (WxDxH): 17.2 x 28.5 x 3.5 inch / 437.0 x 724.0 x 89.0 mm
Gross Weight: 85.0 lbs / 38.6 kg
RoHS Compliant

General Information

Manufacturer	Supermicro Computer, Inc
Manufacturer Part Number	SYS-2026TT-HTRF
Manufacturer Website Address	http://www.supermicro.com
Brand Name	Supermicro
Product Line	SuperServer
Product Model	2026TT-HTRF
Product Name	SuperServer 2026TT-HTRF Barebone System
Product Type	Barebone System
UPC	672042067664

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	Matrox
Graphics Controller Model	G200eW

Ethernet Technology	Gigabit Ethernet

Total Number of USB Ports	2
Network (RJ-45)	Yes

Power Description

Maximum Power Supply Wattage	2800 W

Product Color	Black
Height	3.5"
Width	17.2"
Depth	28.5"

Miscellaneous

Package Contents	SuperServer 2026TT-HTRF Barebone System 4 x Super X8DTT-HF+ Motherboard 1 x 2U Black Chassis 4 x 2U Air Shroud 4 x BPN-SASADPûSAS827-X8DTT-H+;no cable req 1 x sup 24x2.5ö SAS/SATA hdd; 126 mil thickness 1 x CD For X8 series 4 x RSC-R1U-E16R Riser Card 8 x 1U PASSIVE CPU HS FOR INTEL LGA1366 (HTP) 2 x 1400W 1U GOLD LEVEL PWS W/ PM BUS & WX3\ 12 x Hot-swappable Hard Drive Tray "
Environmentally Friendly	Yes

Warranty

Limited Warranty	3 Year

Supermicro Superserver Sys-2026Tt-Htrf Four Node Dual Lga1366 1400W 2U Rackmount Server Barebone System (Black)

Description

Supermicro Superserver Sys-2026Tt-Htrf Four Node Dual Lga1366 1400W 2U Rackmount Server Barebone System (Black)
