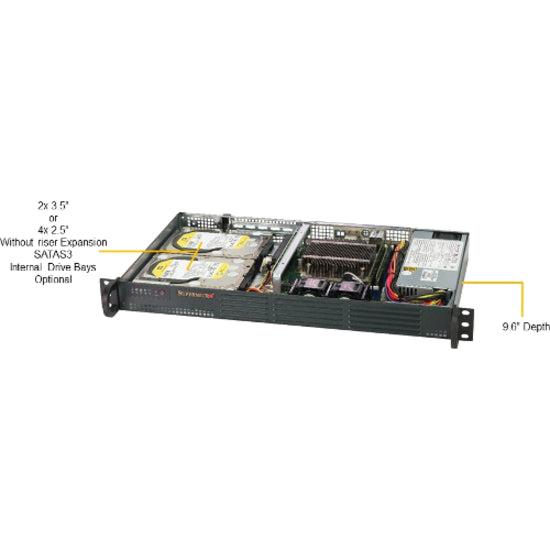

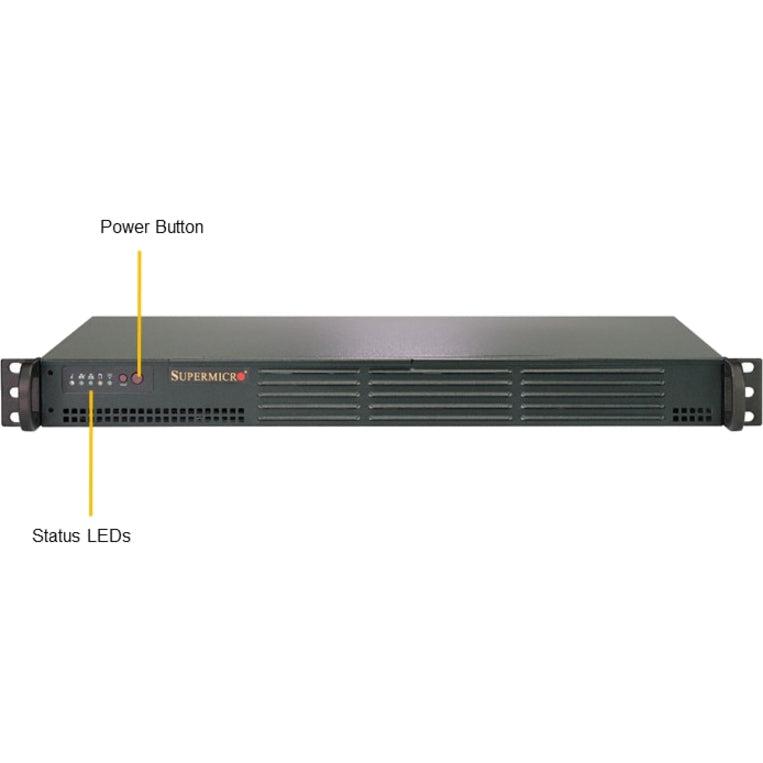

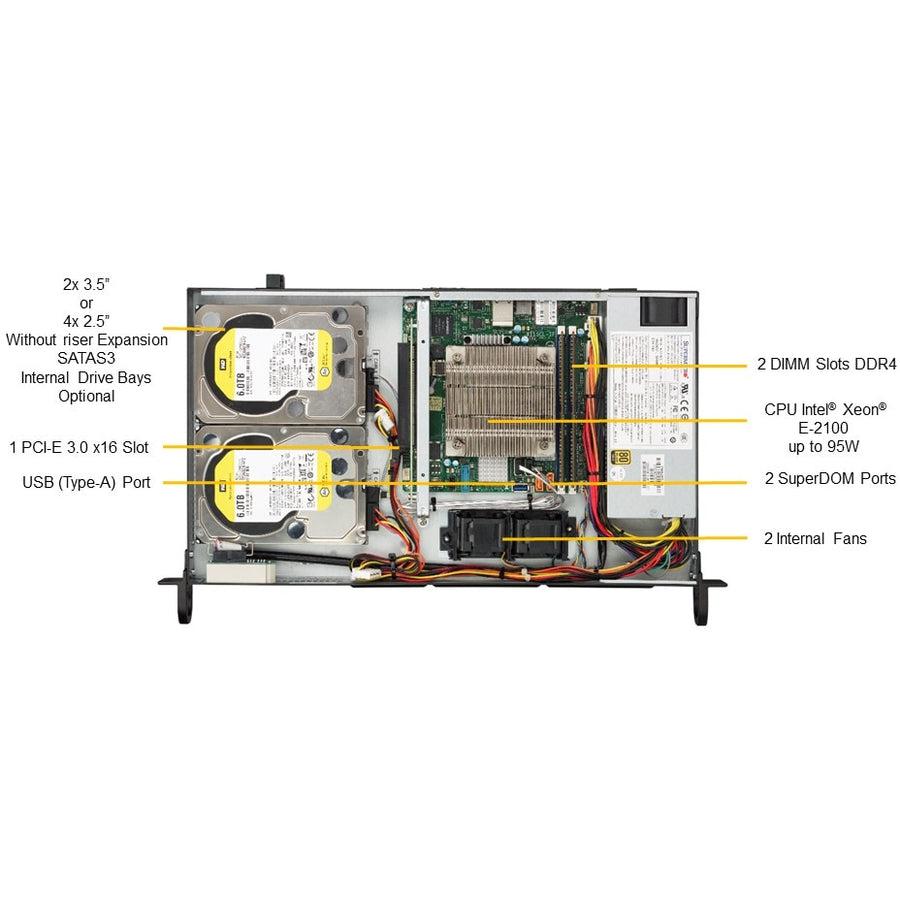

SuperServer 5019C-L, LGA 1151, 2x DDR4, Intel C242, 4x SATA III, RJ-45, USB 3.1, VGA, PCI-E 3.0 x16, 1U, 43x437x249 mm
Supermicro SuperServer 5019C-L. Motherboard chipset: Intel C242, Processor socket: LGA 1151 (Socket H4), Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Pentium®, Intel® Xeon®. Supported memory types: DDR4-SDRAM, Supported DIMM module capacities: 4GB, 8GB, 16GB, 32GB, Maximum internal memory: 64 GB. Storage drive sizes supported: 2.5,3.5", Supported storage drive interfaces: Serial ATA III. On-board graphics adapter model: Aspeed AST2500. Ethernet interface type: Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000 Mbit/s, LAN controller: Intel® I210-AT
SuperServers are Your Best Choice!
SuperServer Benefits: - Uncompromising Quality Control - The most Comprehensive Line of Servers, Storage Systems, and Subsystems - Widest Variety of Application Optimized Solutions, from High End Clusters to MicroServers - Best Performance per-Watt, per-Square-Foot, and per-Dollar - Superior Product Design Based in Silicon Valley - Consistently First-to-Market - Best Total Cost of Ownership (TCO) - Highest Quality Components and Materials - 3-Year Limited Warranty - 24-Hour Support and Global Services - Redfish API support
These benefits combined with an excellent track record have earned Supermicro a reputation as a true leader in the high-end server/storage industry. Supermicro provides the most outstanding product line in the industry, ranging from single Atom™ and dual Xeon® to quad Xeon® MP systems. Their proven high level of quality and performance has made SuperServers the platform of choice for HPC, enterprise, cloud, data center, hyperscale, embedded, and business-critical, front-end server applications.
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-5019C-L
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
5019C-L
Product Name
SuperServer 5019C-L (Black)
Product Type
Barebone System
UPC
672042352456
Chipset
Chipset Manufacturer
Intel
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2500
Ethernet Technology
Gigabit Ethernet
Total Number of USB Ports
4
Power Description
Maximum Power Supply Wattage
200 W
Product Color
Black
Height
1.7"
Width
17.2"
Depth
9.8"
Weight (Approximate)
8 lb
Miscellaneous
Package Contents
SuperServer 5019C-L (Black)
1 x Super X11SCL-iF Motherboard
1 x 1U Chassis
1 x SATA,INT,ROUND,ST-ST,55CM,30AWG
2 x 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
1 x Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
1 x 5019C-L/FL Quick Reference Guide
1 x RSC-RR1U-E16 with PIC-E x16 output
1 x 1U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
