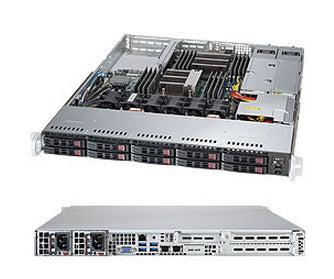

Supermicro SuperServer 1028R-WC1RT. Processor socket: LGA 2011-v3, Processor family: Intel, System bus rate: 9.6 GT/s. Supported memory types: DDR4-SDRAM, Maximum internal memory: 1000 GB, Maximum RDIMM memory: 32 GB. Storage drive sizes supported: 2.5", Supported storage drive interfaces: Serial Attached SCSI (SAS), Serial ATA. On-board graphics adapter model: Aspeed AST2400. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Ethernet LAN data rates: 10,100,1000,10000 Mbit/s, Copper ethernet cabling technology: 1000BASE-T,100BASE-TX,10BASE-T,10GBASE-T
1. Dual socket R3 (LGA 2011) supports Intel® Xeon® processor E5-2600 v3 family; QPI up to 9.6GT/s 2. Up to 1TB ECC DDR4 2133MHz; 16x DIMM sockets 3. 2x PCI-E 3.0 x16 (FHHL) slots 4. 10x Hot-swap 2.5" SAS/SATA HDD bays 5. SAS3 (12Gbps) via LSI 3108 6. Intel® X540 Dual port 10GBase-T 7. I/O ports: 2x SuperDOM, 1x VGA, 1x COM, 6x USB 3.0 (4 rear, 2 front) 8. Optional 2x 2.5" NVMe drives support 9. 700W Redundant Power Supplies Platinum Level High-efficiency
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
SYS-1028R-WC1RT
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperServer
Product Model
1028R-WC1RT
Product Name
SuperServer 1028R-WC1RT (Black)
Product Type
Barebone System
UPC
672042157488
Chipset
Chipset Manufacturer
Intel
Graphics Controller Manufacturer
ASPEED
Graphics Controller Model
AST2400
Ethernet Technology
Fast Ethernet
Total Number of USB Ports
6
Network (RJ-45)
Yes
Power Description
Maximum Power Supply Wattage
750 W
Product Color
Black
Height
1.7"
Width
17.2"
Depth
23.5"
Miscellaneous
Package Contents
SuperServer 1028R-WC1RT (Black)
1 x Super X10DRW-iT Motherboard
1 x 1U Chassis
1 x Backplane support 8x 2.5" SAS2/SAS3/SATA3 HDD/SSD on device ID[1-8], with SGPIO. Support 2x 2.5" PCIe NVMe SSD on device ID[9-10] - with PCIe x1,x2,x4 support, max 25W/slot.,RoHS/REACH,PBF
1 x Internal Mini-SAS HD to Mini-SAS HD 35cm,30AWG,12Gb/s,HF,RoHS/REACH,PBF
1 x 8 pin to 8 pin round SGPIO cable, 61.5cm, 28AWG, pinout 1-1,RoHS/REACH
2 x 55cm 30AWG SATA S-S cable
1 x Internal Mini-SAS HD to Mini-SAS HD 25cm,30AWG,HF,RoHS/REACH,PBF
1 x RSC-R1UW-2E16-O-P
1 x 1U Passive Front CPU Heat Sink w/ a Side Air Channel for X9, X10 Systems Equipped with a Narrow ILM MB
1 x 1U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB
2 x 1U 750W redundant power width 54.5mm(Platinum),HF,RoHS/REACH,PBF
