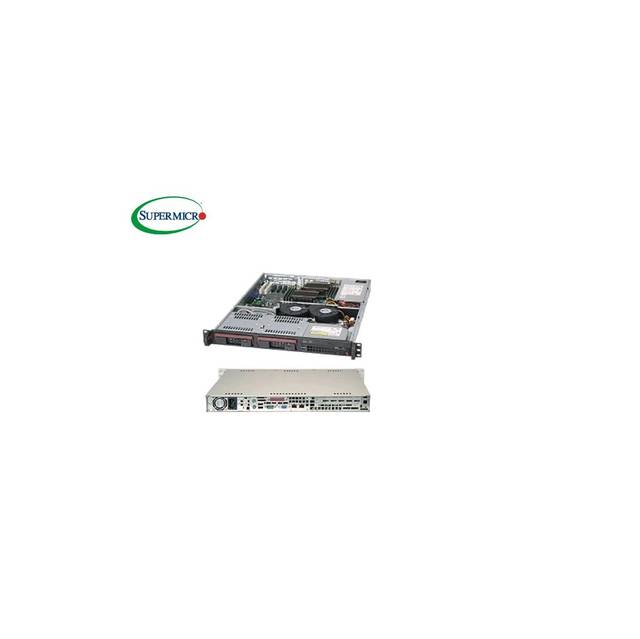

Name: Supermicro Superchassis Cse-811Tq-600B Revision K 600W/680W 1U Rackmount Server Chassis (Black)
Brand: Supermicro
SKU: CSE-811TQ-600B REV K
Price: 474.00 CAD
Availability: OutOfStock

Supermicro Superchassis Cse-811Tq-600B Revision K 600W/680W 1U Rackmount Server Chassis (Black)

Roll over image to zoom in Click on image to zoom

✅⚠️DO NOT ORDER WITHOUT CONFIRMING STOCK. This item has limited availability. Contact us via chat or sales@tecisoft.com to verify before purchasing. Unconfirmed orders may be canceled.

Mfr Part Number: CSE-811TQ-600B REV K
Note:
- To support the new generation Intel Xeon processor-based motherboards, a Revision K chassis is recommended for most models. Please talk to your sales representative or follow the link for details
Form Factor: 1U rackmount Chassis - supports for maximum motherboard sizes of 12" x 10" and Micro-ATX 9.6" x 9.6"
Processor Support: Dual and Single Intel and AMD processors
Color: Black
Expansion Slots: 1 full-height & full-length expansion slot(s) (Riser Card Required)
Drive Bays:
- 2 x 3.5" hot-swap SAS/SATA drive bay with SES2
- SAS or enterprise SATA HDD only recommended
Backplane: 811 SAS BACKPLANE W SES2
Peripheral Drives: Optional 1 x CD-ROM drive
Front Panel:
- Buttons

  - Power On/Off button

  - System Reset Button
- LEDs

  - 2 Network Activity LEDs

  - HDD activity LED

  - Power Status LED

  - System Overheat LED
- Ports

  - 2x USB Port(s)
Cooling System: 2 x 10cm blower
Power Supply: 1U 600/680W Multi-output 80PLUS gold power supply, 24pin output
- Power Efficiency: 92%
- Total Output Power and Input: 600W with Input 100 - 140Vac, 680W with Input 180 - 240Vac
- AC Input Frequency: 50-60Hz
- Dimensions (L x W x H): 220 x 100 x 40 mm
- Output Type: 24pin ATX
- -12V: Max: 0.5A / Min: 0A
- +12V: Max: 49A / Min: 1A (100Vac - 140Vac), Max: 56A / Min: 1A (180Vac - 240Vac)
- +5V: Max: 20A / Min: 1A
- +3.3V: Max: 16A / Min: 0.8A
- +5Vsb: Max: 3A / Min: 0A
- +12Vsb: Max: NAA
- Certification: 80 plus Gold Certified
Power Supply Safety / EMC: BSMI, CCC, CE/EMC, FCC class B, TUV/CB, UL/CUL
Operating Environment (System):
- Operating Temperature Range: 5C - 35C (41F - 95F)
- Non-Operating Temperature Range: -40C - 70C (-40F - 158F)
- Operating Relative Humidity Range: 8% - 90% (non-condensing)
- Non-Operating Relative Humidity Range: 5% - 95% (non-condensing)
Dimensions:
- Height: 1.7" (43 mm)
- Width: 16.8" (426 mm)
- Depth: 22.6" (574 mm)
- Gross Weight: 27 lbs (12.25 kg)
- Packaging (W x H x L): 24.4" (620 mm) x 7.7" (178 mm) x 27.4" (686 mm)
