4U, JBOD, 24x 3.5" SAS/SATA, 8x Mini-SAS, 437 x 660 x 178 mm, 27220 g, black

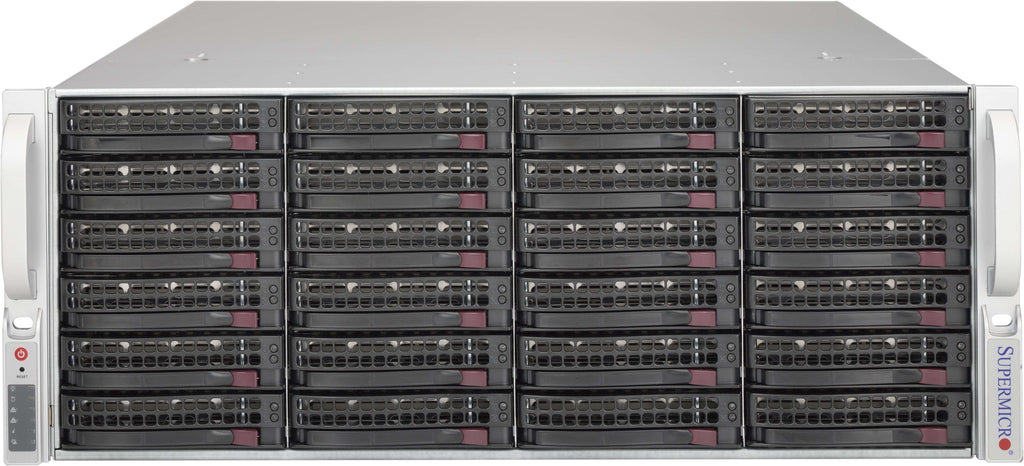

Supermicro SuperChassis 846BE2C-R1K03JBOD. Storage drive interface: Serial ATA III, Storage drive size: 3.5". Chassis type: Rack (4U). Number of storage drives supported: 24, Supported storage drive types: HDD & SSD. Width: 437 mm, Depth: 660 mm, Height: 178 mm, Weight: 27.2 kg. Product colour: Black
Be Confident with Supermicro's Application-Optimized Chassis Solutions
Supermicro Chassis Features:
- System Level Optimized Solutions - Full Range of Rackmount, Workstation & Tower Chassis - mini-1U, 1U, 2U, 3U & 4U - Support SAS3 12Gb/s & NVMe technology - Optimized thermal design: better cooling performance, less power consumption - Up to Titanium Level (96%) High-Efficiency Power Supplies - High Availability, Adaptability, Scalability and Reliability - Outstanding Price/Performance Ratio - Highest Quality Components, Fans & Power Supplies - Hot-Swappable Redundant Power Supplies, Fans and Drive Trays - Maximum Storage Capacity
These design advantages have helped Supermicro rapidly establish its reputation as a leader in chassis design. To see the future of chassis designs now, check out our latest chassis solutions. Optimized for the latest x86 processors, these state-of-the-art chassis are equipped with hot-plug heavy-duty fans, fan speed controls and revolutionary air-shroud designs for 100% airflow redundancy.
General Information
Manufacturer
Supermicro Computer, Inc
Manufacturer Part Number
CSE-846BE2C-R1K03JBOD
Manufacturer Website Address
http://www.supermicro.com
Brand Name
Supermicro
Product Line
SuperChassis
Product Model
846BE2C-R1K03JBOD
Product Name
SuperChassis 846BE2C-R1K03JBOD
Product Type
Drive Enclosure
UPC
0672042197514
Product Color
Black
Height
7"
Width
17.2"
Depth
26"
Miscellaneous
Package Contents
SuperChassis 846BE2C-R1K03JBOD
1 x Backplane
1 x Control Board
1 x CAT 5e RJ45 extension cable for SC847D JBOD internal Male to Female adapter with PCBA 500mm,24AWG,HF,RoHS/REACH,PBF
2 x 4 pin to 4 pin fan extension cord, for PWM fan. 23cm. 24AWG
1 x 4 Pin to 4 Pin I2C cable, 50cm, 26AWG,RoHS/REACH,PBF
8 x Internal Mini-SAS HD to Mini-SAS HD 60cm,30AWG,12Gb/s [FCI],RoHS/REACH
2 x 1U 1000W Redundant Power Supply Titanium W/PMbus 76x365x40mm,RoHS/REACH
1 x PDB with 23 pairs input connector support SC846B
1 x SC846 Intel DP X9, X8 PC air shroud 1368x13/12x13MB
1 x Round 16 pin to 16 pin Ribbon FP Cable 75cm. 28AWG
2 x NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
1 x 16 pin control panel converter cable for SC826,846, 23.5cm, PBF
3 x 80x80x38 mm 7K RPM SC846 Middle Fan w/ Housing
2 x 80x32 mm 6.7K RPM SC836 Rear Exhaust Fan w/ Housing
1 x Front control board adapter (TB826) for SC216,826,936,846
