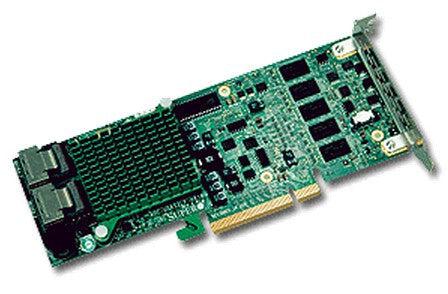

Supermicro Aoc-Sas2Lp-H8Ir Raid Controller 6 Gbit/S

Low Profile 6Gb/s 8-Port SAS Internal RAID Adapter

Supermicro AOC-SAS2LP-H8IR. Supported storage drive interfaces: SAS, Serial ATA. Data transfer rate: 6 Gbit/s, Internal memory: 512 MB, Internal memory type: DDR2. Windows operating systems supported: Windows 8,Windows Vista Home Premium,Windows XP Home. Depth: 167.6 mm, Height: 68.8 mm. I/O ports: SAS-2

The Supermicro UIO MegaRAID Low Profile AOC-USAS2LP-H8iR features 8 internal SAS connectors for high-performance storage connectivity. This RAID card is built on the LSI Logic SAS IC technology and proven MegaRAID technology. It addresses the growing demand for increased data throughput and scalability requirement across the enterprise-class server platforms. With high performance RAID architecture, including hardware RAID 5 and 6, this new RAID controller card supports high capacity storage applications. It delivers cost effective storage solutions using SATA drives and maximum performance and reliability with SAS drives.

With the option of battery backup unit, this provides cached data protection and allows system builders to protect cached data even during the most catastrophic system failures.

Using a LSISAS 2108 I/O processor for optimum RAID performance and a PCI Express host interface for increased bandwidth, this UIO internal RAID adapter deliver an intelligent and robust RAID solution.

The AOC-USAS2LP-H8iR supports up to 240 HDD w/ RAID 0, 1, 5, 6, 10, 50 and 60.

To order, contact your distributor. This product is only available through Supermicro.
