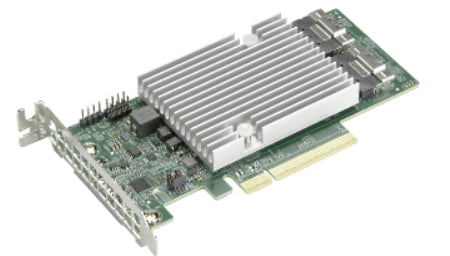

Supermicro Aoc-S3816L-L16It Interface Cards/Adapter Sas

12Gb/s , SAS, 1.2GHz, SATA, MCTP/PCIe, Windows, Linux

Supermicro AOC-S3816L-L16iT. Host interface: PCIe, Output interface: SAS, Expansion card form factor: Low-profile. Processor frequency: 1200 MHz, Bandwidth: 12 Gbit/s. Other operating systems supported: VMware ESX/ESXi 4.0 U4,VMware ESX/ESXi 4.1 U2,VMware ESX/ESXi 5.0,VMware ESX/ESXi 5.0 U1,VMware.... Width: 68.8 mm, Depth: 137 mm, Weight: 113 g

Supermicro 12Gb/s Multi-Port SAS PCIe Gen 4.0 Internal Host Bus Adapter
The Supermicro HBA AOC-S3816L-L16iT features 16 internal SAS connectors, while the AOC-S3808L-L8iT features 8 internal SAS connectors. Both are designed for high-performance storage connectivity.
They use Broadcom’s 3816 & 3808 I/O processors for optimum performance with PCI Express Gen 4.0 host interface for increased bandwidth.
Each Add-On-Card supports up to 122 devices as HBA in IT mode via expander backplane.
