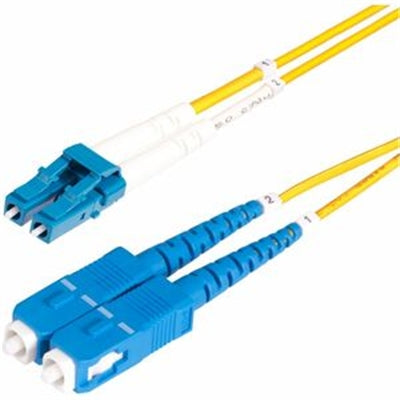

LC to SC OS2 Single Mode Duplex Fiber Optic Cable 15m
The StarTech.com SMLCSC-OS2-15M is a professional-grade LC to SC OS2 single mode duplex fiber optic cable engineered for mission-critical data center and enterprise network environments. This 15-meter (49.2ft) patch cord delivers ultra-reliable, low-loss connectivity for high-speed 10G to 100G singlemode fiber applications. With its 9/125µm LSZH fiber construction and duplex design, it provides superior signal integrity over extended distances while meeting strict fire safety standards. The cable supports Coarse Wavelength Division Multiplexing (CWDM) across 1260–1625 nm wavelengths, enabling enhanced channel isolation and signal quality for demanding network infrastructure.
Key Features
- 15-meter (49.2ft) length for extended network runs in data centers and server rooms
-
OS2 single mode duplex design for reliable point-to-point connectivity
- LC to SC connector configuration for seamless integration with existing infrastructure
- 9/125µm fiber core optimized for low-loss, long-distance transmission
-
LSZH (Low Smoke Zero Halogen) jacket for enhanced fire safety and environmental compliance
- Supports 10G to 100G singlemode fiber applications
- CWDM wavelength range 1260–1625 nm for multi-channel signal optimization
- Duplex configuration enables simultaneous bidirectional data transmission
- Professional-grade construction for mission-critical networking environments
Technical Specifications
| Specification |
Details |
| Manufacturer |
StarTech.com |
| Part Number |
SMLCSC-OS2-15M |
| Cable Length |
15 meters (49.2 feet) |
| Connector Type |
LC to SC (UPC) |
| Fiber Mode |
OS2 Single Mode Duplex |
| Fiber Core Size |
9/125 micrometers |
| Jacket Material |
LSZH (Low Smoke Zero Halogen) |
| Wavelength Range |
1260–1625 nm (CWDM compatible) |
| Application Support |
10G to 100G singlemode fiber networks |
| Configuration |
Duplex (bidirectional) |
| Use Case |
Data centers, enterprise networks, server rooms |
Frequently Asked Questions
What is the difference between OS2 single mode and multimode fiber?
OS2 single mode fiber features a smaller 9/125µm core that supports longer transmission distances (up to 100+ km) with lower attenuation, making it ideal for data center backbone and long-distance enterprise links. Multimode fiber has a larger core and is better suited for shorter distances within buildings.
Why is LSZH jacket material important for fiber optic cables?
LSZH (Low Smoke Zero Halogen) jackets are critical in enclosed spaces like data centers and server rooms because they emit minimal smoke and no toxic halogen gases if exposed to fire, protecting equipment and personnel while maintaining network integrity during emergencies.
Can this LC to SC fiber optic cable support 100G networks?
Yes, the StarTech.com SMLCSC-OS2-15M is specifically designed to support 10G to 100G singlemode fiber applications. Its OS2 single mode construction and low-loss 9/125µm fiber ensure reliable performance for next-generation high-speed network infrastructure.
What does CWDM wavelength range 1260–1625 nm mean?
CWDM (Coarse Wavelength Division Multiplexing) allows multiple data signals at different wavelengths to travel simultaneously over a single fiber strand. The 1260–1625 nm range supports up to 18 distinct wavelength channels, enabling efficient multi-channel communication and improved network capacity.
