StarTech.com HDMI Video Capture Device - 1080p - 60fps Game Capture Card - USB Video Recorder with HDMI DVI VGA (USB3HDCAP)
StarTech.com USB 3.0 Video Capture Device - HDMI / DVI / VGA / Component HD Video Recorder - 1080p 60fps. Analog signal format system: NTSC,PAL,PAL 60,PAL M, Maximum frame rate: 60 fps, Supported video modes: 1080i,1080p,480i,480p,576i,576p,720p. Video compression formats: H.264,MPEG4. Width: 75.5 mm, Depth: 114.4 mm, Height: 24.5 mm. Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise.... Package weight: 400 g, Package height: 53 mm, Package width: 150 mm

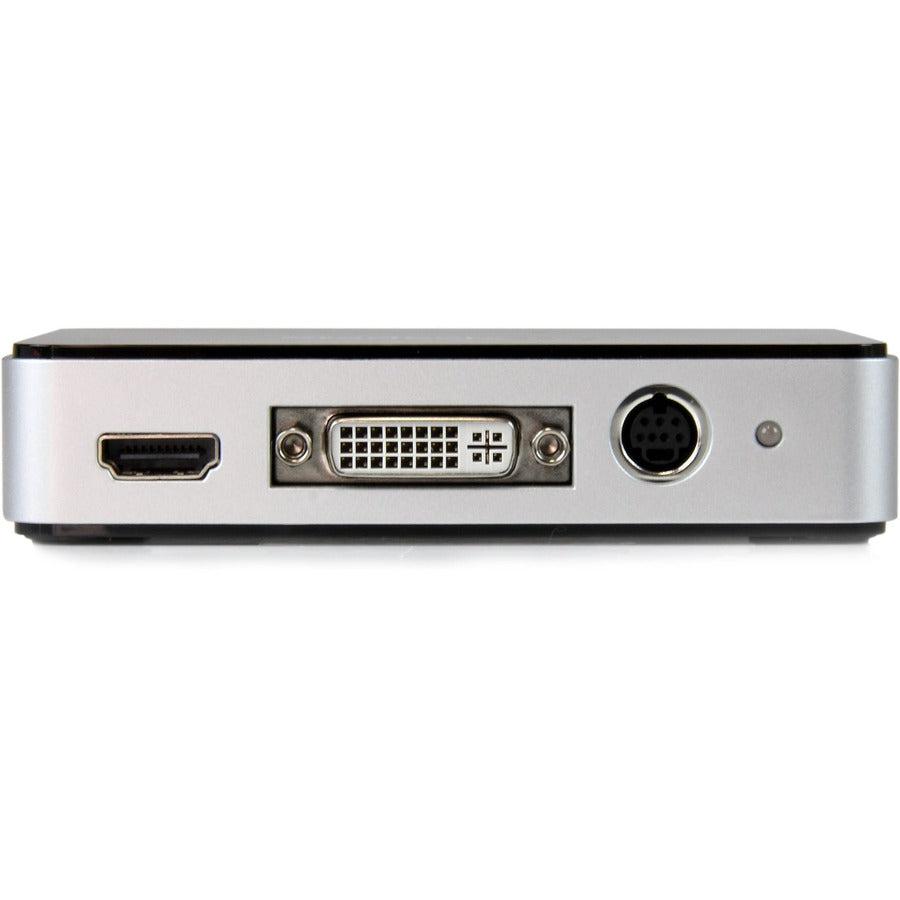

Capture a High-Definition HDMI, DVI, VGA, or Component Video source to your PC
This USB 3.0 external video capture device lets you record 1080p HD video and stereo audio to your computer system. With multiple video inputs including HDMI, DVI, VGA and component, the capture card can record original content from various sources such as computers, camcorders, security systems, POS terminals, and servers. With a framerate of 60 FPS (frames per second) and H.264 encoding, this is the perfect solution for capturing high-definition video for editing, compiling, and archiving.
Seamless picture quality at 60 FPS
Record lossless video at 60 FPS ensuring every frame of content is saved, unlike 30-frame-per-second capture devices that only catch half the action. 60 FPS exactly matches the output of most computer video cards, which is great for recording the output from your PC, server, or POS station when creating software training and tutorial videos.
H.264 encoding for wide device compatibility
The included software encodes in H.264, the most widely adopted video codec in the world, ensuring your video captures will be compatible with almost any device platform such as PC, Mac, iOS and Android with no editing or converting required. H.264 is also widely supported by most software titles including Adobe Premiere and Windows Media Encoder. Plus, the software not only lets you capture and export videos, but it also lets you take screenshots, schedule recordings and instantly stream your video source over the Internet using online services such as Twitch.
This USB capture card is capable of capturing lossless raw video making it compatible with Microsoft DirectShow. With raw video capture you can record video using your preferred third party DirectShow software such as Open Broadcaster Software (OBS).
Flexible Input Solutions for Convenient Compatibility
With multiple A/V input options you can capture from a wide variety of sources including HDMI, DVI, VGA, and component. You can also use this capture card with A/V adapters to record other video sources such as SDI using our SDI to HDMI converter (SDI2HD). Support for a variety of A/V devices is ideal for archiving analog video footage into a digital database.
The device also includes easy-to-use software that’s compatible with NTSC and PAL systems, making it a must for professional video archiving applications where source media can change from project to project.
The USB3HDCAP is backed by a StarTech.com 2-year warranty and free lifetime technical support.
Notes:
A computer that supports USB 3.0 or higher is required. This product will not work with USB 2.0 or 1.1 controllers.
Will not record digitally encrypted content.
Not compatible with ASmedia, or Etron USB 3.0 host controllers. If your system has one of these non-supported controllers you can alternatively add a PCI-express USB 3.0 controller card such as the StarTech.com PEXUSB3S4V, PEXUSB3S400 or PEXUSB3S4.
Computer System Requirements:
Operating System: Microsoft Windows Vista / 7 / 8 / 8.1 / 10 (32/64-bit)
CPU: i3 Dual Core 2.8GHz or higher
Memory: 2 GB
USB 3.0 host controller (Confirmed support with: Intel, Renesas (NEC), VIA, AMD, Fresco FL1100)
The StarTech.com Advantage
- Smooth video capture with USB 3.0 bandwidth, enabling you to record 1080p video at 60fps - H.264 encoding ensures your recordings will work on any platform, such as PC, Mac, iOS & Android - Record from virtually any device, with support for HDMI, DVI, VGA, and Component video input sources
