StarTech.com PCI Express to PCI Adapter Card - PCIe to PCI Converter Adapter with Low Profile / Half-Height Bracket
StarTech.com PCI Express to PCI Adapter Card. Host interface: PCIe, Output interface: PCI 32-bit. Product colour: Red, Certification: CE, FC, ROHS. Chipset: PERICOM PI7C9X110BNBE. Width: 70 mm, Depth: 135 mm, Height: 20 mm. Package width: 175 mm, Package depth: 144 mm, Package height: 32 mm
Install half-height/low profile PCI interface cards in a standard PCI Express expansion slot

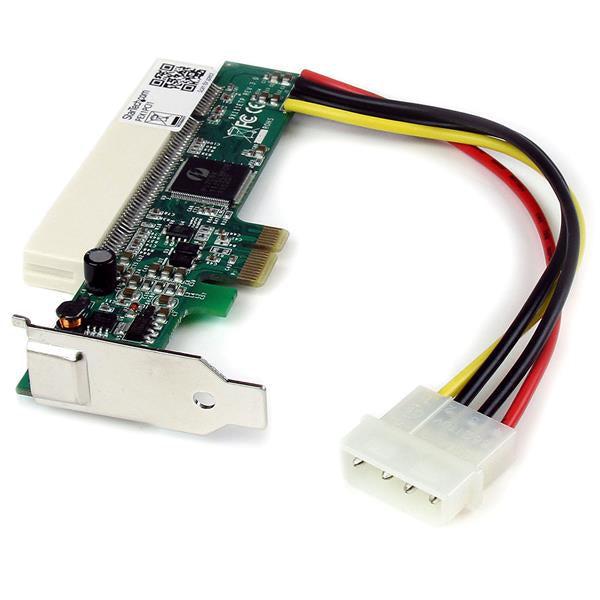

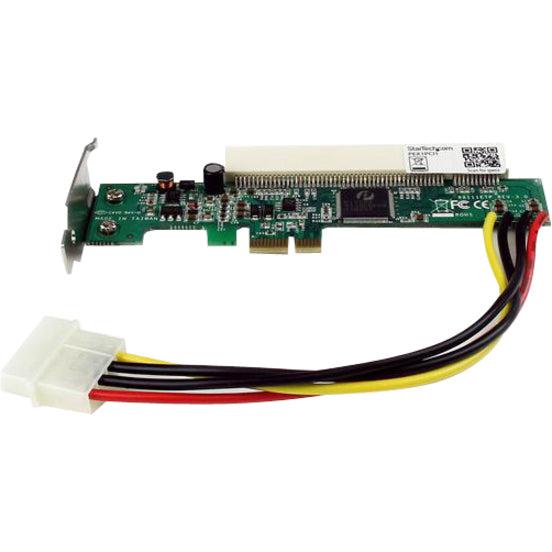

This PCIe to PCI Adapter Card lets you use low profile PCI expansion cards in a server or desktop motherboard PCI Express slot. Compliant with PCI Express Specification 1.0a and PCI Specification 2.2, the adapter card connects through a PCIe 1x slot to provide a low profile PCI slot in its place. A spare full size bracket for PCI Express card is also included for use in larger desktop or server PCI Express slots.
A versatile solution, the adapter card converts PCIe to PCI or PCI-X; a built-on LP4 power connector links the card to the computer power supply, allowing you to install universal voltage PCI cards (3.3V/5V).
The adapter card offers an economical solution that lets you extend the usability of older or extra PCI Bus cards in newer PCIe capable systems.
To ensure suitable installation in any low profile server or desktop computer, the PCIe/PCI adapter features an innovative bracket design that adapts and secures the low profile PCI or PCI-X card into the converted slot.
The StarTech.com Advantage
- The unique bracket design allows a low profile/half-height PCI card to work seamlessly in a PCI Express-based expansion slot - Backed by a StarTech.com 2-year warranty and free lifetime technical support
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
PEX1PCI1
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
PCI Express to PCI Adapter Card
Product Type
Riser Card
UPC
065030834629
Height
0.8"
Width
2.8"
Weight (Approximate)
1.73 oz
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
