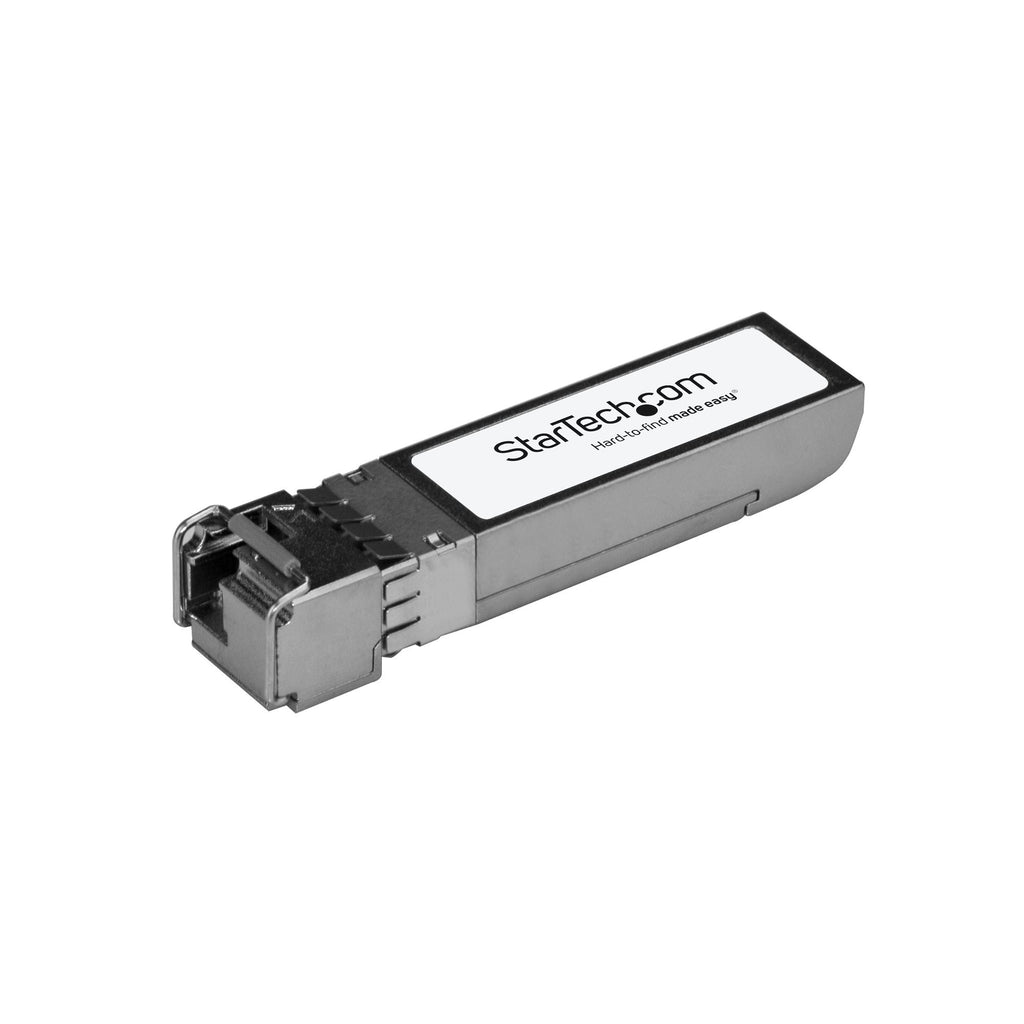

StarTech.com MSA Uncoded SFP+ Transceiver Module - 10GBASE-BX - 10 GbE Gigabit Ethernet BiDi Fiber (SMF) (SFP-10GB-BX-D-20-ST). SFP transceiver type: Fiber optic, Maximum data transfer rate: 10000 Mbit/s, Interface type: SFP+. Product colour: Silver, Mean time between failures (MTBF): 646156559 h. Width: 58.4 mm, Depth: 13.9 mm, Height: 12.6 mm. Number of products included: 1 pc(s), Package width: 90 mm, Package depth: 115 mm. Master (outer) case width: 90 mm, Master (outer) case length: 115 mm, Master (outer) case height: 31 mm
10 Gbps | Single Mode Fiber | LC | 20 km (12.4 mi) | Lifetime Warranty
The SFP-10GB-BX-D-20-ST is a MSA Compliant downstream fiber SFP+ transceiver which pairs with StarTech.com's SFP-10GB-BX-U-20-ST. They are designed, programmed and tested to work with 10GBase-BX compatible MSA Compliant switches and routers. The SFP+ transceiver module supports a maximum distance of up to 20 km (12.4 mi) and delivers dependable 10 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 1330nmTx/1270nmRx
Maximum Data Transfer Rate: 10Gbps
Type: Single Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 20 km (12.4 mi)
Power Consumption: Low power consumption
DDM: Yes
This SFP+ fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP+ modules and direct-attach SFP+ Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- MSA UNCODED SFP+ TRANSCEIVER: 10 Gigabit Ethernet BiDi Fiber Single Strand SFP+ designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 10GbE connectivity - INCREASE BANDWIDTH ON EXISTING INFRASTRUCTURE: This 10 Gigabit Ethernet bi-directional WDM SFP+ transceiver module sends and receives over a single strand of fiber optic cable instead of two. - TECHNICAL SPECS: 10GBASE-BX
