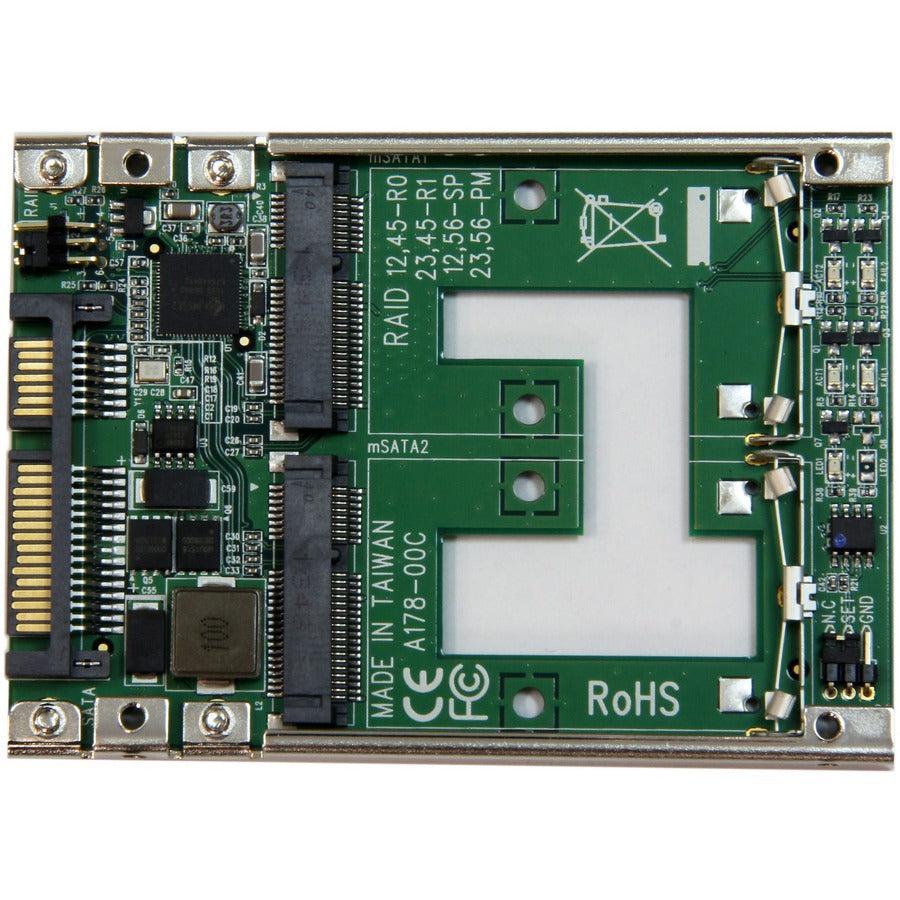

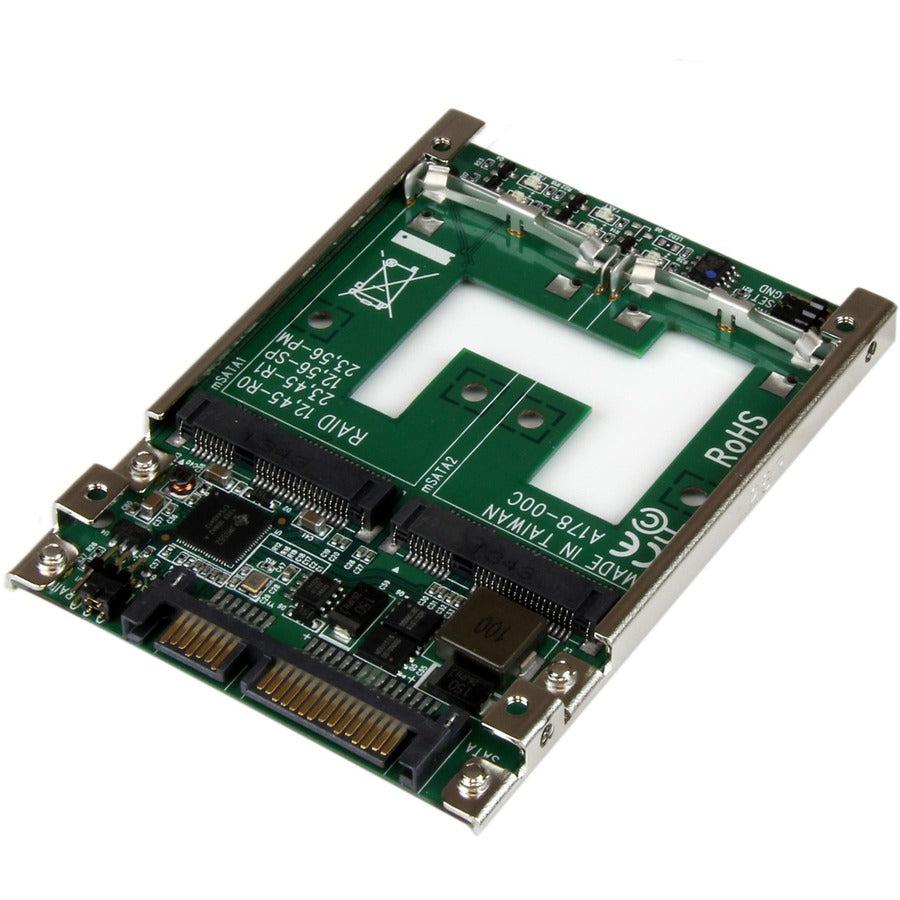

Vastly increase system performance by adding a dual mSATA SSD RAID array into any 2.5" SATA HDD application with the 25SAT22MSAT mSATA to SATA adapter.
Utilize the full potential of your SATA III controller, with mSATA SSDs reducing your data transfer bottleneck with file transfer speeds up to 6 Gbps. mSATA SSDs also save you money by reducing your power consumption over regular platter drives.
You can achieve greater SSD capacity, or data redundancy with the Dual SSD controller supporting multiple RAID modes (RAID 0, 1, BIG). The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Help protect the health of your drive with an open-frame design ensuring maximum heat dissipation.
The 25SAT22MSAT is backed by a StarTech.com 2-year warranty, and lifetime technical support.
The StarTech.com Advantage - Maximize system speed by adding SSD performance - Achieve greater drive capacity, or secure data redundancy with multiple RAID modes - Reduce overall power consumption, with high efficiency mSATA SSDs
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
25SAT22MSAT
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
Dual mSATA SSD to 2.5" SATA RAID Adapter Converter
Product Type
mSATA to SATA Adapter
UPC
065030855617
Product Color
Green
Height
0.3"
Width
2.8"
Weight (Approximate)
1.38 oz
Miscellaneous
Package Contents
Dual mSATA SSD to 2.5" SATA RAID Adapter Converter
1 x Mounting Screw Kit
1 x Install Guide
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
