StarTech.com Dual M.2 NGFF SATA Adapter with RAID. Host interface: SATA, Output interface: M.2. Product colour: Black, Metallic, White, Yellow, Mean time between failures (MTBF): 500000 h. Chipset: ASMedia - ASM1092R, Data transfer rate (max): 6 Gbit/s, RAID levels: 0,1,BIG,JBOD. Width: 68 mm, Depth: 98 mm, Height: 8 mm. Package width: 131 mm, Package depth: 165 mm, Package height: 31 mm
Boost your system performance by enhancing the capacity, speed and security of your data storage. This two-drive M.2 to SATA adapter lets you install two M.2 solid-state drives in a single 2.5” drive bay and configure a powerful RAID array.
Build a RAID array to enhance system performance The dual M.2 to SATA adapter supports multiple RAID modes (RAID 0, 1, BIG) helping you to achieve greater SSD capacity or data redundancy, depending on your selected RAID mode. The SSD adapter also supports non-RAID operation (JBOD) when paired with a port-multiplying SATA controller, so both drives can be used independent of one another.
Maximize file transfer speeds The dual SSD adapter lets you utilize the full potential of your SATA III controller. Using M.2 SSDs in place of a platter drive reduces your data transfer bottlenecks and gives you file transfer speeds of up to 6 Gbps. M.2 SSDs also save you money by reducing your power consumption over regular platter drives.
The M.2 NGFF SATA RAID adapter also provides TRIM support to enhance the stability and performance of your M.2 NGFF SSDs.
Get dependable drive protection The M.2 to SATA adapter features an enclosed housing that helps protect your NGFF (Next Generation Form Factor) SSD. The added protection gives you peace of mind when you are using your M.2 drives in applications that require an added level of durability such as hot-swap drive bays, or external SATA docking stations.
The 25S22M2NGFFR is backed by a StarTech.com 2-year warranty and free lifetime technical support.
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
25S22M2NGFFR
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
Dual M.2 NGFF SATA Adapter With RAID
Product Type
M.2 to SATA Adapter
UPC
065030863315
Product Color
Silver
Height
0.3"
Width
2.8"
Depth
3.9"
Weight (Approximate)
1.90 oz
Miscellaneous

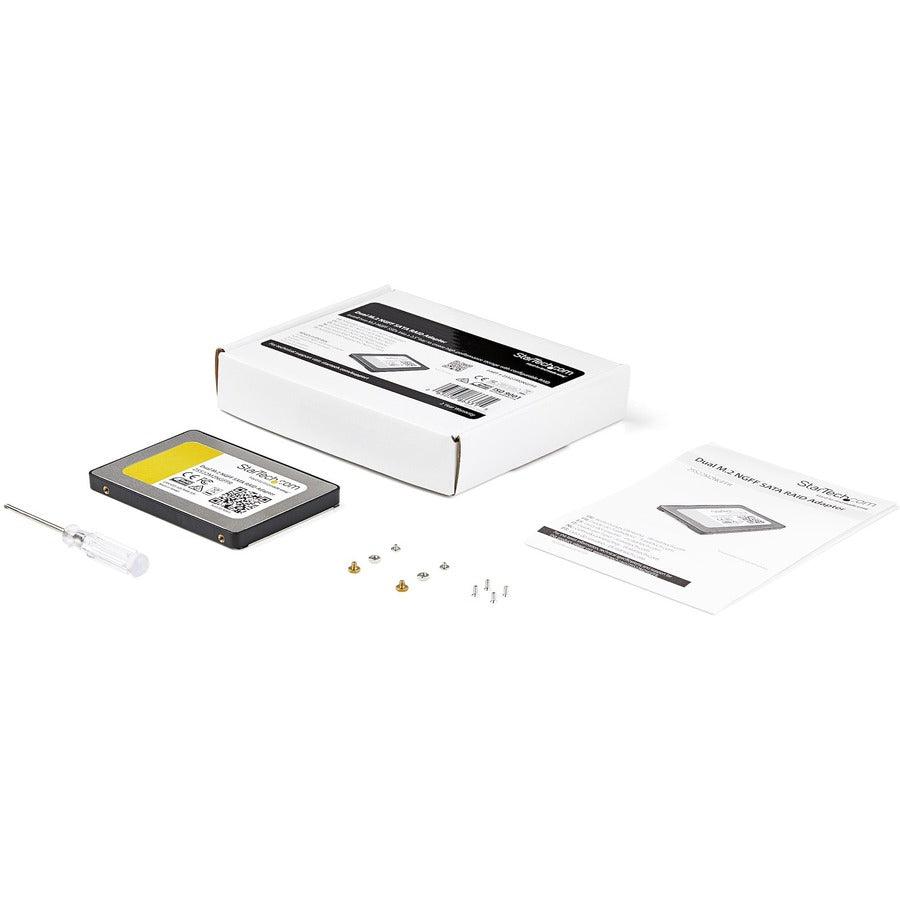

Package Contents
Dual M.2 NGFF SATA Adapter With RAID
2 x M.2 Drive Mount Hardware
4 x Screws
1 x Mini Screwdriver
1 x Quick Start Guide
Environmentally Friendly
Yes
Warranty
Limited Warranty
2 Year
