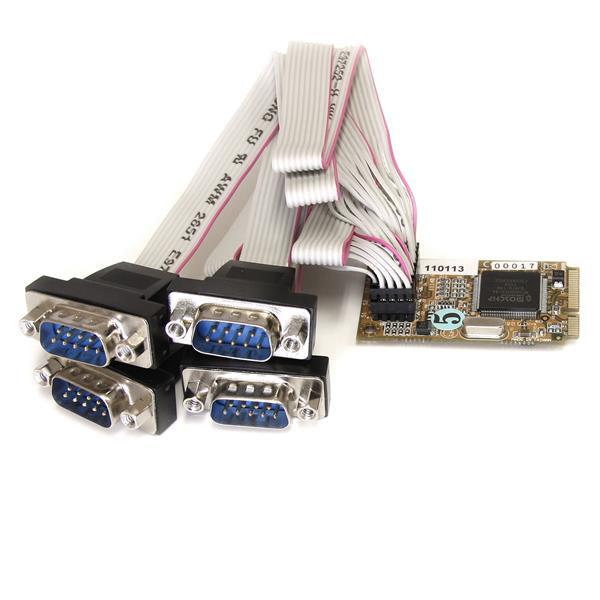

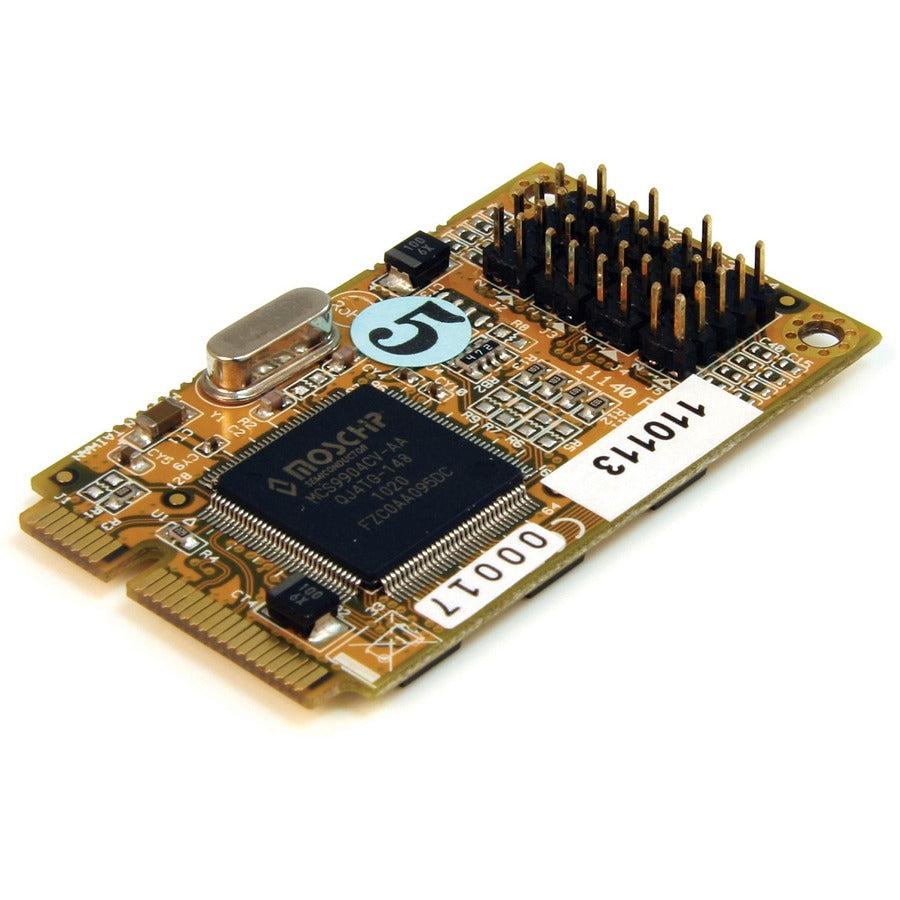

4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
StarTech.com 4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART. Host interface: Mini PCI Express, Output interface: Serial, Serial interface type: RS-232. Product colour: Green. Chipset: MosChip MCS9904CV-AA, FIFO (First In, First Out): 256 B. Width: 10 mm, Depth: 51 mm, Height: 30 mm. Package width: 145 mm, Package depth: 212 mm, Package height: 40 mm
Add Four RS232 Serial Ports to an Embedded System through a mini PCI Express Slot The MPEX4S952 4-Port RS232 Mini PCI Express Serial Card (16650 UART) turns a mini-PCIe slot into four RS232 (DB9) serial ports with data rates up to 921.6 Kbps - a cost-saving solution for adding serial support to embedded systems missing the functionality. A native PCIe single-chip design enables you to take advantage of full PCI Express bus capability, by providing improved speed and reliability while reducing the load applied to the CPU by as much as 48% over conventional "bridge chip" serial cards . Backed by a StarTech.com Lifetime Warranty and free lifetime technical support. The StarTech.com Advantage - The smallest form factor available, for internally adding serial ports to any embedded system - Native single-chip design means up to 48% less load on your CPU which is critical for small embedded PCs that use low power, low MHz CPUs
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
MPEX4S552
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
Product Type
Multiport Serial Adapter
UPC
065030844611
Height
1.2"
Width
0.4"
Weight (Approximate)
5.30 oz
Miscellaneous
Package Contents
4 Port RS232 Mini PCI Express Serial Card w/ 16650 UART
4 x DB9 Ribbon Cable
1 x Driver CD
1 x Instruction Manual
Environmentally Friendly
Yes
Environmental Certification
REACH
Warranty
Limited Warranty
Lifetime
