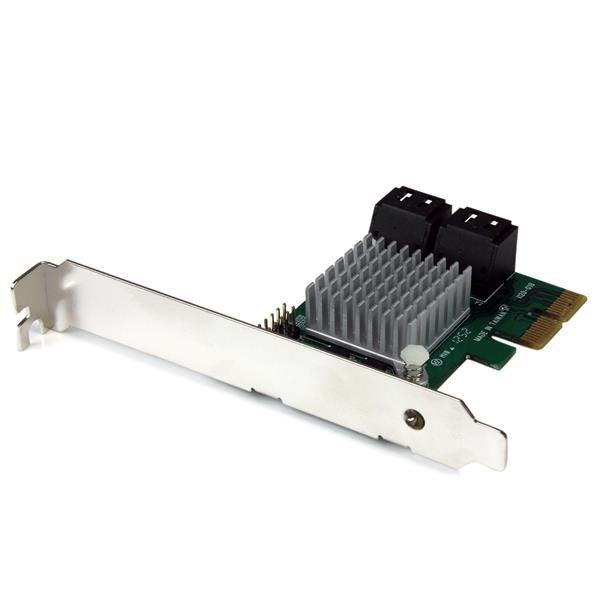

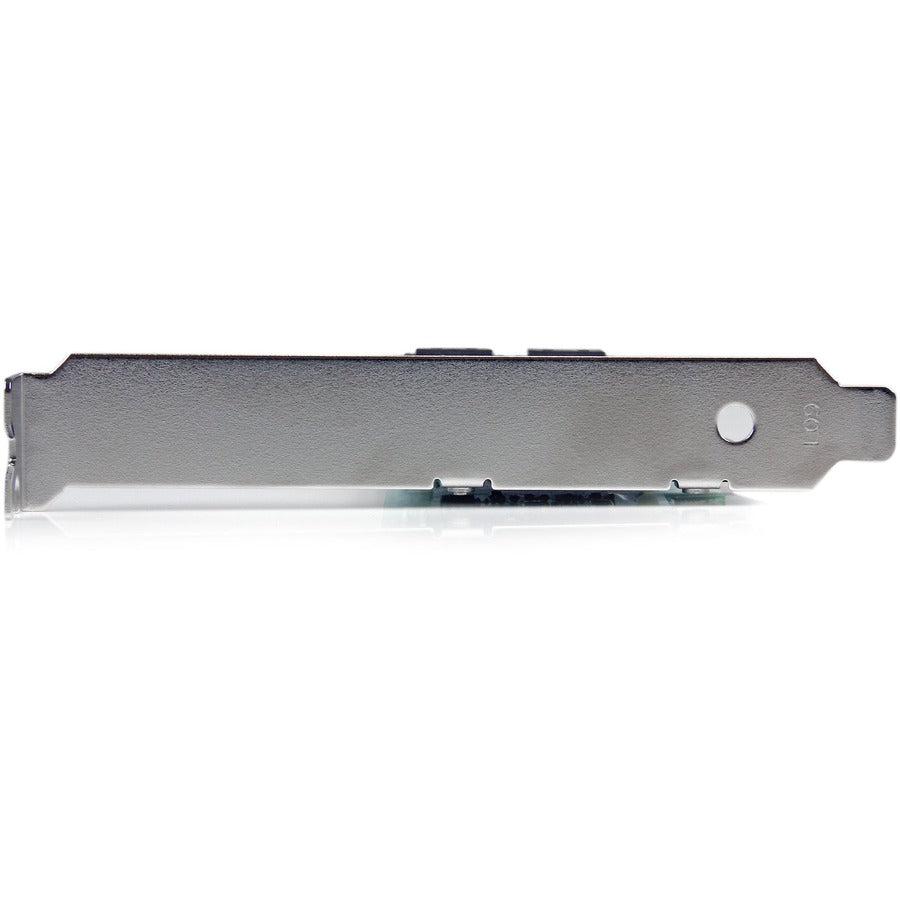

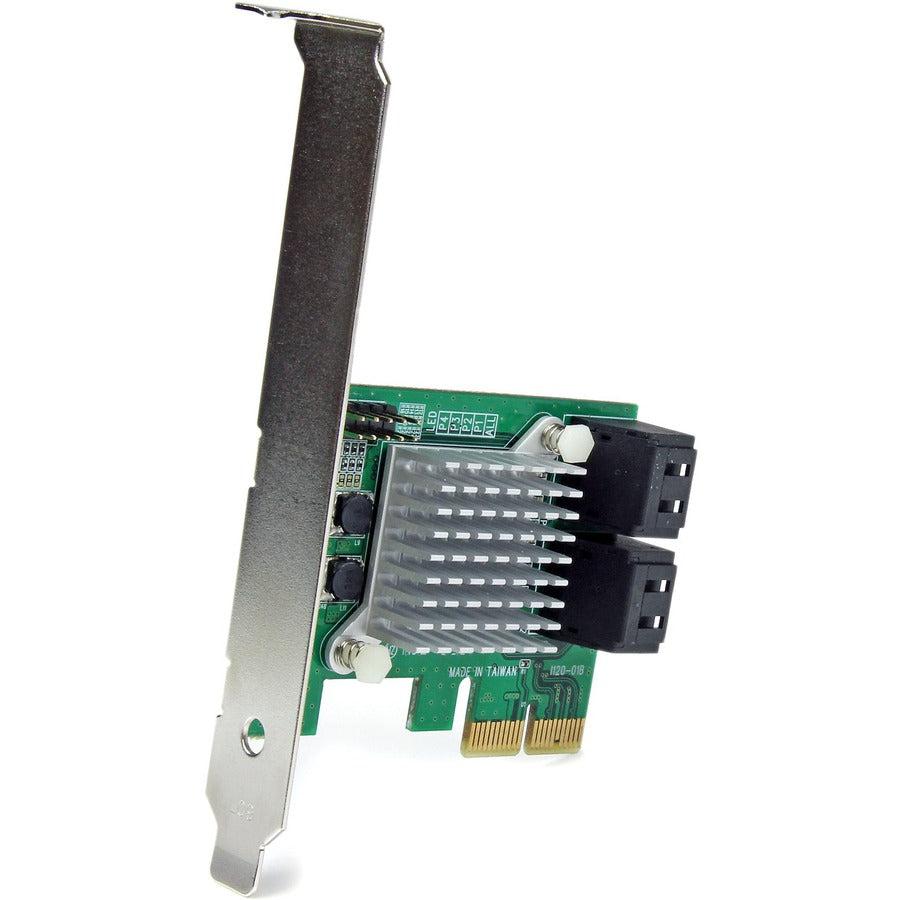

StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering - PCIe SATA 3 Controller Adapter
StarTech.com 4 Port PCI Express 2.0 SATA III 6Gbps RAID Controller Card with HyperDuo SSD Tiering. Supported storage drive interfaces: Serial ATA, Serial ATA III, Host interface: PCI Express. RAID levels: 0,1,10,JBOD, Data transfer rate: 6 Gbit/s, Chipset: Marvell - 88SE9230. Windows operating systems supported: Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise..., Mac operating systems supported: Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High..., Server operating systems supported: Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows.... Width: 120 mm, Depth: 70 mm, Height: 20 mm. PCI Card form factor: Full-height (low-profile)
The PEXSAT34RH 4-Port PCI Express 2.0 SATA Controller Card with HyperDuo adds 4 AHCI SATA III ports to a computer through a PCIe slot (x2), delivering multiple internal 6Gbps connections for high-performance hard drives and Solid State Drives (SSDs).
Featuring HyperDuo technology, the SATA card offers SSD auto-tiering which lets you balance the performance advantages of SSD storage with the cost-effectiveness and large capacity of standard hard drives. By combining SSD and HDD drives into a single volume (up to 3 SSD + 1 HDD), HyperDuo discreetly works in the background to identify and move frequently accessed files to the faster SSD drive(s) for improved data throughput - up to 80% of SSD performance! (Note: The HyperDuo automatic storage tiering feature is compatible with computers that use a BIOS.)
The PCIe SATA controller card supports Port Multiplier (PM), enabling multiple SATA drives to be connected to one port over a single cable, for a total of 7 drives (Up to 4 drives through PM on one port, and a single drive to the remaining 3 ports). Plus, the SATA controller card offers an effective hardware RAID solution, with native RAID (0, 1, 1+0) support.
This PCIe SATA 6gbps card is backed by a 2-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage - Leverage SSD performance and standard HDD capacity with HyperDuo technology - Maximize system capability with SATA III connection speeds - Fit any standard or low profile chassis with included brackets
General Information
Manufacturer
StarTech.com
Manufacturer Part Number
PEXSAT34RH
Manufacturer Website Address
http://www.startech.com
Brand Name
StarTech.com
Product Name
4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
Product Type
SATA Controller
UPC
065030849951
Height
0.8"
Width
4.7"
Weight (Approximate)
1.70 oz
Miscellaneous
Package Contents
4 Port PCI Express SATA III 6Gbps RAID Controller Card with Heatsink
1 x Low Profile Bracket
1 x Driver CD
1 x Instruction Manual
Environmentally Friendly
Yes
Environmental Certification
WEEE
Warranty
Limited Warranty
2 Year
