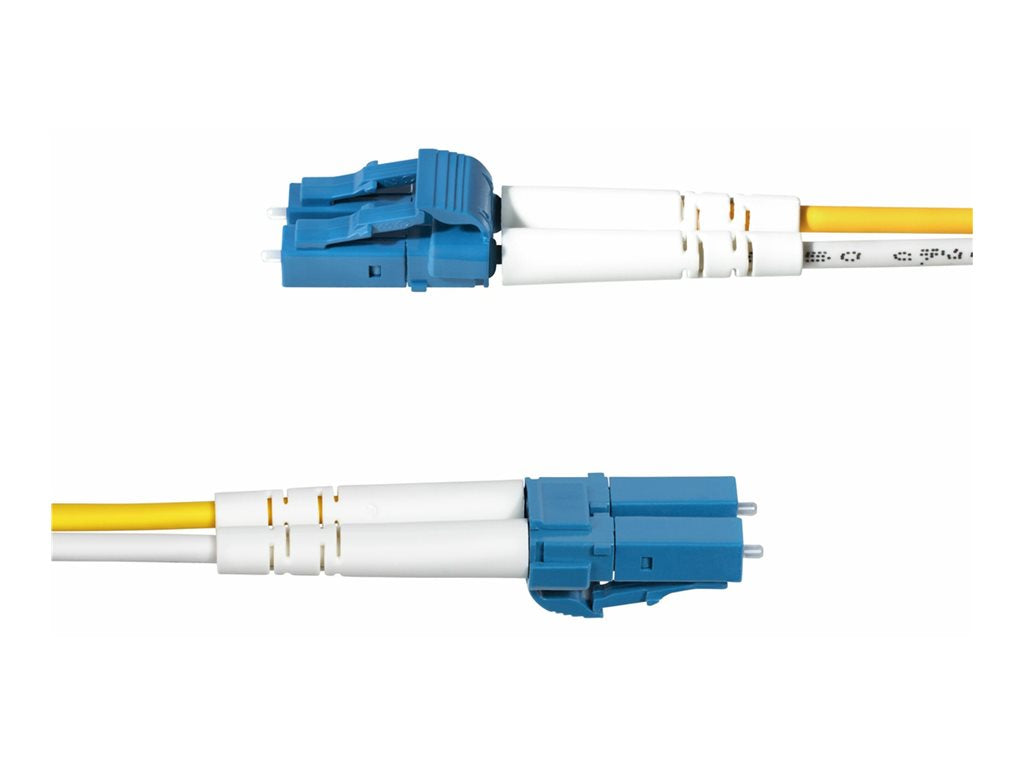

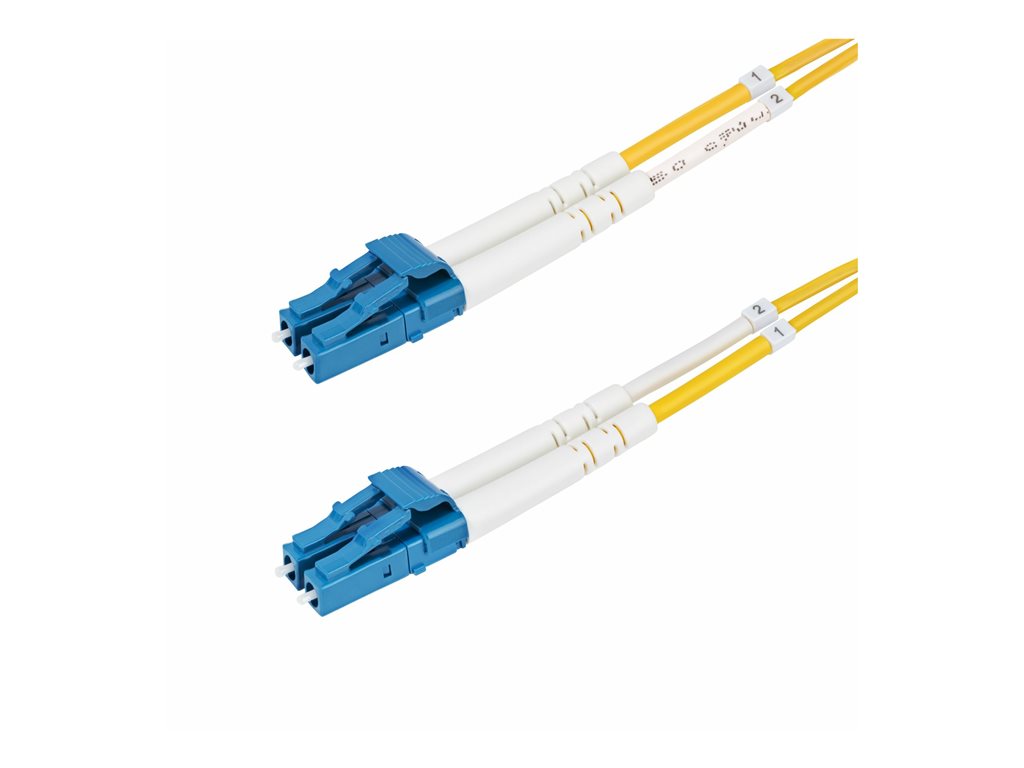

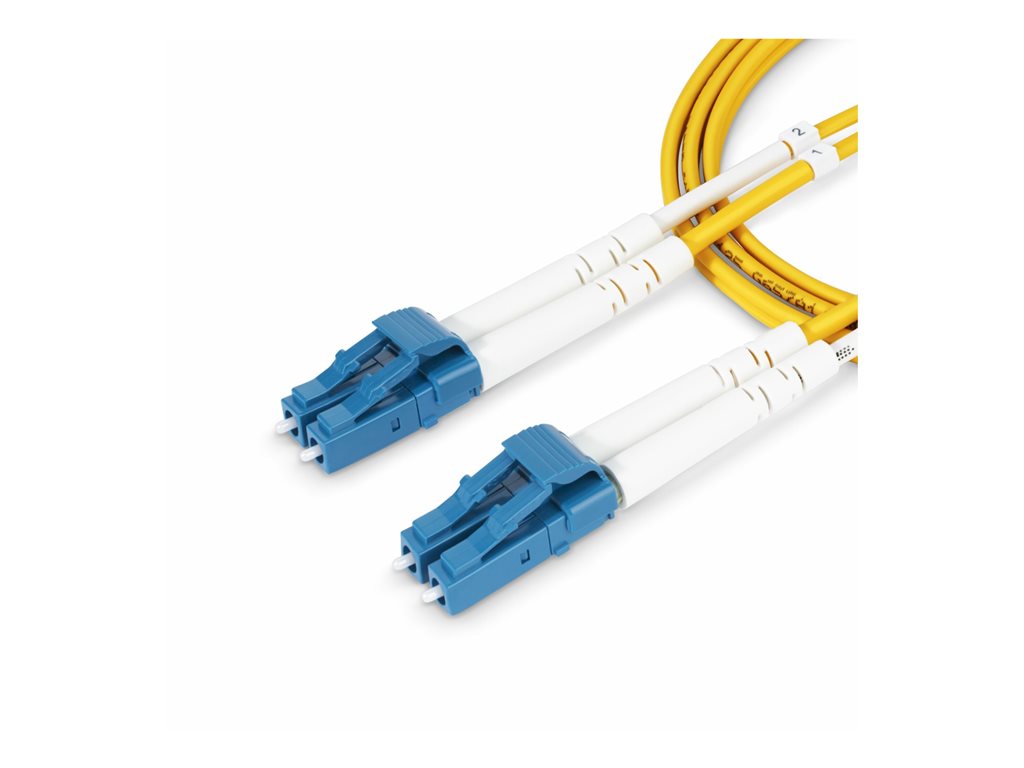

StarTech.com 2m (6.6ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125�m, Laser Optimized, 10G, Bend

StarTech.com 2m (6.6ft) LC to LC (UPC) OS2 Single Mode Duplex Fiber Optic Cable, 9/125�m, Laser Optimized, 10G, Bend Insensitive, Low Insertion Loss - LSZH Fiber Patch Cord (SMDOS2LCLC2M) - Patch cable - LC/UPC single-mode (M) to LC/UPC single-mode (M) - 2 m - 0.1 in - fiber optic - duplex - 9 / 125 micron - OS1/OS2 - halogen-free, passive - yellow

• OS2 FIBER CABLE: Single Mode OS2 Fiber Cable is immune to EMI and optimized for 100Gbps networks; Coarse Wavelength Division Multiplexing (CWDM) enables extended 1260-1625nm wavelength support for greater channel isolation over long distances
• QUALITY CONSTRUCTION: LC/LC-UPC ends for improved return loss over PC polish; Numbered and color-coded connectors to indicate polarity; Bend Insensitive fiber core housed in Aramid-reinforced jacket for a loaded bend radius of 10mm
• SAFETY AND RELIABILITY: Individually tested for guaranteed performance; Test report included; LSZH jacket emits low toxic fumes if combusted; Safe for enclosed/poorly ventilated spaces; Attenuation value under 0.35dB/km outperforms industry standards
• COMPATIBILITY: Single Mode Fiber Patch Cord supports 100G networks; Backward compatible with OS1; High micro-bend resistance facilitates tight bends in complex installations; Ideal for connecting between servers/switches and data center equipment
• SPECS: 2 meter (6.6 foot); OS2 Single Mode; LC/LC (UPC) Duplex; 100Gbps; 9/125um; 1260-1625nm Laser Optimized; Insertion Loss: ≤0.3dB; Return Loss: ≥55dB; Cable OD: 2mm; Bend Radius: 10mm (0.39in) loaded/unloaded

OS2 LC/LC Single Mode Duplex Fiber Optic Patch cable facilitates reliable connectivity across 100G networks. It supports Coarse Wavelength Division Multiplexing (CWDM) across an extended wavelength range of 1260-1625nm, enhancing signal quality and performance capacity over OS1 cables. The bend-insensitive fiber and molded strain reliefs support cable runs requiring micro/macro bends while maintaining low attenuation. The OS2 patch cable is ideal for 1260-1625nm laser-optimized sources. Backward compatible with 9/125 fiber equipment, ensuring a reliable connection with legacy LANs. Housed in a Low-Smoke Zero-Halogen (LSZH) flame retardant jacket, this SM duplex fiber optic cable ensures minimal smoke, toxicity, and corrosion when exposed to extreme sources of heat or in the event of a fire. Capable of operating in a wide range of environments, including industrial settings, central offices, and schools, as well as residential settings where building codes are a consideration. Each OS2 fiber cable is also individually tested for for insertion loss and attenuation that meets or exceeds the ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards, for guaranteed compatibility and 100% reliability. This OS2 Fiber Patch Cable is backed for life, including free lifetime multi-lingual technical assistance.

• Compatibility
  This 9/125µm Single Mode fiber cable supports 1260-1625nm laser-optimized sources and is ideal for critical connections between servers, switches, and data center equipment. It is backward compatible with OS1 networks, ensuring a reliable connection in legacy fiber environments.
• Engineered for Optimal Performance
  Precision-manufactured ceramic ferrules ensure accurate fiber alignment for an insertion loss below 0.3dB. Ultra Physical Contact (UPC)-polished LC to LC fiber ends greatly improve return loss characteristics over older PC polishing techniques. The Bend Insensitive fiber core is surrounded by a layer of low refractive index material. This material reduces the amount of light that can escape the fiber cable by reflecting the light back into the fiber. The OS2 fiber patch cord is engineered for low attenuation and performance that exceeds ITU-T G652.D/G657.A1 and IEC60703-2-50 type B1.3/B6.a1 industry standards.
• LSZH Cable Jacket
  Housed in a Low-Smoke Zero-Halogen (LSZH) flame-retardant jacket, the OS2 fiber cable emits low smoke and toxic fumes when exposed to extreme heat or in the event of a fire. This enables safer cable installations in areas with poor ventilation including some industrial settings, self-contained environments such as trains and aircraft, as well as residential settings where compliance with building codes must be considered. Each OS2 fiber cable is individually tested for insertion loss performance and includes a test report, for guaranteed compatibility and 100% reliability.

What's in the box:

• 1 2m OS2 Single Mode Fiber Optic Cable - LC to LC
• 1 Test Report
